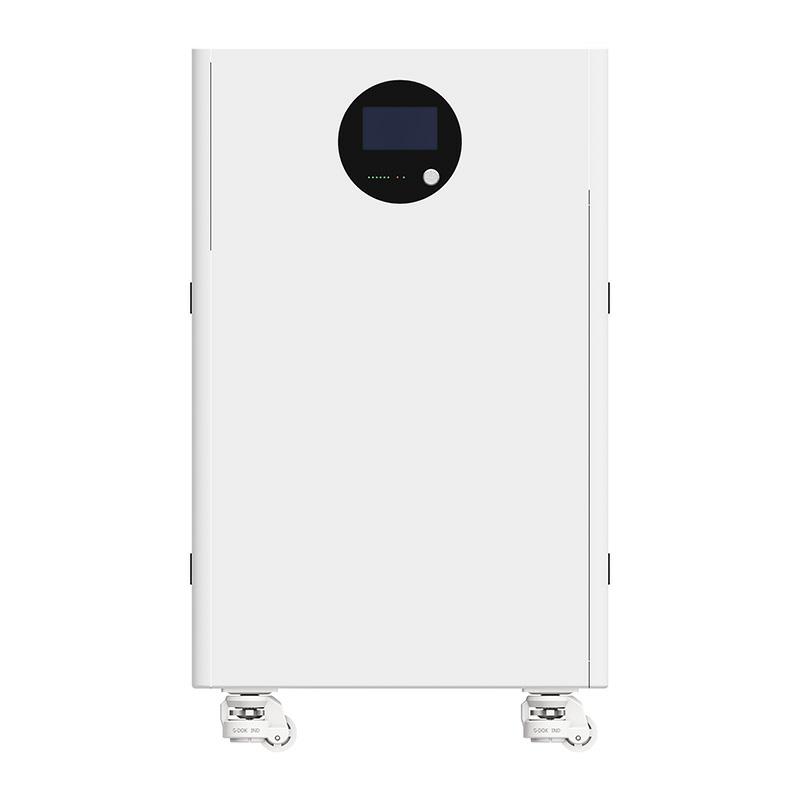

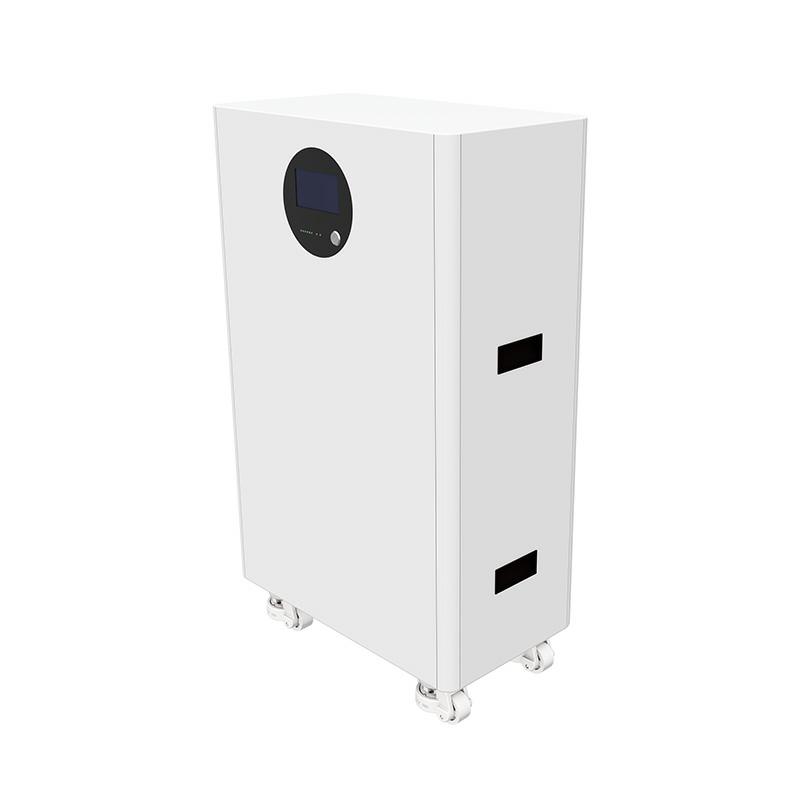

Home Battery Backup System 16kWh Solar Battery LiFePO4 battery
1.Superior Grade-A LiFePO4 Battery & Longevity
Our solar battery storage system is built around a superior Grade-A LiFePO4 battery pack. These premium lithium iron phosphate cells are the gold standard for safety and reliability, giving you peace of mind.
Engineered for extreme longevity, it delivers an exceptional cycle life of over 6000 times (at 80% DOD, 25°C), making it a durable, long-term investment in your energy freedom.
2.16kWh High-Capacity Power house
Unlock a massive 16kWh of energy with this LiFePO4 battery 51.2V 314Ah powerhouse. As a complete 16kWh solar battery, it’s designed to meet significant energy demands.
The solar power battery supports a maximum continuous discharge current of 200A and a maximum charging current of 100A, delivering up to 10,240W of power to effortlessly run heavy-duty appliances and essential equipment.
3.Advanced 200A BMS Protection
The heart of this unit is an advanced 200A Battery Management System (BMS).
This smart home battery backup system actively protects your investment by providing comprehensive safety against overcharging, over-discharging, and over-current, while managing performance within a wide operational temperature range.
4.Massively Expandable for Future Needs

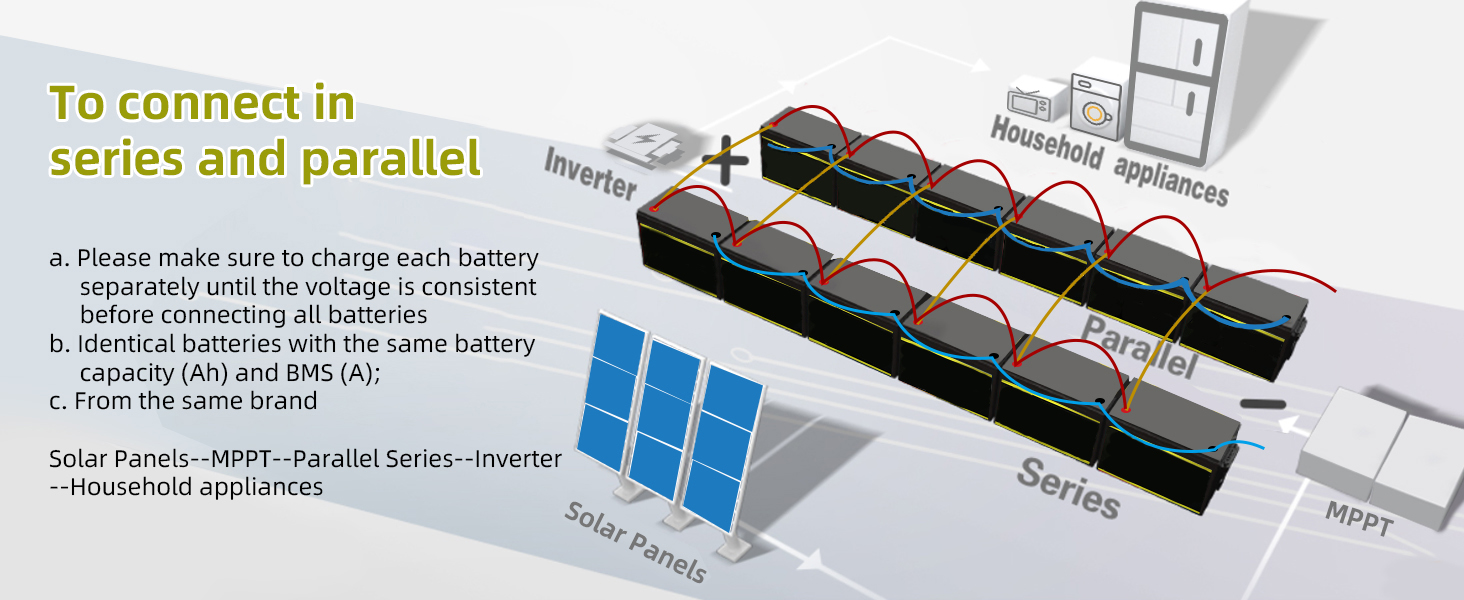

Future-proof your power. Whether you're starting small or building a powerful off-grid solar system, our smart modular design allows you to connect up to 15 LiFePO4 battery packs in parallel.
This allows you to scale your total capacity to an incredible 240kWh, ensuring the solar power battery system grows seamlessly with your energy requirements.
5.Seamless Integration & Monitoring
Designed for maximum compatibility, this solar battery integrates with most mainstream inverters on the market. With built-in RS232, RS485, and CAN communication ports, setup is simplified.
The clear front-panel LCD display allows you to monitor your system's operating status in real time.
6.Key Specifications at a Glance
Product Model: ARCV 16K-WM
Rated Energy: 16 kWh
Rated Voltage: 51.2V
Max Charging Current: 100A
Max Discharge Current: 200A
IP Protection: IP21 (For indoor installation)
Dimensions (L×W×H): 550×290×850 mm
Net Weight: 133 Kg
7.Applications & Use Cases
This home battery backup system excels in a variety of scenarios, making it the perfect solution for daily solar battery storage to reduce your electricity bills, provide uninterrupted power during grid outages, or build a resilient power system for a workshop or remote cabin.
8.Dedicated Customer Support
This solar battery product's size and weight require specialized shipping.
Please feel free to contact our expert customer service team directly with any pre-sales questions or for support after your purchase. We are here to ensure a smooth and confident buying experience.
Parameters
BATTERY FEATURES
●Original GradeAlithium iron phosphate battery cell has high safety and reliability
●The charging and discharging efficiency is high, and the number of cycles is more than 6000 times
●Compatible with most inverters on the market
●Supporting RS485 and CAN communication
●Modular design, can be expanded at any time to increase the energy of the system Supporting up to 15 batteries in parallel
●ON/OFF switch control output
●The LCD display monitors the operating status in real time
| Product Description | |
| Product Model | M16S314BL-F |
| Cells In Series | 16S |
| Rated Energy (KWh) | 16 |
| Rated Voltage (V) | 51.2 |
| Charging Voltage (V) | 58.4 |
| Discharge Cut-off Voltage (V) | 42 |
| Standard Charge Current (A) | 50 |
| Maximum Charging Current (A) | 100 |
| Maximum Discharge Current (A) | 200 |
| Features | |
| Cycle Life | ≥ 6000 times @ 80% DOD, 25 °C |
| Methods Of Communication | RS232/RS485/CAN |
| Charging Temperature | 0~60℃ |
| Discharge Temperature | -10~65℃ |
| How It Is Displayed | LCD display |
| IP Protection | IP 21 |
| Conventional | |
| Product Dimensions (L×W×Hmm) | 550×290×850 |
| Net Weight (Kg) | 132.4 |
| Packing Dimensions (L×W×Hmm) | 950×705×615 |
| Gross Weight (Kg) | 153 |
PRODUCTION LINES
OUR EXHIBITION
We are a leading innovator and manufacturer in lithium battery technology, dedicated to engineering and manufacturing high-quality LiFePO4 solar batteries and power systems. Our core business involves the complete lifecycle of product development, from initial design to final production of dependable lithium battery packs. We proudly serve diverse sectors with customized solutions for energy storage, critical backup power systems, and compatible inverters and solar panels.
Based on automated production technology, Arcvolt are able to meet our customers' product needs quickly. However, the exact lead time depends on the quantity and the season you place the order.
Usage scenario: wall-mounted batteries, rack-mounted batteries, and stacked batteries. Voltage: 48V or 51.2V batteries, low/high voltage batteries Application: Residential storage batteries, industrial and commercial energy storage batteries.
While the typical home system uses 2 or 3 batteries, the perfect number for you is a personal choice. It all comes down to what you want to power during a grid outage and for how long. Do you need to run just the essentials or your whole house?
Yes, going completely off-grid is possible, but it's a significant step beyond standard solar with battery backup. A true off-grid system requires a much larger solar array and battery bank to power your home 24/7, making it a substantial investment. You also need a reliable backup source, like a generator, for days without sun. It's important to note that in North Carolina, disconnecting a home from the utility grid can be a complex process.
We accept EXW,FOB,CFR,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Absolutely. Our in-house design team specializes in OEM and ODM projects to bring your brand's vision to life. Simply provide us with your concept, high-resolution logo, and any text or images you'd like to include. We will then create a professional design proof for your final approval before we proceed.
Certifications are a key part of our pre-production checklist. We start by confirming with you which certifications are needed. These requirements are then integrated into the project timeline to ensure completion before shipment, and are formally documented in the signed agreement.
We offer lifetime technical support, with our engineers available 24/7 to provide prompt online assistance.
Yes, most of Arcvolt's inverters are designed to be scalable, meaning your system can grow with your needs. However, it's something that requires planning. Before adding more panels, it's essential to confirm that your current inverter can handle the additional power. We always recommend discussing your future plans with a professional to ensure your initial system is future-ready.
It depends on whether you have batteries. For Solar + Battery systems: A hybrid inverter is essential. It seamlessly manages power from panels and batteries in a single unit. For Solar-Only systems: Traditional inverters (like string or microinverters) are an option. The main advantage of a hybrid inverter is that it eliminates the need for a separate charge controller, making for a cleaner and more efficient installation.
Selecting the right inverter is one of the most important decisions you'll make for your solar project. While technical specifications matter, the long-term value comes from the manufacturer. Arcvolt advise customers to look beyond the data sheet and assess the company on these five critical points: their warranty, quality control standards, customer service responsiveness, installation support, and competitive pricing.
Generally, you want the inverter's size to match your solar array's power output. So, if you're installing a 5,000-watt solar system, you'll need an inverter of at least 5,000 watts to handle the load.
Yes, samples are available upon request as part of the qualification process for bulk orders. Please reach out to a member of our customer service team to discuss your specific requirements and they will assist you with the next steps.
Think of it as your personal energy bank. During the day, it saves up all the extra, unused power your solar panels generate. Then, you can draw from that stored energy whenever you need it—at night, during a power outage, or to avoid high-cost peak hours. For homeowners, this means energy independence and peace of mind. For businesses, it's a powerful tool to slash electricity bills.
Smart inverters are central to a system's reliability. Our inverter provide a constant stream of performance data, giving you a real-time view of your entire solar array. If a problem arises, the inverter's diagnostic tools can pinpoint the exact issue, which significantly speeds up repairs. This intelligent monitoring is key to preventing small problems from becoming big ones and guarantees the consistent, reliable operation you expect.
MPPT is a crucial technology that ensures you're not wasting sunlight. Because sun conditions are always changing, there is always a single, optimal point where your solar panels operate most efficiently. MPPT is the brain that constantly scans and adjusts the system to find and stay locked onto that "maximum power point." This guarantees you are harvesting the most energy possible from your panels at any given moment.
It's a question of priorities, and the logical first step is always generation. You have to make power before you can store it. Solar panels directly reduce your utility bills by producing electricity. Batteries give you control over when you use the excess electricity you've already made. We help our customers design a system that maximizes their solar panel array first, as this delivers the biggest and fastest return on investment.
A grid-tied inverter is the standard type used to reduce your electricity bills with solar. It safely connects your solar system to the utility's grid, allowing you to seamlessly feed any surplus power you produce back to the utility. In return, you receive credits on your bill for that energy, a process known as net metering. For safety, these inverters automatically shut down during a power outage.
The exact amount of power you generate is unique to your home and depends on your system's size, your roof's orientation, and how much direct sun you get. However, to give you a real-world idea, our typical 6kW home system can produce around 30kWh of electricity on a clear, sunny day. For most households, that's more than enough to cover all of your energy needs for a full 24 hours.
