There are two parts to your industrial and commercial electricity bill
Save with energy storage
Guaranteed Savings with a Commercial Energy Storage System

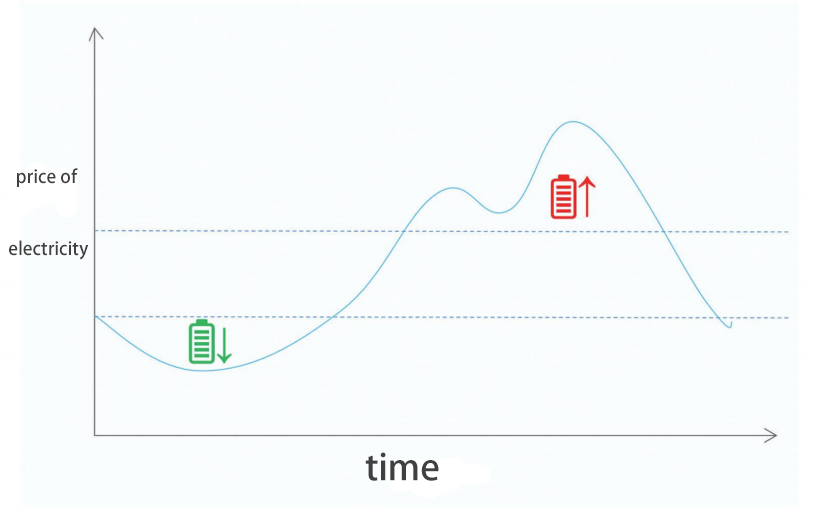

Slash Peak Demand Charges with Energy Storage
Reduce Base Energy Charges with Solar
Energy Storage + Solar = Triple Benefits
By combining industrial and commercial energy storage systems with solar energy, companies both save energy and reduce peak demand, and receive triple incentives.
PRODUCT OVERVIEW

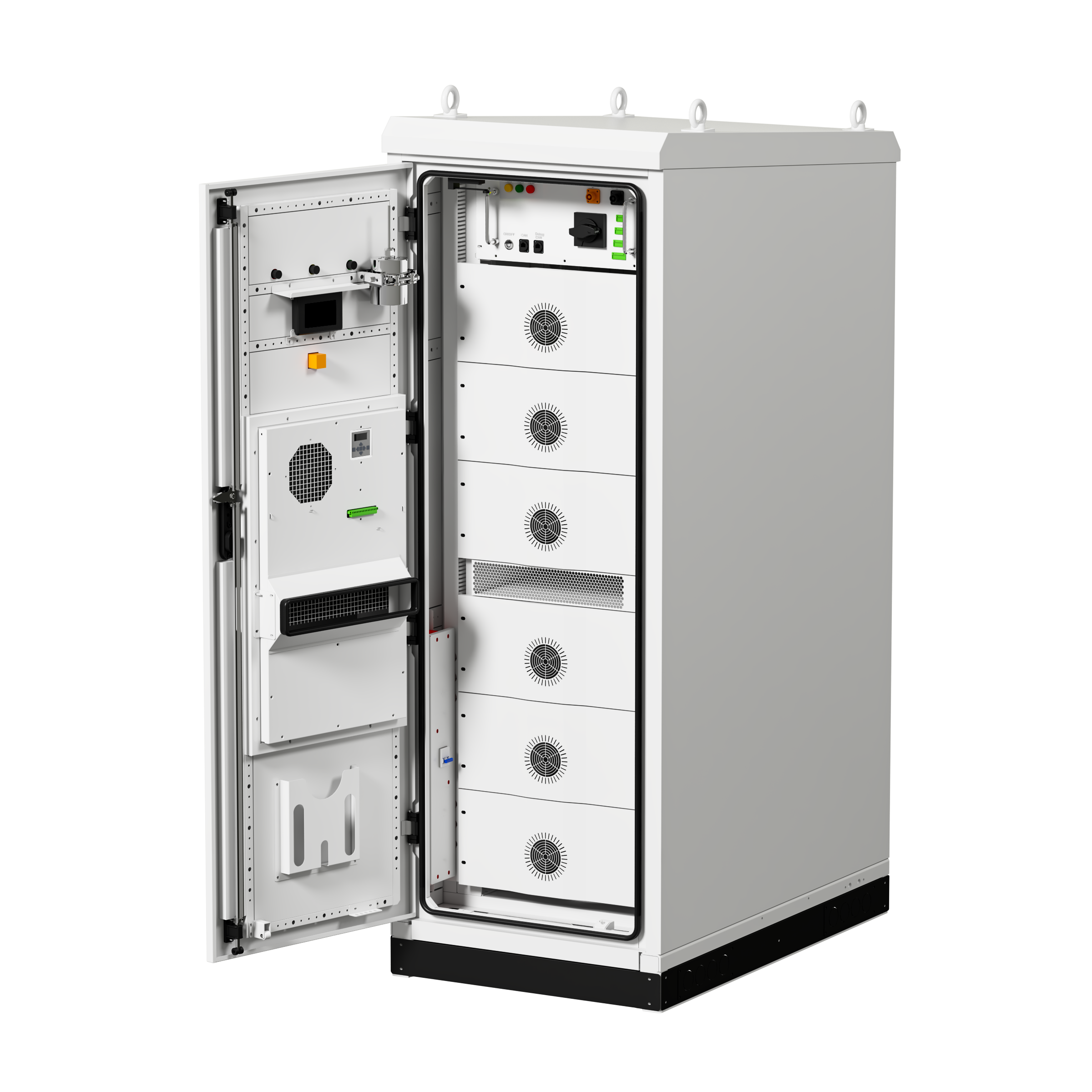

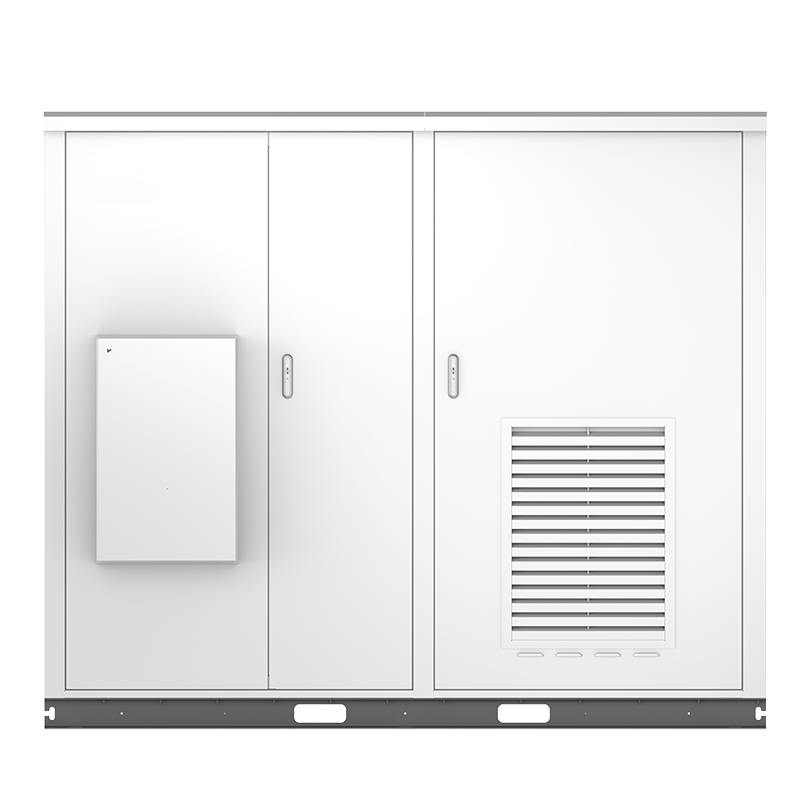

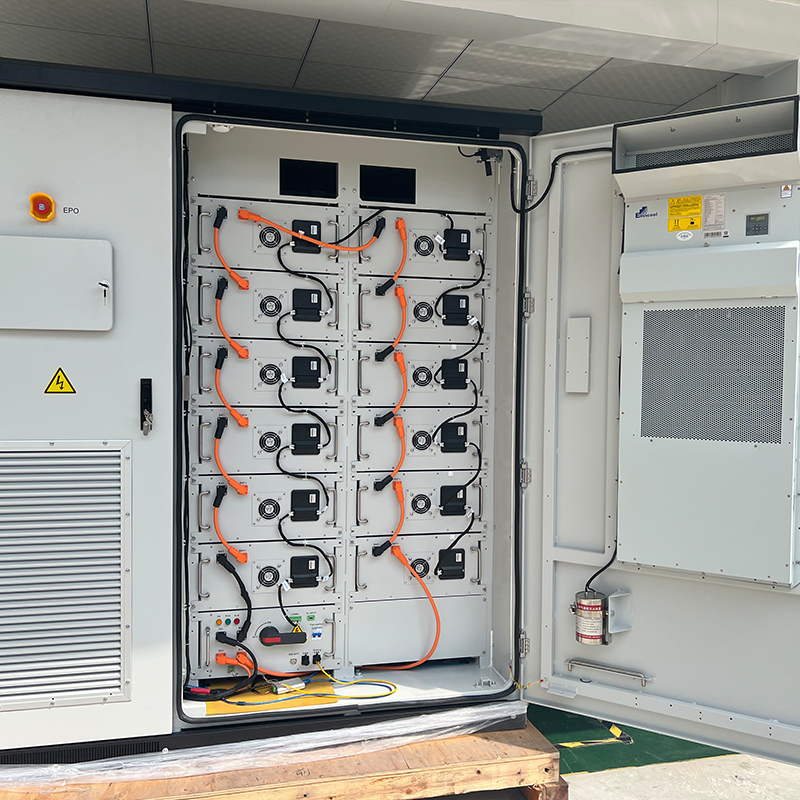

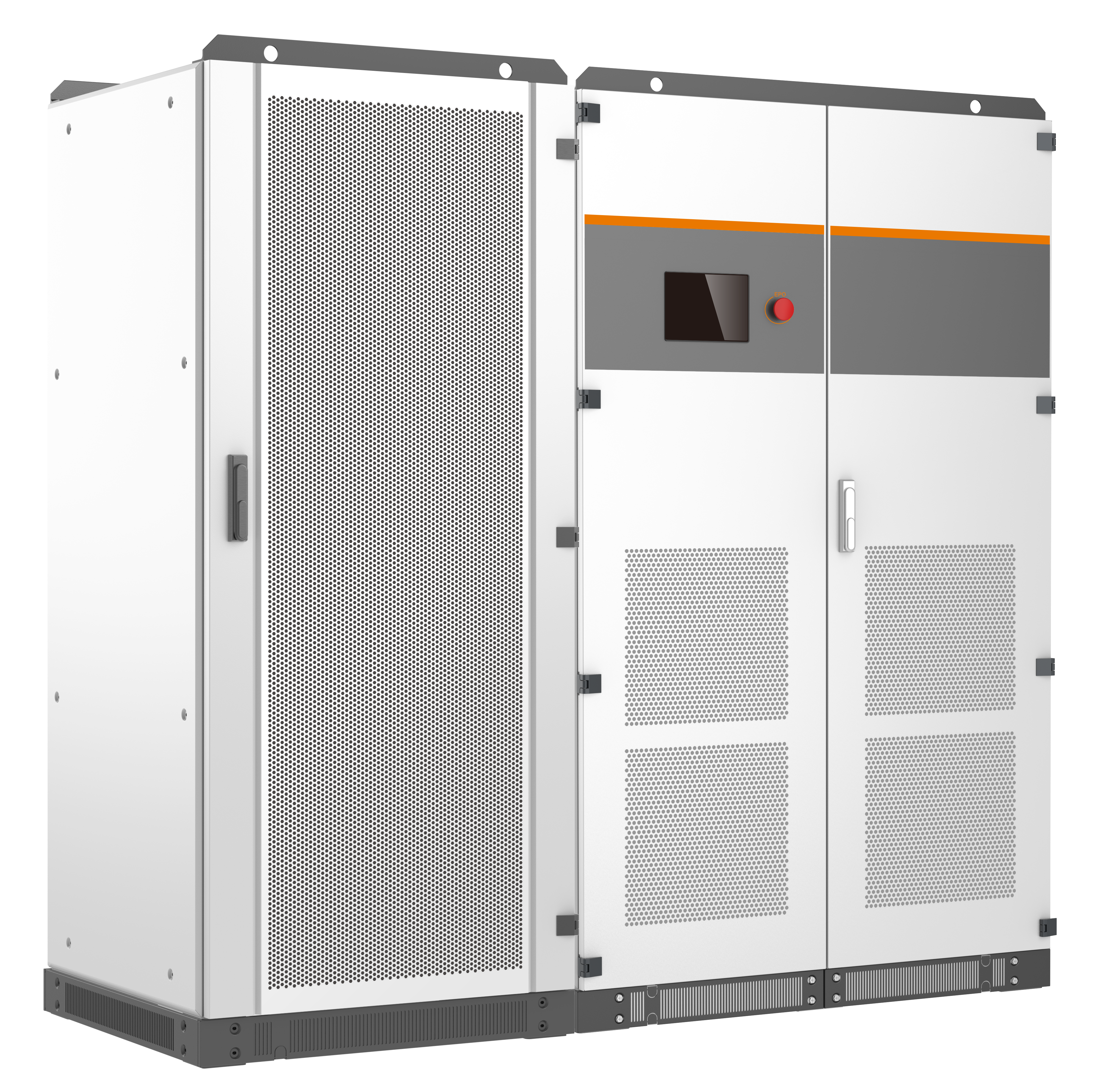

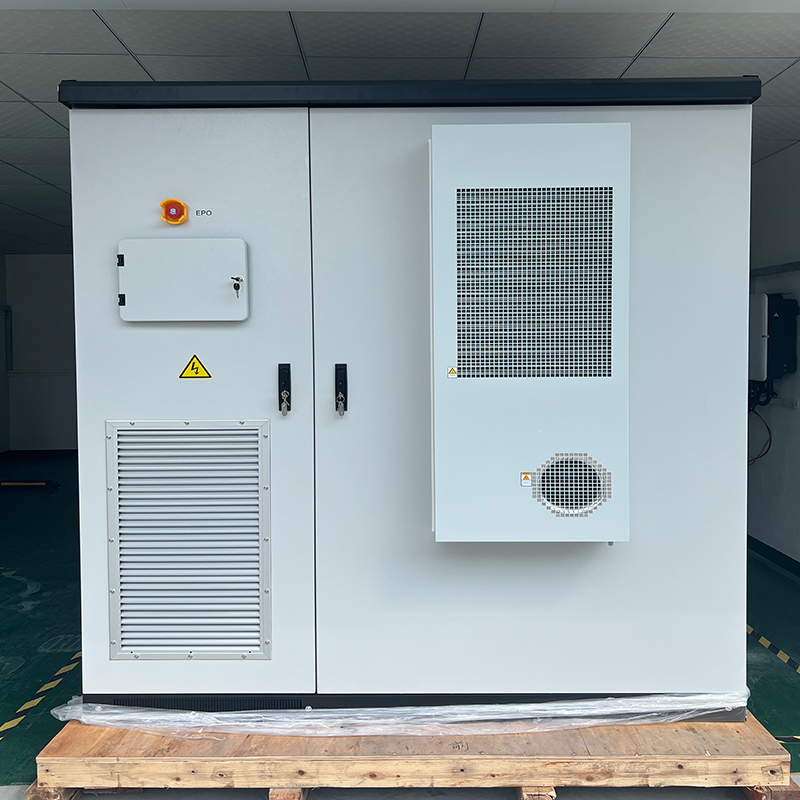

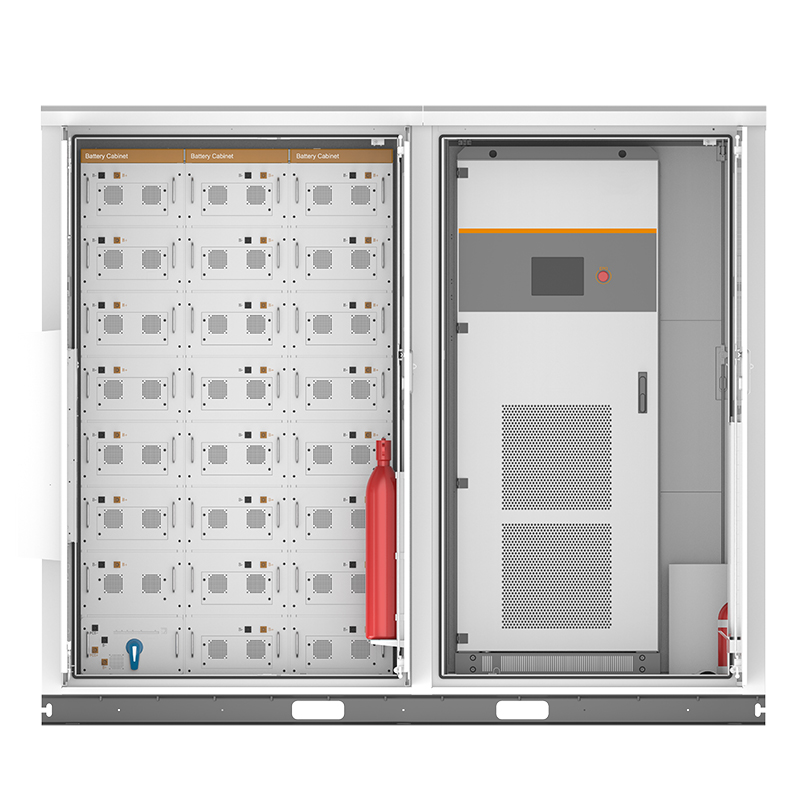

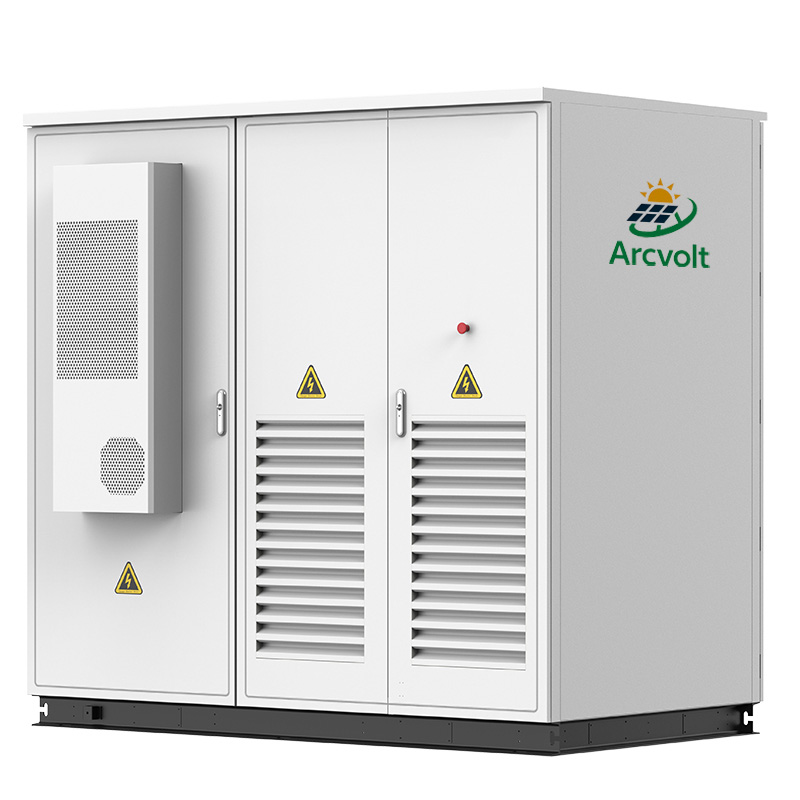

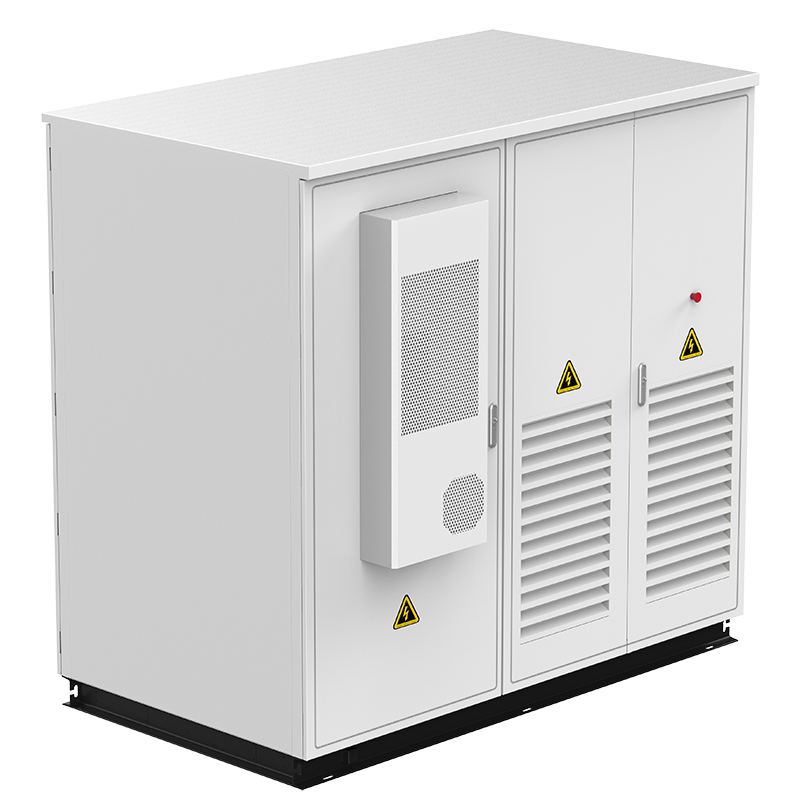

The ArcVolty Outdoor Cabinet ESS is a high-performance, fully integrated commercial energy storage system (ESS) designed for industrial sites, commercial buildings, telecom stations, micro-grids, and solar-plus-storage applications. Built with LFP battery modules, a high-efficiency PCS, intelligent EMS, and advanced safety features, this outdoor battery cabinet provides reliable backup power, peak shaving, load shifting, and renewable energy optimization.
With rated power options of 50kW and 100kW and usable energy up to 215kWh, the system supports wide PV input (up to 1000V), fast on-grid/off-grid switching, IP54 outdoor protection, and high-precision controls for stable operation in harsh environments. Its modular architecture makes it an ideal commercial ESS and BESS solution for outdoor installations requiring long-life stability, low maintenance, and high energy efficiency.
KEY FEATURES
High Power Output: 50kW / 100kW models with 400V rated voltage and pure sine wave output.
Wide PV Compatibility: Max PV input voltage 1000V, MPPT 250–850V, supports buck-boost mode and solar integration.
Long-life LFP Battery: 3.2V/280Ah LFP cells, ≥ 5,000 cycles, 100kWh–215kWh usable energy options.
Smart Grid Interaction: Supports on-grid/off-grid switching, PF adjustable (0.8 leading ~ 0.8 lagging).
Safe & Reliable: Built-in aerosol/NOVEC1230 fire extinguishing system, IP54 outdoor cabinet.
Intelligent Cooling: Adaptive air-cooling for stable performance from 0℃ to +45℃.
Low THDi/THDu: THDi <3%, THDu ≤1% linear load for clean and stable output.
Comprehensive EMS: Touch LCD + cloud platform, supports RS485/TCP-IP monitoring.
Flexible Installation: Outdoor cabinet design suitable for 3000m altitude and 0–95% RH environments.
Applications: Commercial buildings, factories, EV charging stations, microgrids, telecom sites, rural electrification.
Technical Specifications
| AC data | ||
| Model | ESSA0050B-0100 | ESSA0100B-0215 |
| Rated power (kW) | 50 | 100 |
| Rated voltage (V) | 400 | |
| Rated current (A) | 72 | 144 |
| Voltage range (V) | 320V-460V | |
| Rated frequency | 50/60Hz | |
| Frequency Range | 45-55/55-65Hz | |
| THDi(on-grid) | <3% | |
| THDu (off-grid) | ≤ 1% linear; ≤ 5% non-linear | |
| Power factor | 1 (0.8 leading ~ 0.8 laging can be set) | |
| Overload capacity | 110% Long term | |
| AC output | 3W+N+PE | |
| Isolation transformer | 200/400 | 270/400 |
| On -grid off-grid switching | Support | |
| PV data | ||
| Max.PV input voltage (V) | 1000 | |
| Max. PV power (kW) | 60/120 | 120/180/240 |
| MPPT operating voltage range (V) | 250~850 | |
| MPPT full load voltage range (V) | 450~850 | |
| Buck-boost mode | Support | |
| Battery data | ||
| Cell type | 3.2V/280Ah/1C,LFP | 3.2V/280Ah/1C,LFP |
| Nominal voltage(V) | 358.4V，1P112S | 768V，1P240S |
| Nominal energy (kWh) | 100.352 | 215.04 |
| Working voltage range (V) | 319.2~397.6 | 672~850 |
| Max. charge and discharge rate | 0.5C@25℃ | 0.5C@25℃ |
| Cycles | ≥5,000 | ≥5,000 |
| System data | ||
| Dimensions W *D *H (mm) | 1,770×1,510×2,270 | 2,450×1,550×2,400 |
| Net weight (kg) | 2400 | 3900 |
| Operating temperature (℃) | 0 ～ +45 | |
| Relative humidity | 0 ~95%（non-condensing） | |
| Ingress protection | IP54 | |
| Noise emission (dB) | <75 | |
| Operating altitude | 3,000m | |
| Cooling | Intelligent air cooling | |
| fire extinguishing system | Aerosols/NOVEC1230 | |
| Display | Touch LCD display+cloud platform | |
| EMS communication | RS485，TCP/IP | |
FAQs
It is an all-in-one outdoor battery energy storage system integrating PCS, LFP batteries, EMS, fire suppression, and cooling inside a weather-proof cabinet.
Yes. It supports up to 1000V PV input, multiple MPPT ranges, and can be used for solar self-consumption, peak shaving, and backup.
The system uses LFP (LiFePO4) cells, known for safety, long cycle life, and high thermal stability.
Absolutely. The cabinet is rated IP54, supports 0–45℃ operation, 0–95% humidity, and altitude up to 3000m.
The LFP battery offers ≥5,000 cycles, ensuring long-term reliability.
Commercial facilities, micro-grids, EV charging stations, industrial backup, telecom base stations, and solar + storage projects.
Yes. It includes RS485 / TCP-IP communication and a cloud-based EMS platform for real-time monitoring and control.
Rapid ROI and Incentives
The value of installing Industrial and commercial energy storage systems in your business
We are a leading innovator and manufacturer in lithium battery technology, dedicated to engineering and manufacturing high-quality LiFePO4 solar batteries and power systems. Our core business involves the complete lifecycle of product development, from initial design to final production of dependable lithium battery packs. We proudly serve diverse sectors with customized solutions for energy storage, critical backup power systems, and compatible inverters and solar panels.
Based on automated production technology, Arcvolt are able to meet our customers' product needs quickly. However, the exact lead time depends on the quantity and the season you place the order.
Usage scenario: wall-mounted batteries, rack-mounted batteries, and stacked batteries. Voltage: 48V or 51.2V batteries, low/high voltage batteries Application: Residential storage batteries, industrial and commercial energy storage batteries.
While the typical home system uses 2 or 3 batteries, the perfect number for you is a personal choice. It all comes down to what you want to power during a grid outage and for how long. Do you need to run just the essentials or your whole house?
Yes, going completely off-grid is possible, but it's a significant step beyond standard solar with battery backup. A true off-grid system requires a much larger solar array and battery bank to power your home 24/7, making it a substantial investment. You also need a reliable backup source, like a generator, for days without sun. It's important to note that in North Carolina, disconnecting a home from the utility grid can be a complex process.
We accept EXW,FOB,CFR,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Absolutely. Our in-house design team specializes in OEM and ODM projects to bring your brand's vision to life. Simply provide us with your concept, high-resolution logo, and any text or images you'd like to include. We will then create a professional design proof for your final approval before we proceed.
Certifications are a key part of our pre-production checklist. We start by confirming with you which certifications are needed. These requirements are then integrated into the project timeline to ensure completion before shipment, and are formally documented in the signed agreement.
We offer lifetime technical support, with our engineers available 24/7 to provide prompt online assistance.
Yes, most of Arcvolt's inverters are designed to be scalable, meaning your system can grow with your needs. However, it's something that requires planning. Before adding more panels, it's essential to confirm that your current inverter can handle the additional power. We always recommend discussing your future plans with a professional to ensure your initial system is future-ready.
It depends on whether you have batteries. For Solar + Battery systems: A hybrid inverter is essential. It seamlessly manages power from panels and batteries in a single unit. For Solar-Only systems: Traditional inverters (like string or microinverters) are an option. The main advantage of a hybrid inverter is that it eliminates the need for a separate charge controller, making for a cleaner and more efficient installation.
Selecting the right inverter is one of the most important decisions you'll make for your solar project. While technical specifications matter, the long-term value comes from the manufacturer. Arcvolt advise customers to look beyond the data sheet and assess the company on these five critical points: their warranty, quality control standards, customer service responsiveness, installation support, and competitive pricing.
Generally, you want the inverter's size to match your solar array's power output. So, if you're installing a 5,000-watt solar system, you'll need an inverter of at least 5,000 watts to handle the load.
Yes, samples are available upon request as part of the qualification process for bulk orders. Please reach out to a member of our customer service team to discuss your specific requirements and they will assist you with the next steps.
Think of it as your personal energy bank. During the day, it saves up all the extra, unused power your solar panels generate. Then, you can draw from that stored energy whenever you need it—at night, during a power outage, or to avoid high-cost peak hours. For homeowners, this means energy independence and peace of mind. For businesses, it's a powerful tool to slash electricity bills.
Smart inverters are central to a system's reliability. Our inverter provide a constant stream of performance data, giving you a real-time view of your entire solar array. If a problem arises, the inverter's diagnostic tools can pinpoint the exact issue, which significantly speeds up repairs. This intelligent monitoring is key to preventing small problems from becoming big ones and guarantees the consistent, reliable operation you expect.
MPPT is a crucial technology that ensures you're not wasting sunlight. Because sun conditions are always changing, there is always a single, optimal point where your solar panels operate most efficiently. MPPT is the brain that constantly scans and adjusts the system to find and stay locked onto that "maximum power point." This guarantees you are harvesting the most energy possible from your panels at any given moment.
It's a question of priorities, and the logical first step is always generation. You have to make power before you can store it. Solar panels directly reduce your utility bills by producing electricity. Batteries give you control over when you use the excess electricity you've already made. We help our customers design a system that maximizes their solar panel array first, as this delivers the biggest and fastest return on investment.
A grid-tied inverter is the standard type used to reduce your electricity bills with solar. It safely connects your solar system to the utility's grid, allowing you to seamlessly feed any surplus power you produce back to the utility. In return, you receive credits on your bill for that energy, a process known as net metering. For safety, these inverters automatically shut down during a power outage.
The exact amount of power you generate is unique to your home and depends on your system's size, your roof's orientation, and how much direct sun you get. However, to give you a real-world idea, our typical 6kW home system can produce around 30kWh of electricity on a clear, sunny day. For most households, that's more than enough to cover all of your energy needs for a full 24 hours.
