Battery Storage System 10.24kWh 48V LiFePO4 battery
1.Battery Storage System: Low Voltage Battery

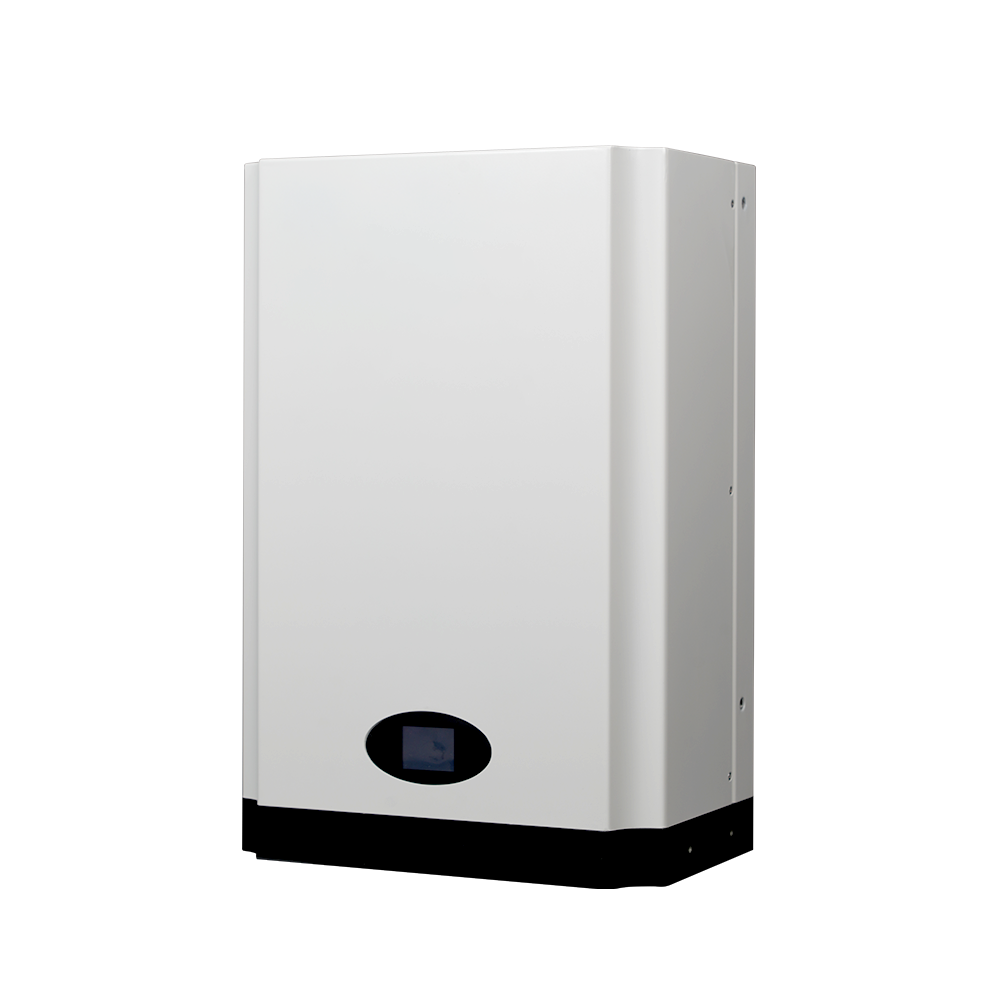

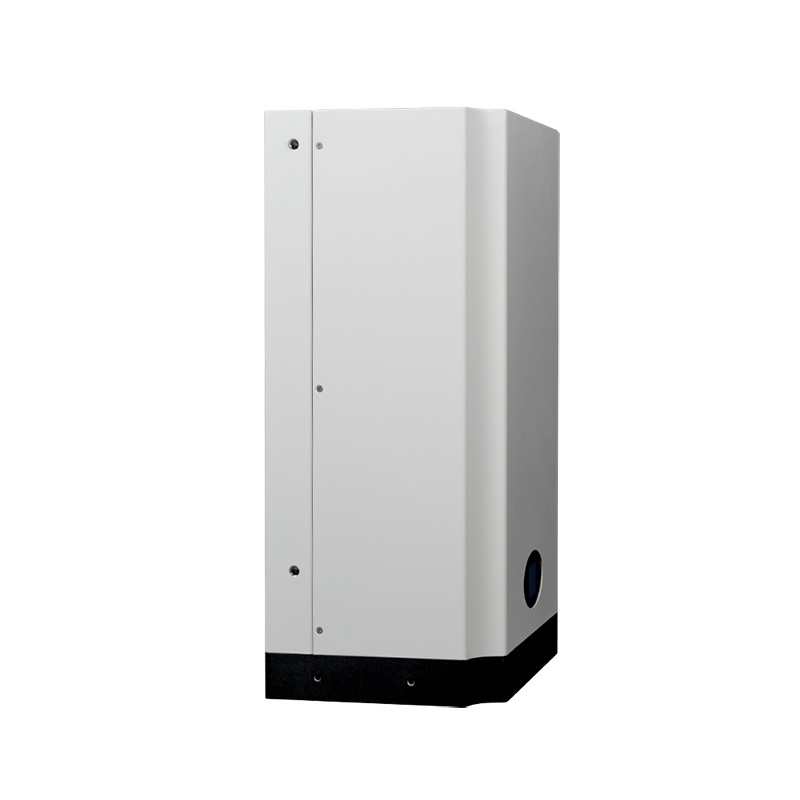

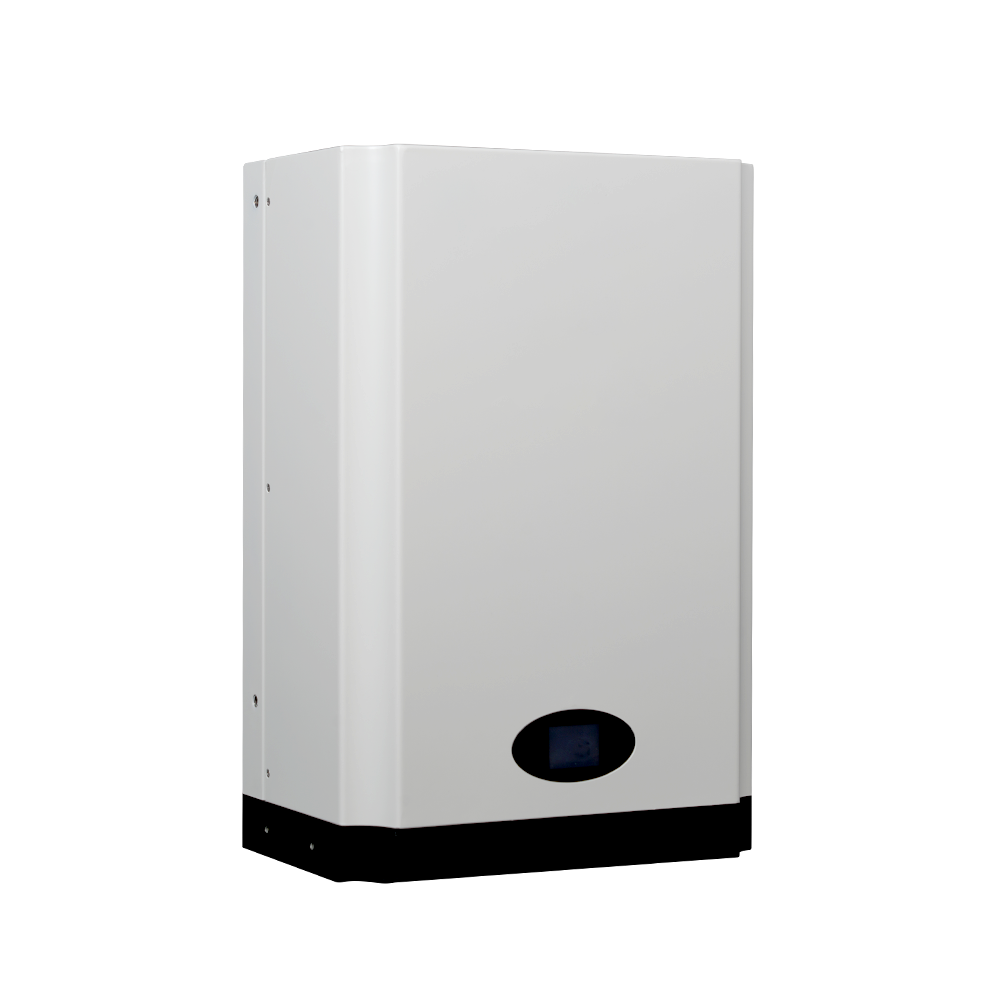

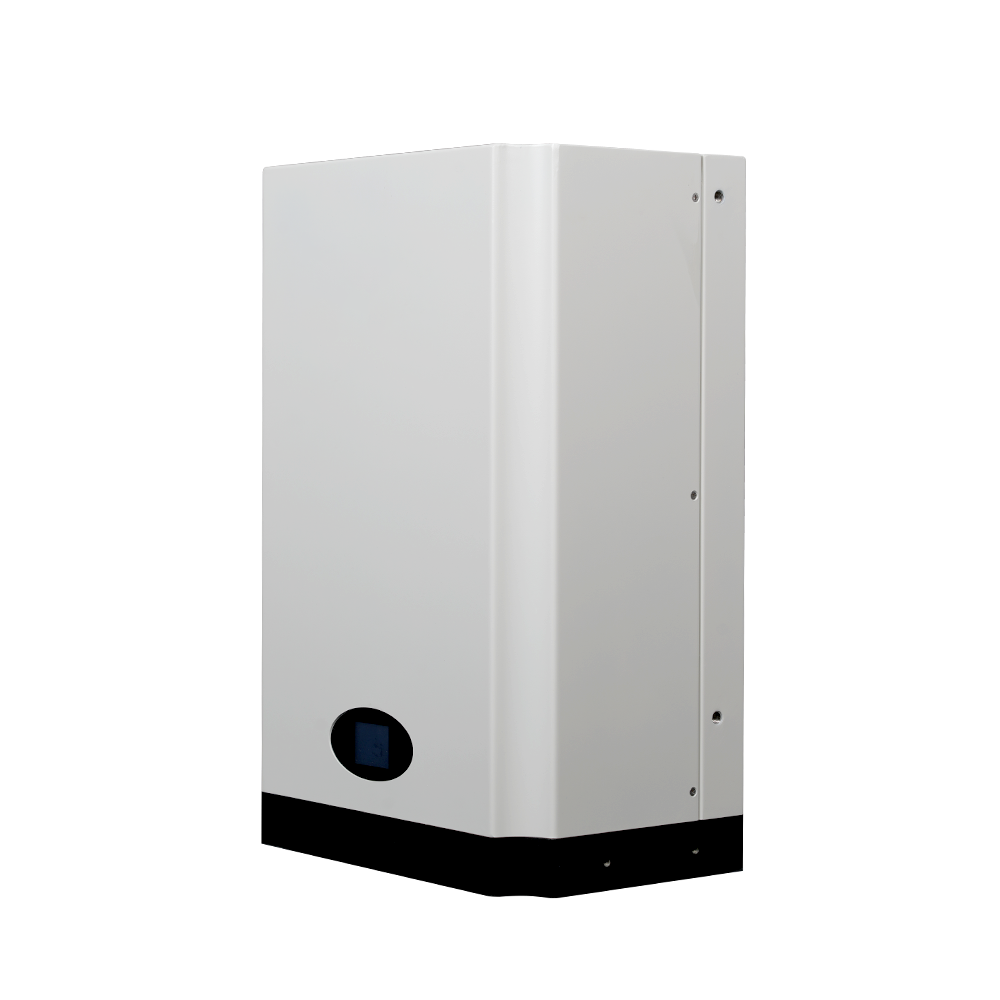

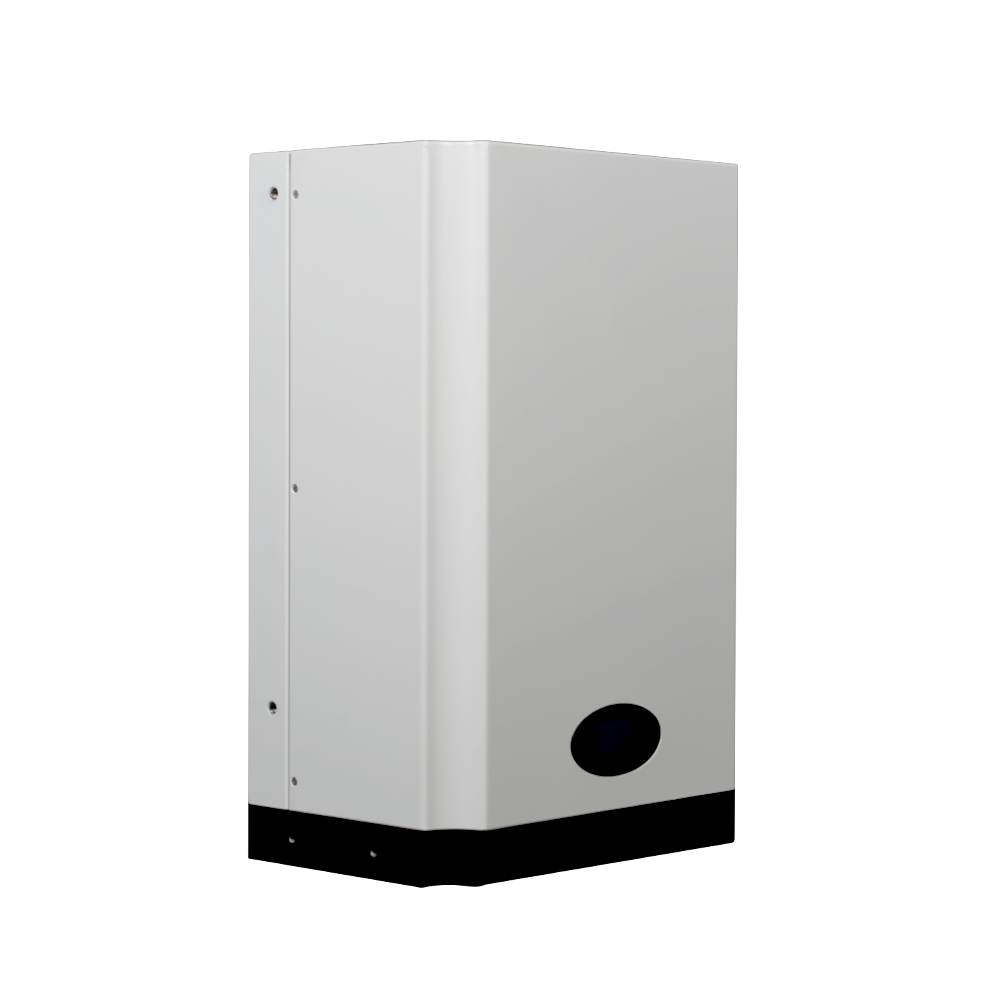

The home solar battery (ARCV 10K-WM) is a premier home solar battery system. This sleek 10.24kWh wall mounted battery is built on a highly reliable 48V LiFePO4 battery, offering exceptional performance and safety. The power bank is integrated with solar panels, providing dependablehome energy storage when needed most.
2.Superior Performance & Power Specifications

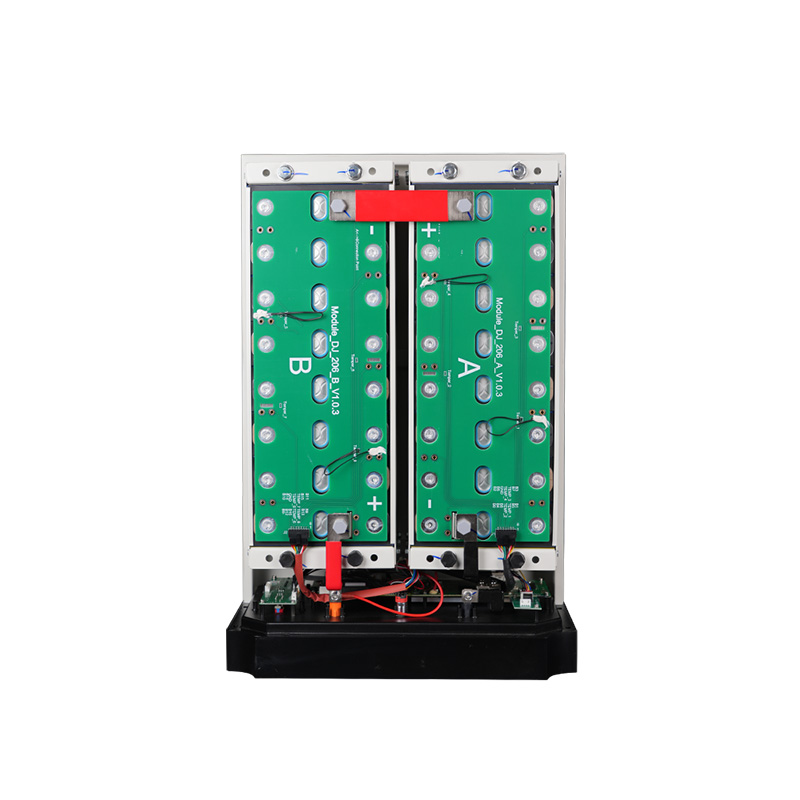

This 48V LiFePO4 Battery provides 10.24kWh of capacity from its 1P8S*2 configured LFP cells and operates at a 51.2V nominal voltage (46.4-57.6V range). As a high-performance Solar Battery, the 10.24kWh wall mounted battery supports 100A continuous charging and 110A continuous discharging, reaching a 6144W maximum power output.
The 48V LiFePO4 battery chemistry guarantees a superior cycle life of over 6000 cycles (80% DOD, 25℃), operating reliably from 0-55℃ with an IP54 protection rating and silent natural cooling.
3.Flexible, Scalable, and Conveniently Integrated

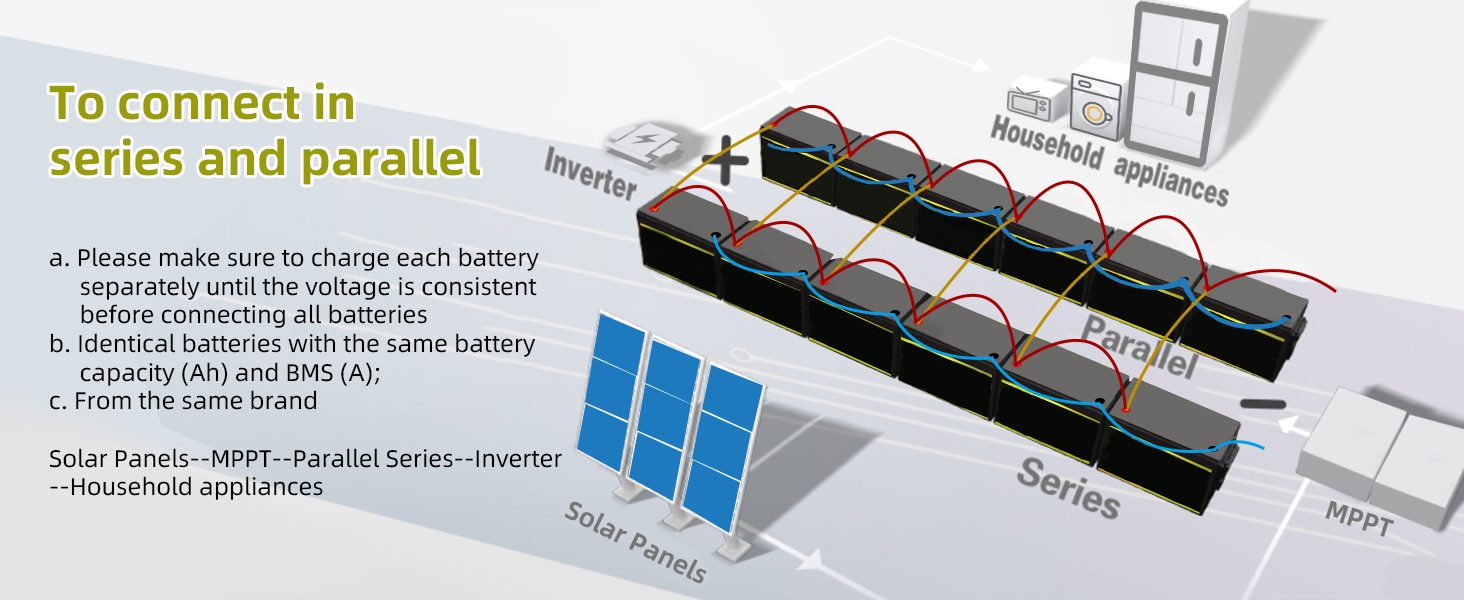

The 10.24kWh wall mounted battery is highly adaptable. The home solar battery system supports the parallel connection of up to 15 units, allowing system capacity to meet future energy needs.
For smart integration, the power bank includes RS232, RS485, and CAN communication ports for seamless connection with various inverters. This 10.24kWh wall mounted battery offers both wall-mount and floor-stand installation options for maximum layout flexibility.
4.Wide Application for Energy Independence and Security
The battery storage system(ARCV 10K-WM) excels in residential energy management. As an intelligent Solar Battery, the unit stores excess solar power harvested during the day, reducing grid reliance and lowering electricity bills.
Crucially, the solar battery system (ARCV 10K-WM) also serves as a reliable Backup Power for Home. During an outage, the battery automatically powers essential appliances, ensuring household safety and comfort are maintained without interruption.
5.Guaranteed Quality and International Certification
This ARCV 10K-WM 48V LiFePO4 Battery is fully certified for global quality and safety standards. The solar battery system holds major certifications, including CE, the rigorous IEC62619 (Cell & Pack), JISC8715-2:2012, MSDS, ROHS, and UN38.3 for safe transport.
6.Professional Packing & Secure Shipping
Each 48V LiFePO4 battery is securely packed to ensure safe arrival via sea freight. Customers receive detailed tracking information once the product is dispatched, providing peace of mind throughout the shipping process.
Parameters__Low Voltage Battery
Model | ARCV 10K-WM |
Battery Capacity(wh) | 1024 |
Number of cells | 1P8S*2 |
Cell Type | LFP |
Nominal Voltage (V) | 51.2 |
Operating Voltage Range (V) | 46.4~57.6 |
Max.Charge /Discharge Current (A) | 105/120 |
Continuous Charging/Discharging Current (A) | 100/110 |
Max.Power（W） | 6144 |
Dimension (H*W*D mm) | 674*420*259 |
Weight（KG） | 88 |
Operating Temperature Range (℃) | 0-55 |
Temperature.Control | natural cooling |
Max.Number of Parallel | 15 |
Communication | RS232 / RS485 / CAN |
Cycle Life (80%DOD,25℃) | >6000 |
Ingress Protection Rating | IP54 |
Installation | Wall or floor mounting |
Relative Humidity | ≤95%rh ，No condensation |
Humidity of storage environment | ≤95%rh，No condensation |
Max. Operating Altitude (m) | ≤3000m |
Storage Temperature | ≤25℃, 12 months；≤35℃, 6 months；≤45℃, 3 months |
Certification | CE,IEC62619(Cell&Pack), JISC8715-2: 2012, MSDS, ROHS, UN38.3 |
