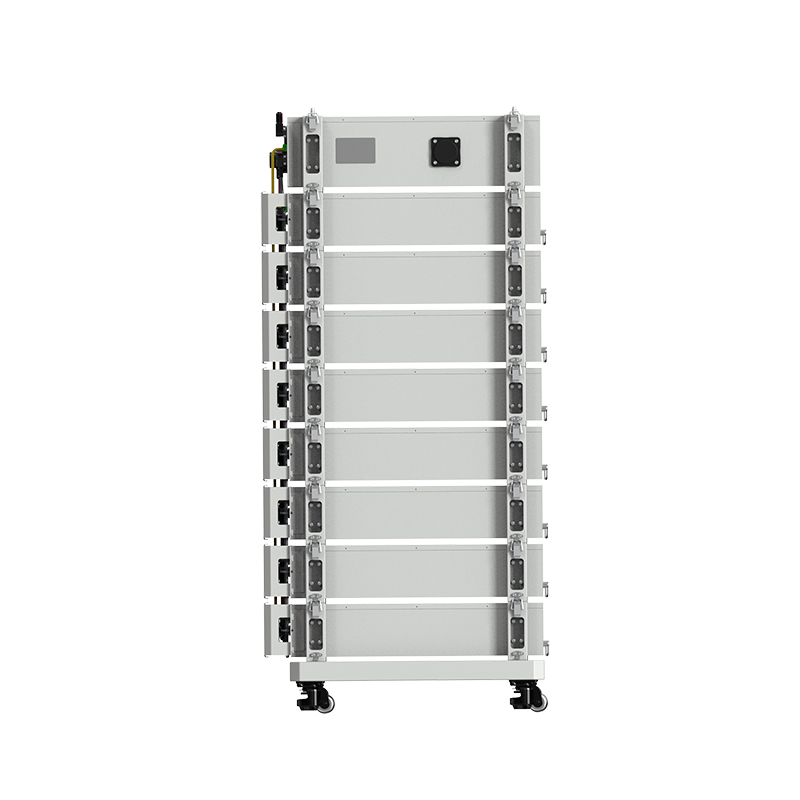

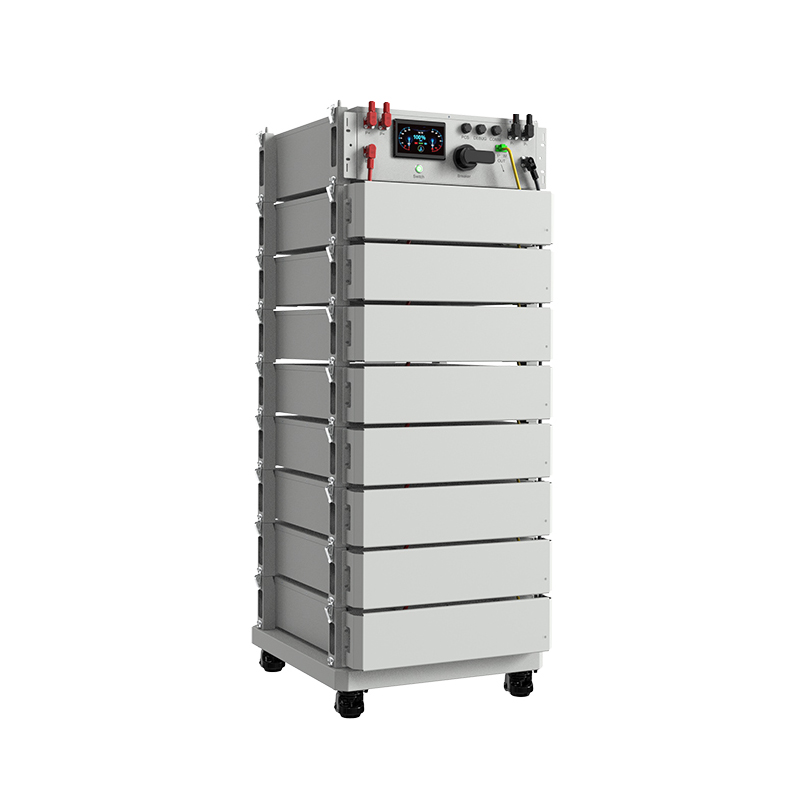

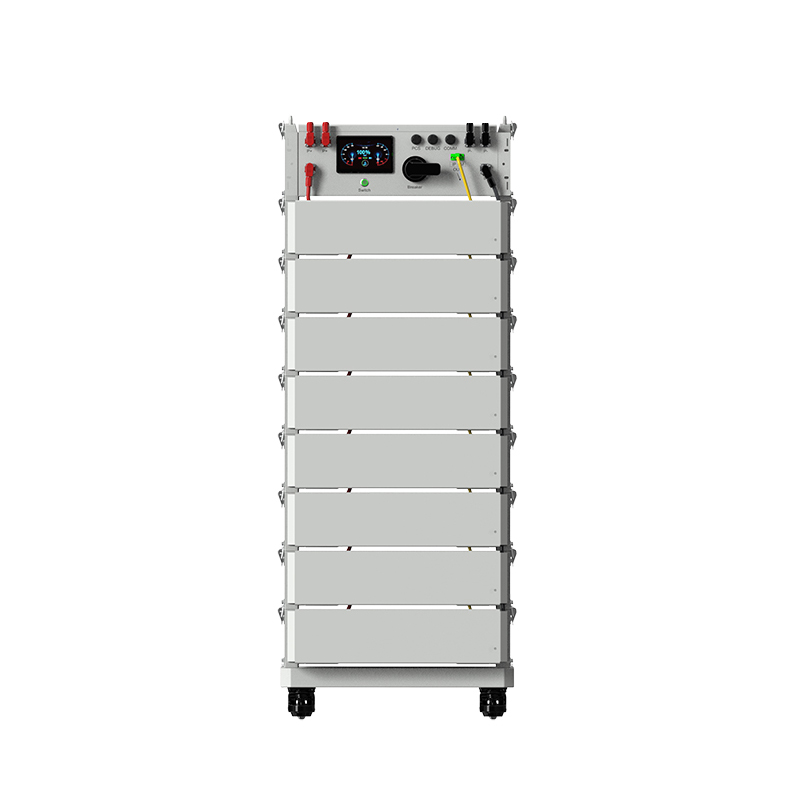

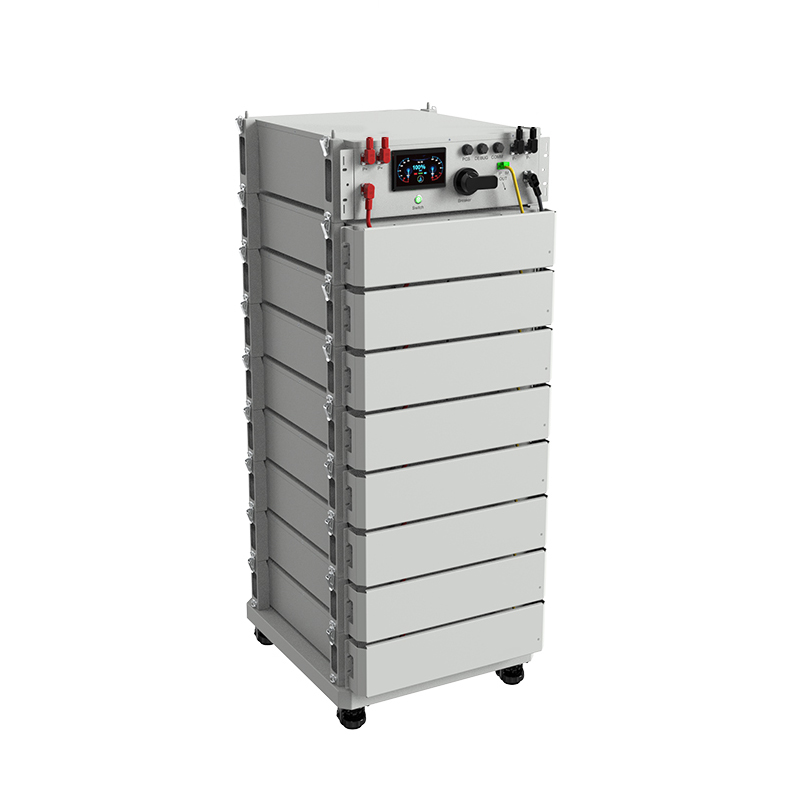

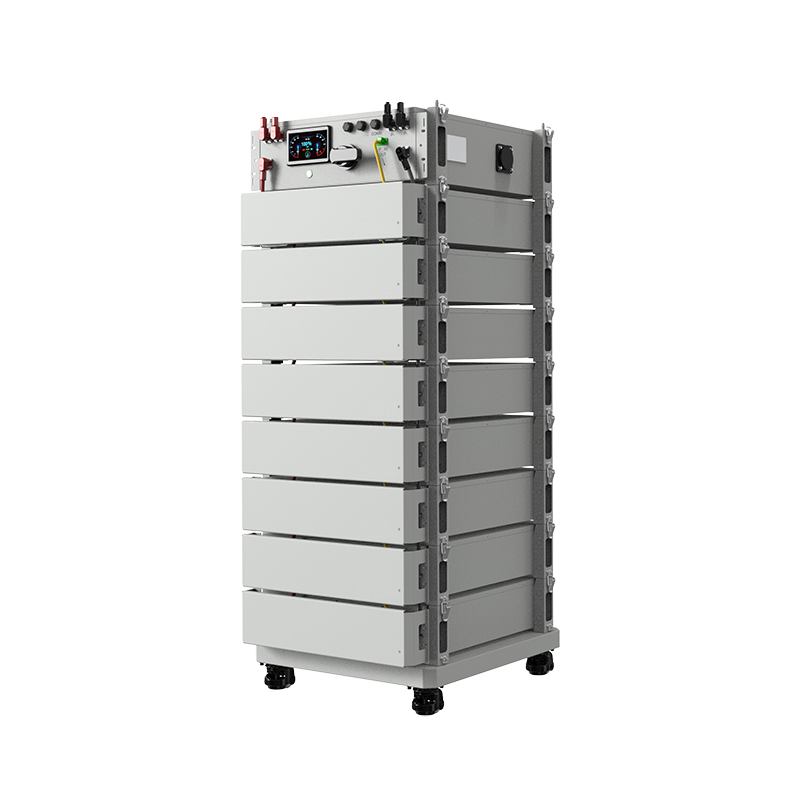

Arcvolt’s HV Pack series offers high-voltage, scalable energy storage solutions for commercial, industrial, and residential energy storage systems (ESS). These rack-mounted, flexible battery modules are designed for high-efficiency applications in microgrids, uninterruptible power supply (UPS) systems, and more. With a range of configurations, the HV Pack series meets varying energy needs through a modular design and seamless series and parallel connectivity. Offering an exceptional 6000 cycles at 80% DOD, the HV Pack is built for longevity and performance.
KEY FEATURES
High Voltage Flexibility
Available in four models (HV Pack 7, 8, 9, 10), each with scalable capacity, from 7.776 kWh to 77.76 kWh, to suit diverse energy requirements.
Modular & Expandable

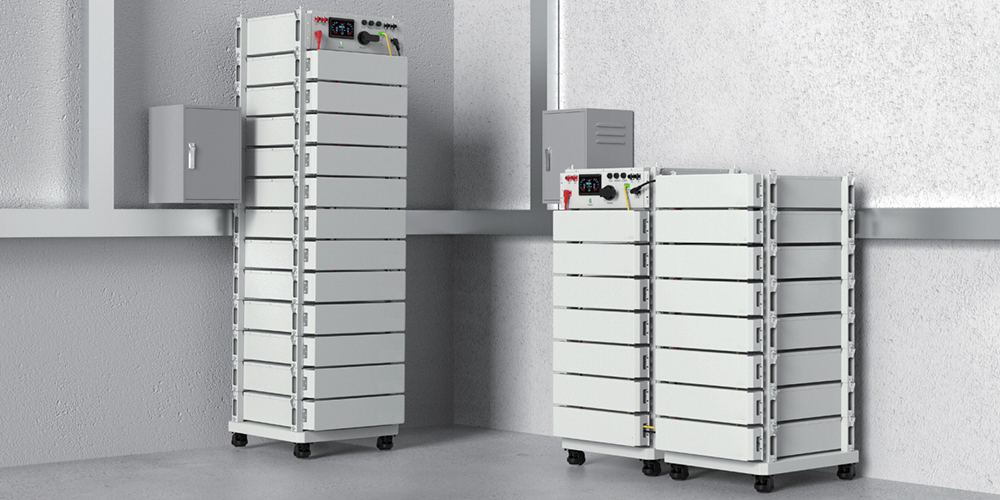

Easily stackable system configurations allow you to customize your setup with 7 to 10 packs, providing scalable solutions for small to large-scale projects.
Efficient Performance
Rated for continuous operation at high voltages of 403.2V to 576V, with a robust charge/discharge cycle to ensure consistent power delivery.
Long Lifecycle & Durability
With a cycle life of 6000 cycles and a minimum 15-year battery life, the HV Pack ensures long-term reliability with low maintenance costs.
Versatile Application
Ideal for three-phase residential systems, commercial and industrial energy storage, microgrids, and UPS, offering unmatched flexibility for your energy needs.
Safety and Compliance
IP20-rated protection, storage temperatures from -10°C to 40°C, and extensive safety certifications ensure the HV Pack performs safely in diverse environments.
Reliable and Easy Integration
Supports CAN BUS software protocol at 250 Kb/s, ensuring compatibility with various energy management systems and easy integration into your ESS.
Technical Specifications
| Model | HV PACK 7 | HV PACK 8 | HV PACK 9 | HV PACK 10 |
| Battery Module | 57.6V 135Ah 7.776kWh | |||
| Rated Voltage(V) | 403.2 | 460.8 | 518.4 | 576 |
| Rated Capacity(Ah) | 135 | 135 | 135 | 135 |
| Cell Model(LFP-3.2V)(Ah) | 135 | 135 | 135 | 135 |
| System Configuration | 126S1P | 144S1P | 162S1P | 180S1P |
| Battery Single Box Number | 7 pack+1 control box | 8 pack+1 control box | 9 pack+1 control box | 10 pack+1 control box |
| Rate Power(kWh) | 54.43 | 62.21 | 69.98 | 77.76 |
| Charge Cut-off Voltage(V) | 447.3 | 511.2 | 575.1 | 639 |
| Discharge Cut-off Voltage(V) | 359.1 | 410.4 | 461.7 | 513 |
| Recommended Current(A) | 68 | 68 | 68 | 68 |
| Maximum Charging Current(A) | 120 | 120 | 120 | 120 |
| Maximum Discharging Current(A) | 120 | 120 | 120 | 120 |
| Dimension(L*W*H)(±5MM) | 590*713*1418 | 590*713*1568 | 590*713*1718 | 590*713*1868 |
| Host Software Protocol | CAN BUS (Baud rate @250Kb/s) | |||
| Operation Temperature Range | Charge: 0~55°C | |||
| Disharge: -20~55°C | ||||
| Storage Temperature | -10~40℃ | |||
| Cycle Life(25°C) | 6000 cycles @80% DOD | |||
| Protection Level | IP20 | |||
| Storage Humidity | 10%RH ~90%RH | |||
| Internal Impedance | ≤1Ω | |||
| Warranty | 10 years | |||
| Transportation | UN38.3 | |||
| Battery Life | ≥15 years | |||
| Weight(±3%) | Base: 18kg丨Single Pack: 68kg丨High voltage Box: 20kg | |||
FAQs
Q1: What is the typical lifespan of the HV Pack series?
A1: The HV Pack series has a minimum battery life of 15 years, with a cycle life of 6000 cycles at 80% depth of discharge (DOD).
Q2: Can the HV Pack be used in off-grid applications?
A2: Yes, the HV Pack series is ideal for off-grid energy storage systems, microgrids, and backup power systems, providing reliable energy for commercial, industrial, and residential setups.
Q3: What voltage levels are supported by the HV Pack models?
A3: The HV Pack series includes models with rated voltages ranging from 403.2V to 576V, catering to various high-voltage energy storage needs.
Q4: How does the scalability of the HV Pack work?
A4: The HV Pack is highly scalable, with configurations supporting from 7 to 10 battery packs, allowing flexibility to meet your energy requirements.
Q5: What warranty is provided with the HV Pack series?
A5: The HV Pack comes with a 10-year warranty, ensuring long-term performance and peace of mind.
