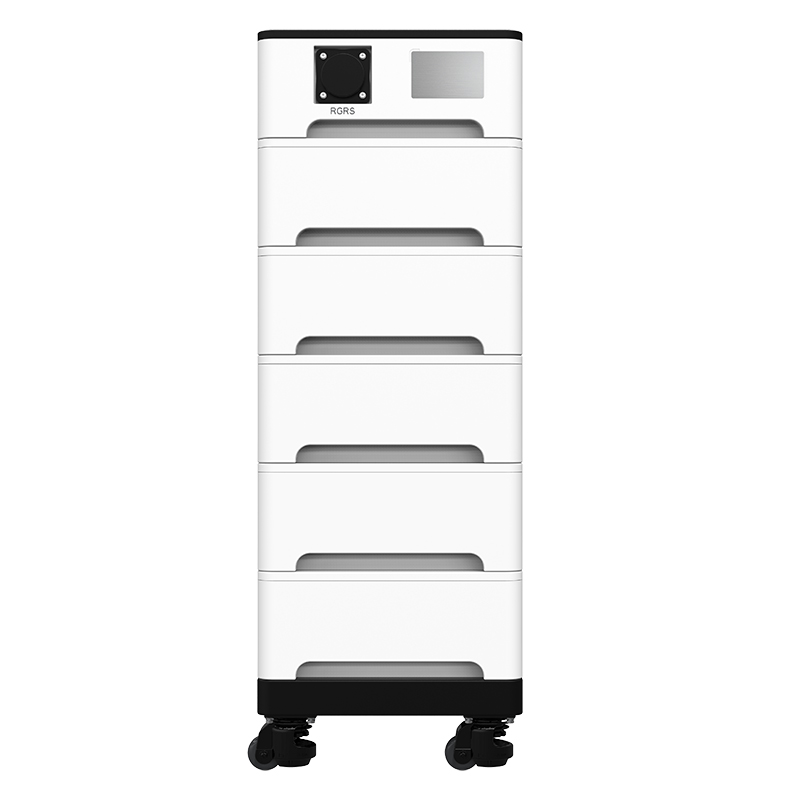

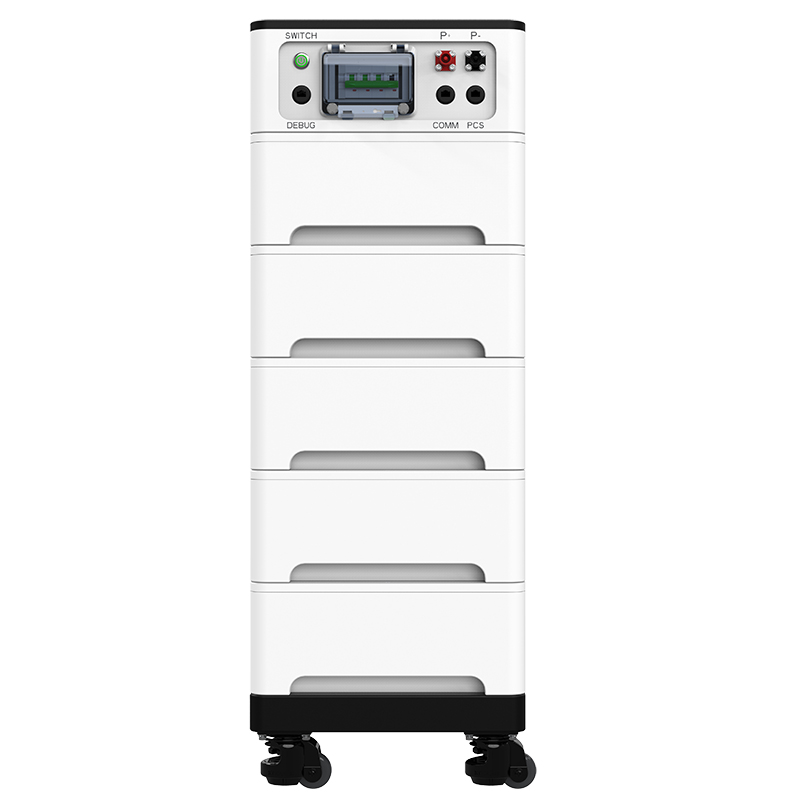

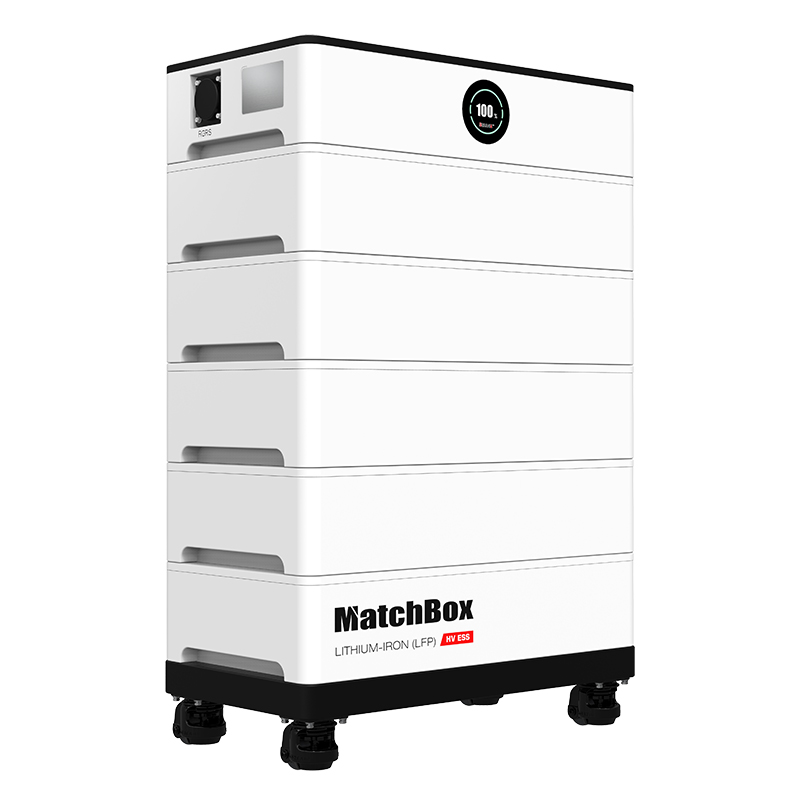

The MatchBox HVS Series is a high-performance, stackable high-voltage battery designed to meet the needs of residential, commercial, and industrial energy storage applications. Ranging from 15.97 kWh to 37.27 kWh, these batteries feature advanced LiFePO4 technology for long-lasting energy solutions. With a modular design, they can be easily expanded by connecting up to five towers, offering scalability and flexibility. Integrated with a Battery Management System (BMS) for enhanced safety and protection, the MatchBox HVS is ideal for those seeking a robust energy storage solution that is reliable and efficient.
KEY FEATURES
Wide Capacity Range: Available in multiple configurations from 15.97 kWh to 37.27 kWh, suitable for various applications.
Scalable Design: Easily expandable with up to five stackable units, offering flexible energy storage as your needs grow.
Advanced LiFePO4 Battery: High-energy density and long cycle life, providing over 6000 cycles at 95% depth of discharge (DOD).
Integrated BMS: Ensures full control and protection with built-in Battery Management System (BMS), safeguarding against overcharge, over-discharge, and temperature fluctuations.
High Power Output: Rated DC power from 7.98 kW to 18.63 kW, supporting demanding energy needs.
Durable and Safe: With an IP65 protection rating, the unit is designed for both indoor and outdoor use, able to operate in temperatures from 0°C to 50°C for charging and -10°C to 55°C for discharging.
Long Warranty and Service Life: Offering a 10-year warranty and a service life of over 15 years, ensuring reliable performance throughout its lifespan.
Compliance & Certification: Meets IEC62619, IEC62477, IEC62040, CE, and UN38.3 standards for safety and quality.
Technical Specifications
| Model | HVS3 | HVS4 | HVS5 | HVS6 | HVS7 |
| Rated voltage (V) | 307.2 | 409.6 | 512 | 614.4 | 716.8 |
| Cell model (LFP-3.2V) | 52Ah | ||||
| Battery Pack | 32S1P 102.4V 5.32kWh | ||||
| System configuration | 96S1P | 128S1P | 160S1P | 192S1P | 224S1P |
| Number of Modules | 3 | 4 | 5 | 6 | 7 |
| Nominal capacity (kWh) | 15.97 | 21.29 | 26.62 | 31.94 | 37.27 |
| Usable capacity (kWh) | 15.17 | 20.22 | 25.28 | 30.34 | 35.4 |
| Charge upper voltage (V) | 336 | 448 | 560 | 672 | 784 |
| Discharge Lower voltage (V) | 268.8 | 358.4 | 448 | 537.6 | 627.2 |
| Recommended current | 26A | ||||
| Rated DC Power (kW) | 7.98 | 10.64 | 13.31 | 15.97 | 18.63 |
| Maximum charging current | 48A | ||||
| Maximum discharging current | 52A | ||||
| Dimensions (W*D*H,mm) | 665*370*678(±5) | 665*370*828(±5) | 665*370*978(±5) | 665*370*1128(±5) | 665*370*1278(±5) |
| weight (kg) | 160kg±1% | 205kg±1% | 250kg±1% | 295kg±1% | 340kg±1% |
| Communication protocol | CAN BUS(Baud rate @500Kb/s @250Kb/s)/Mod bus RTU(@9600b/s) | ||||
| Host software protocol | CAN BUS(Baud rate @250Kb/s)/Wifi / Bluetooth | ||||
| Operation temperature range | Charge:0~50℃ | ||||
| Discharge: -10~55℃ | |||||
| Cycle life | ＞6000 cycles @95% DOD | ||||
| Protection level | IP65 | ||||
| Storage tempearture | 0℃~35℃ | ||||
| Storage humidity | 10%RH~90%RH | ||||
| Internal impedance | ≤1Ω | ||||
| Warranty | 10 years | ||||
| Service life | ＞15 years | ||||
| Multi-group | Max. 5 systems in parrallel | ||||
| Certification | |||||
| Safety | IEC62619/IEC62477/IEC62040/CE/UN38.3 | ||||
| Hazardous materials classification | Class 9 | ||||
| Transportation | UN38.3 | ||||
FAQs
Q1: What is the maximum number of MatchBox HVS units that can be stacked?
A1: You can connect up to 5 systems in parallel, allowing for scalable energy storage as your needs grow.
Q2: What is the cycle life of the MatchBox HVS battery?
A2: The battery offers more than 6000 cycles at 95% depth of discharge (DOD), ensuring long-lasting performance.
Q3: What is the warranty on the MatchBox HVS battery?
A3: The battery comes with a 10-year warranty, providing peace of mind and reliability.
Q4: Can the MatchBox HVS be used outdoors?
A4: Yes, the IP65 protection rating ensures that it can be used both indoors and outdoors in various environmental conditions.
Q5: What is the operating temperature range for charging and discharging?
A5: The battery can charge between 0°C to 50°C and discharge between -10°C to 55°C, making it versatile for different climates.
Q6: How many kWh options are available?
A6: The MatchBox HVS is available in different capacities ranging from 15.97 kWh to 37.27 kWh, ensuring a suitable solution for various energy needs.
Q7: Is the MatchBox HVS compatible with other systems?
A7: Yes, the system features CAN BUS and Modbus RTU communication protocols, allowing for compatibility with other energy storage solutions and inverters.
