Home battery storage system Energy Storage 60kWh BESS Battery 30kW Inverter
1. All-in-One ESS for Business

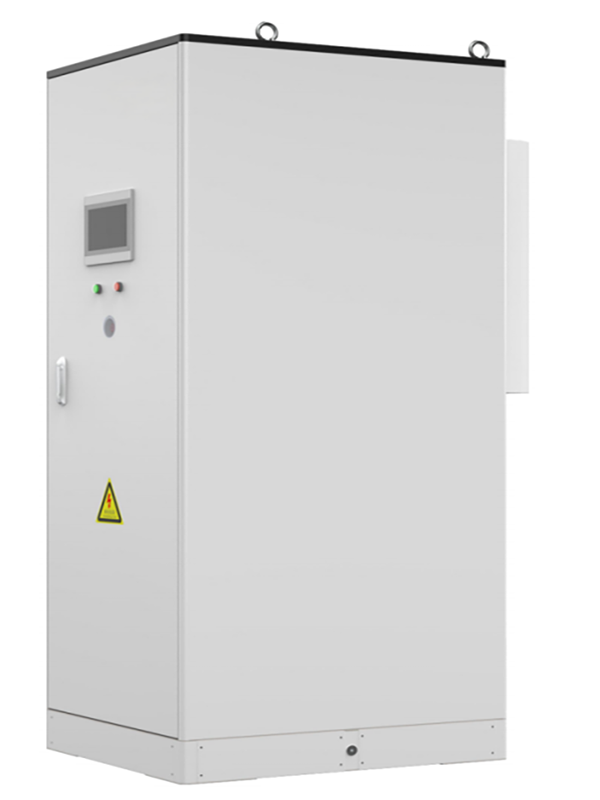

The ARCV-3060F battery energy storage system is engineered as a complete energy storage solution to reduce operational costs and eliminate the risk of power outages. This single cabinet integrates a 30kVA inverter with a 60kWh battery, creating a powerful hub for your energy needs.
The dimensions are W790*H2148*D920mm, a compact design that saves valuable floor space. The battery energy storage system is designed to provide a reliable solar BESS battery backup for business, ensuring that your critical loads remain operational during grid failures, thereby protecting your revenue and productivity.
2. Advanced LiFePO4 BESS Battery for Longevity and Performance
At the heart of this solar panel battery system is a state-of-the-art LiFePO4 battery system. The unit contains 12 battery packs with a total rated energy of 60kWh and a rated voltage of 614.4V.
This advanced BESS battery technology delivers an exceptional lifespan of 6000 cycles and is backed by a comprehensive 10-year warranty, guaranteeing a long-term return on investment.
The BESS battery operates within a wide voltage range of 537.6-700.8V and provides a robust maximum continuous charging and discharging current of 100A, making the ARCV-3060F a durable and high-performing asset for any enterprise.
3. High-Efficiency Solar Integration
This solar panel battery system (ARCV-3060F) is optimized to serve as the core of your industrial solar solutions. The unit is designed to handle a maximum PV input power of 39kW, with a rated input voltage of 600VDC.
A wide MPPT voltage range of 200-850VDC ensures the system harvests the maximum possible energy from your solar panels throughout the day, even in varying weather conditions.
With a maximum input voltage tolerance of 1000VDC, this battery energy storage system offers both high efficiency and a superior level of safety for your solar array investment.
4. Built for Demanding Environments

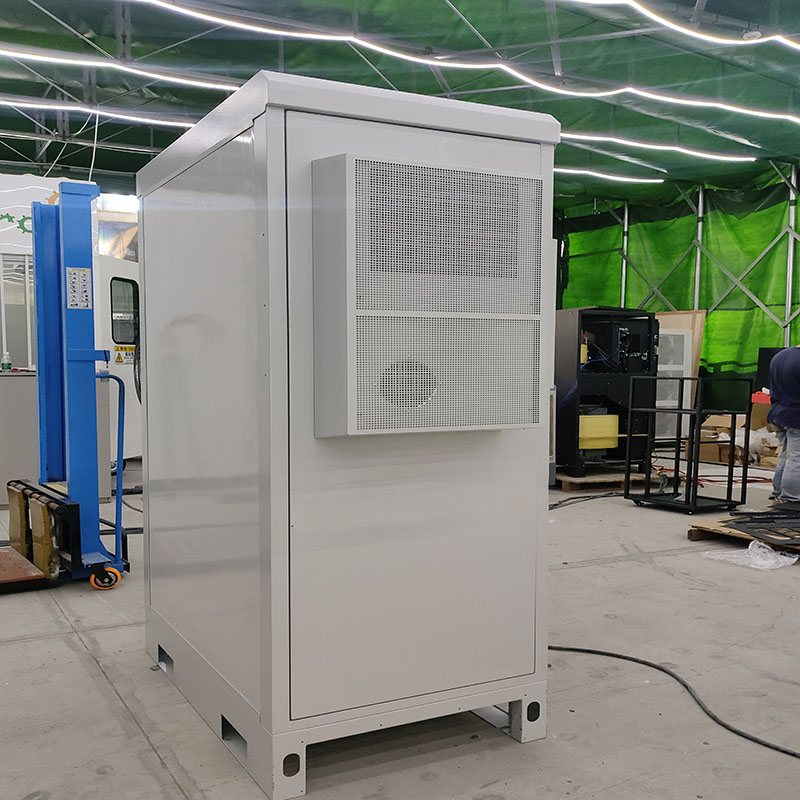

Engineered for reliability, this solar battery storage system (ARCV-3060F) is built to withstand challenging industrial conditions. The system features an IP54-rated enclosure, protecting internal components from dust and water ingress.
An efficient air cooling system allows this solar panel battery system (ARCV-3060F) to operate flawlessly in a wide ambient temperature range, from a frigid -30°C to a hot 50°C.
The battery energy storage system is also certified to meet stringent UN38.3, CE, and IEC62619 standards, confirming its safety and quality. This robust construction makes the ARCV-3060F a dependable power source you can trust.
5. Future-Proof Scalability and Smart Connectivity
The solar battery storage system ARCV-3060F grows with your business. This home battery storage system offers outstanding scalability, with support for parallel expansion up to a massive 150kW of power and 180kWh of capacity. This modularity ensures your initial investment is protected as your energy needs increase.
For seamless integration and monitoring, the unit is equipped with a full suite of communication options, including CAN, RS485, WIFI, and ETH.
This smart connectivity allows the battery energy storage system ARCV-3060F to be easily integrated into existing building management systems, providing you with complete control and visibility over your energy assets.
Specifications (Battery energy storage system)
| Battery Specification | AC Specifications | ||
| Battery type | LFP | Rated voltage | 400Vac |
| Cell capacity | 3.2V/280Ah | Voltage range | 230/400Vac |
| PACK config | 1P20S | Frequency range | 50/60+2.5Hz(50/60Hz self-adaption) |
| PACK Qty | 12 | Grid system | 3P+N+PE |
| Rated capacity | 215kWh | solation transformer | No |
| Rated voltage | 768V | Rated power | 100KW |
| Voltage range | 636-864Vdc | Peak power | 10KW |
| Charge/Discharge rate | 0.5C Rated | Rated current | 144A |
| DOD | 95% | Over load capacity | ≤110%Continues Running≤120%1Min |
| Cooling system | Air Cooling | Power factor | -0.99～+0.99 |
| Fire fighting system | Two Level Protection,Standard:Aerosol+HFC-227ea,Optional:PERFLUORO | On grid THDI/THDV(Off grid) | <3%,Ful lood |
| System Specification | STS module power capocity | 200KW | |
| Temperature range | -25℃~65℃,>45℃ power derating | Tronsfer time(On-off Grid) | ≤20ms |
| Storage temperature | -40～75℃ | Max.PV input voltage | 1000V |
| Noice | <70 dB | PV Specification | |
| Dimension W*D*H(mm) | 1800*1250*2000 | Max.PV input power | 110KW |
| Weight(kg) | 2600 | No.of MPPT/String per MPPT | 2/1 |
| P class | IP54 | MPPT voltage range | 350-1000V |
| Coolng type | Industry level Air Conditional | MPPT current | 200A (100A/100A) |
| EMS | Manudl Mode,Peak saving,virtual enlargement,New Energy power absorption,Anti-flow mode. | MPPTefficiency | 99% |
| Communication protocol | Modbus RTU,ModbUs TCP,IEC104,MQTT,Etc. | ||
| Support remote management and control | Communication port | RS485/RJ45/4G/WIFI/DIDO | |
