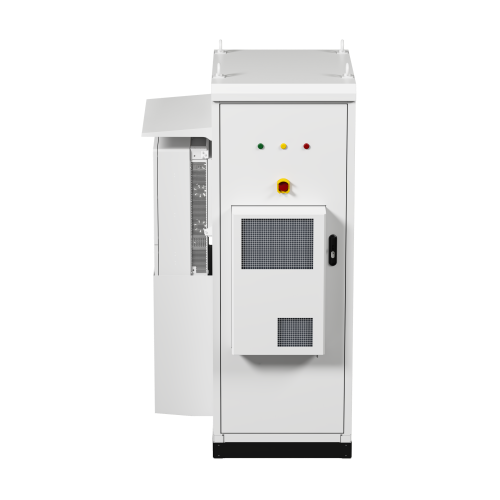

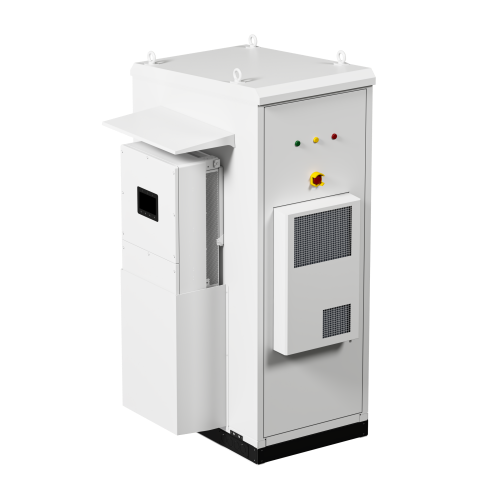

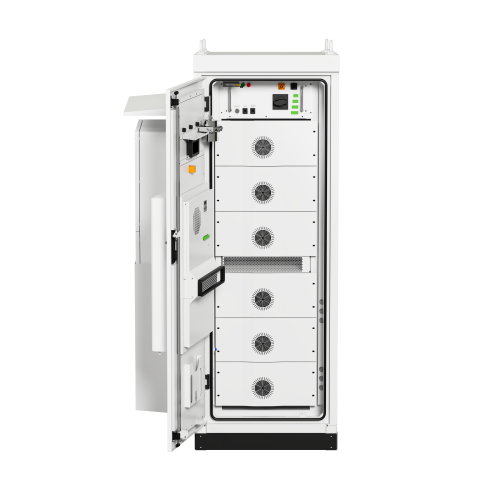

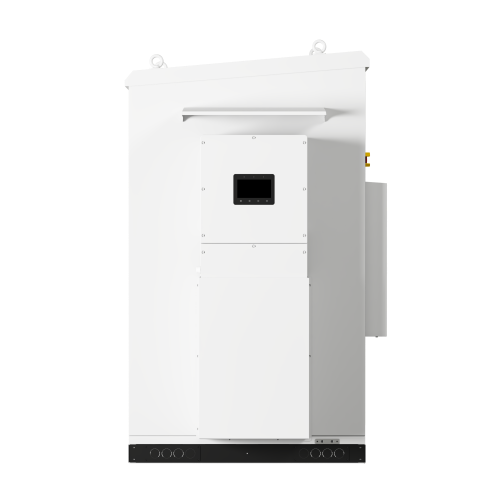

Commercial Battery Storage: Energy Storage System 50kW Hybrid Inverter 107.5kWh Battery
1.Complete Commercial Powerhouse
This commercial battery storage (ARCV-107F2) delivers a massive 107.5kWh of rated energy and a powerful 50kW rated AC output, making this battery energy storage system a true commercial-grade energy hub. The system's advanced LFP battery provides a robust 120A maximum continuous charging and discharging current, ensuring high-power output to run heavy loads like air conditioners, motors, and refrigeration units simultaneously. This solar battery storage is engineered to be the resilient core of your business's energy strategy.
2.Industrial-Grade LiFePO4 Durability
At the heart of the battery energy storage system (ARCV-107F2) is a premium Lithium Iron Phosphate (LFP) battery module, guaranteeing an exceptional lifespan of 6,000 deep cycles at 90% Depth of Discharge. With a design life of over 10 years, this 107.5kWh battery storage unit provides a decade of dependable service with minimal capacity degradation. The LFP technology is perfect for daily solar peak shifting and critical backup, offering a reliable, set-and-forget solution for any commercial or industrial application.
3.Robust, Intelligent & Safe Operation
The commercial battery storage (ARCV-107F2) is designed for safe, autonomous operation. The entire battery energy storage system is housed in a durable IP54-rated enclosure, protecting internal components from dust and water ingress. The integrated 50kW hybrid inverter provides clean power with a Total Harmonic Distortion (THDi) of less than 3%, safeguarding your sensitive electronics. Flexible working modes like self-use and peak shifting are managed intelligently, ensuring the system operates efficiently while reducing electricity costs and protecting your investment.
4.Streamlined Deployment & Scalable Architecture
This solar battery storage features a unique modular design for easy installation and high space utilization. The ARCV-107F2's compact footprint (W750 × H2095 × D1200 mm) allows for placement in various indoor or covered outdoor locations. Most importantly, the batter energy storage system is engineered for growth, with official support for parallel expansion. This allows you to scale your energy capacity by adding more units, future-proofing your energy strategy from a single facility to a multi-unit microgrid.
5.Advanced System Integration & Monitoring
The commercial battery storage (ARCV-107F2) is built for smart control, featuring comprehensive communication ports including CAN, RS485, WIFI, and ETH. These interfaces allow for seamless integration with external Energy Management Systems (EMS) for sophisticated remote monitoring and control. Engineered for global climates, the industrial and commercial energy storage system operates in a wide temperature range (charge 0–50 °C, discharge –20–50 °C) and at altitudes up to 2000m, ensuring reliable performance wherever you are.
Key Advantages
High-Efficiency Power Conversion: Features a transformerless 50kW hybrid inverter with less than 3% THDi, ensuring clean, high-quality power for sensitive commercial equipment.
Advanced LFP Battery Module: Delivers 107.5kWh of rated energy with a high continuous charge/discharge current of 120A and an industry-leading 6000-cycle life.
Maximized Solar PV Integration: Accommodates up to 96kW of PV input with an exceptionally wide MPPT voltage range (150-850VDC) for ultimate solar design flexibility.
Robust and Reliable System: Built within an IP54-rated enclosure with comprehensive communication options (CAN/RS485/WIFI/ETH) for superior durability and system integration.
Specifications
| Battery parameters | Arcv-107F2 | PV parameters | |
| Battery Type | LFP | Max.PVinput power | 96kW |
| Number ofbattery packs | 6 | Rated input volta ge | 600VDC |
| Ra ted voltage | 384V | Max.input voltage | 1000VDC |
| Voltage range | 300~438V | MPPTvoltage range | 150~850VDC |
| Rated energy | 107.5kWh | PVinput current | 40A*4 |
| Max.continuous chaging | 120A | System parameters | |
| and discharging current | Dimension(W*H*D) | W750*H2095*D1200mm | |
| Discharge Depth | 90% | Weight | about 1450kg |
| Cycle life | 6000 times | Communication | CAN/RS485NiFVETH |
| AC side parameters | Design Life | 10 years+ | |
| AC rated output power | 50kW | Expansion | Supportin parallel |
| AC Max.output power | 50KVA | Enclosure protection rating | IP54 |
| AC rated input/output current | 76A | Cooling | Air cooling |
| Isotransformer | Transformerless | Operation temperature | Charging:0~50℃/Discharge:-20~50℃ |
| Voltage | 3L/N/PE;230/400V | Humidity | 10%~95%RH |
| Frequency | 50/60Hz | Altitude | <2000m |
| THDi | ≤3% | Power Factor | 0.8 leading to 0.8lagging |

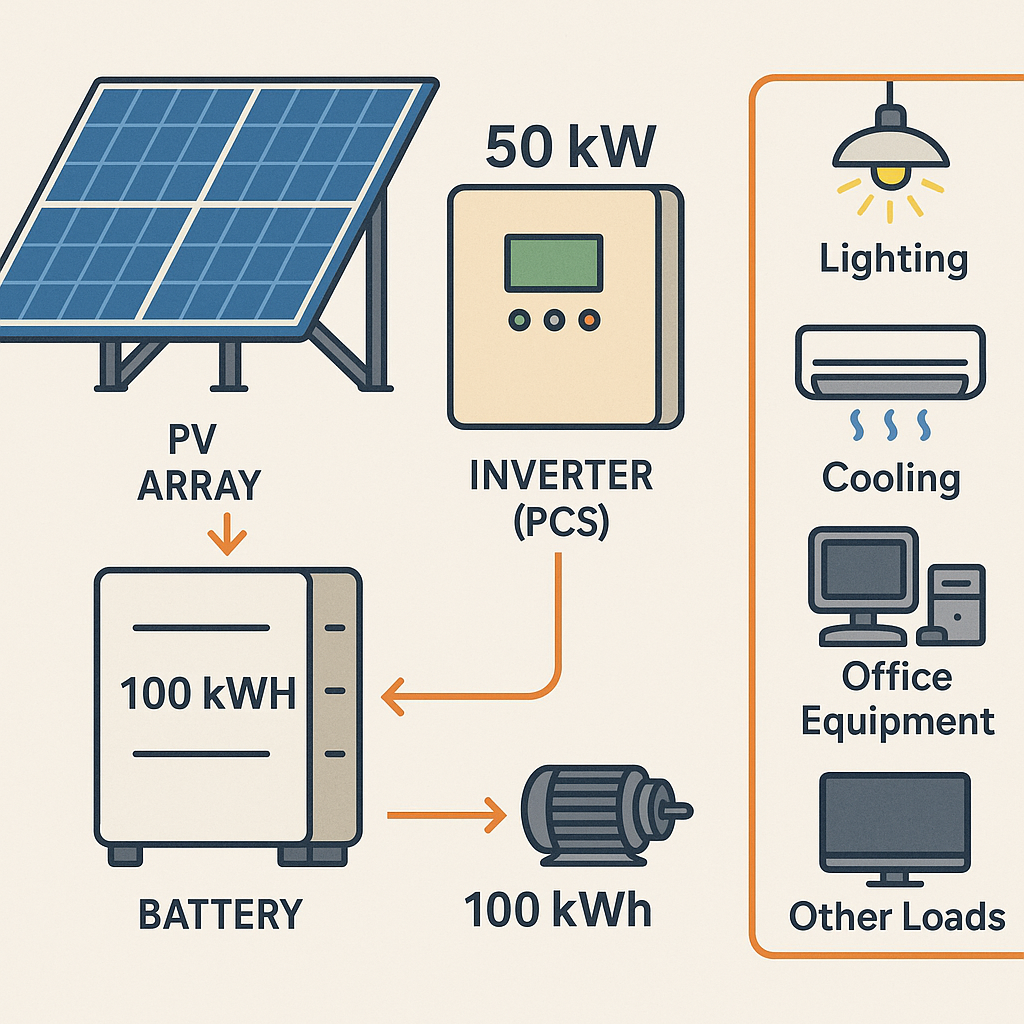

1. What Does an Energy Storage System Do?
Think of it as a giant battery that stores andreleases electricity. It captures excess power from solar panels or wind turbines during peak production (like sunny days) and releases it when needed, such as at night or during power outages. For homes, it ensures 24/7 electricity; for businesses, it cuts costs by using stored energy during high-price periods. It can even join “virtual power plants” to earn extra income!
2. Are Energy Storage Systems Eco-Friendly?
They’re a big win for the environment by supporting renewables and reducing fossil fuel use. However, battery production and recycling have some impact. The good news? The industry is advancing green manufacturing and recycling tech. Choose brands with environmental certifications for a greener choice.
3. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you
4. Can you do the design for us?
Yes. We have a professional designing team.Provide OEM and ODM. Just tell us your ideas and we will help to carry out your ideas. Send us high resolution images, your Logo and text, tell us how you would like to arrange them, We will send you finished files for confirmation.
PRODUCTION LINES
OUR EXHIBITION
We are a leading innovator and manufacturer in lithium battery technology, dedicated to engineering and manufacturing high-quality LiFePO4 solar batteries and power systems. Our core business involves the complete lifecycle of product development, from initial design to final production of dependable lithium battery packs. We proudly serve diverse sectors with customized solutions for energy storage, critical backup power systems, and compatible inverters and solar panels.
Based on automated production technology, Arcvolt are able to meet our customers' product needs quickly. However, the exact lead time depends on the quantity and the season you place the order.
Usage scenario: wall-mounted batteries, rack-mounted batteries, and stacked batteries. Voltage: 48V or 51.2V batteries, low/high voltage batteries Application: Residential storage batteries, industrial and commercial energy storage batteries.
While the typical home system uses 2 or 3 batteries, the perfect number for you is a personal choice. It all comes down to what you want to power during a grid outage and for how long. Do you need to run just the essentials or your whole house?
Yes, going completely off-grid is possible, but it's a significant step beyond standard solar with battery backup. A true off-grid system requires a much larger solar array and battery bank to power your home 24/7, making it a substantial investment. You also need a reliable backup source, like a generator, for days without sun. It's important to note that in North Carolina, disconnecting a home from the utility grid can be a complex process.
We accept EXW,FOB,CFR,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Absolutely. Our in-house design team specializes in OEM and ODM projects to bring your brand's vision to life. Simply provide us with your concept, high-resolution logo, and any text or images you'd like to include. We will then create a professional design proof for your final approval before we proceed.
Certifications are a key part of our pre-production checklist. We start by confirming with you which certifications are needed. These requirements are then integrated into the project timeline to ensure completion before shipment, and are formally documented in the signed agreement.
We offer lifetime technical support, with our engineers available 24/7 to provide prompt online assistance.
Yes, most of Arcvolt's inverters are designed to be scalable, meaning your system can grow with your needs. However, it's something that requires planning. Before adding more panels, it's essential to confirm that your current inverter can handle the additional power. We always recommend discussing your future plans with a professional to ensure your initial system is future-ready.
It depends on whether you have batteries. For Solar + Battery systems: A hybrid inverter is essential. It seamlessly manages power from panels and batteries in a single unit. For Solar-Only systems: Traditional inverters (like string or microinverters) are an option. The main advantage of a hybrid inverter is that it eliminates the need for a separate charge controller, making for a cleaner and more efficient installation.
Selecting the right inverter is one of the most important decisions you'll make for your solar project. While technical specifications matter, the long-term value comes from the manufacturer. Arcvolt advise customers to look beyond the data sheet and assess the company on these five critical points: their warranty, quality control standards, customer service responsiveness, installation support, and competitive pricing.
Generally, you want the inverter's size to match your solar array's power output. So, if you're installing a 5,000-watt solar system, you'll need an inverter of at least 5,000 watts to handle the load.
Yes, samples are available upon request as part of the qualification process for bulk orders. Please reach out to a member of our customer service team to discuss your specific requirements and they will assist you with the next steps.
Think of it as your personal energy bank. During the day, it saves up all the extra, unused power your solar panels generate. Then, you can draw from that stored energy whenever you need it—at night, during a power outage, or to avoid high-cost peak hours. For homeowners, this means energy independence and peace of mind. For businesses, it's a powerful tool to slash electricity bills.
Smart inverters are central to a system's reliability. Our inverter provide a constant stream of performance data, giving you a real-time view of your entire solar array. If a problem arises, the inverter's diagnostic tools can pinpoint the exact issue, which significantly speeds up repairs. This intelligent monitoring is key to preventing small problems from becoming big ones and guarantees the consistent, reliable operation you expect.
MPPT is a crucial technology that ensures you're not wasting sunlight. Because sun conditions are always changing, there is always a single, optimal point where your solar panels operate most efficiently. MPPT is the brain that constantly scans and adjusts the system to find and stay locked onto that "maximum power point." This guarantees you are harvesting the most energy possible from your panels at any given moment.
It's a question of priorities, and the logical first step is always generation. You have to make power before you can store it. Solar panels directly reduce your utility bills by producing electricity. Batteries give you control over when you use the excess electricity you've already made. We help our customers design a system that maximizes their solar panel array first, as this delivers the biggest and fastest return on investment.
A grid-tied inverter is the standard type used to reduce your electricity bills with solar. It safely connects your solar system to the utility's grid, allowing you to seamlessly feed any surplus power you produce back to the utility. In return, you receive credits on your bill for that energy, a process known as net metering. For safety, these inverters automatically shut down during a power outage.
The exact amount of power you generate is unique to your home and depends on your system's size, your roof's orientation, and how much direct sun you get. However, to give you a real-world idea, our typical 6kW home system can produce around 30kWh of electricity on a clear, sunny day. For most households, that's more than enough to cover all of your energy needs for a full 24 hours.
