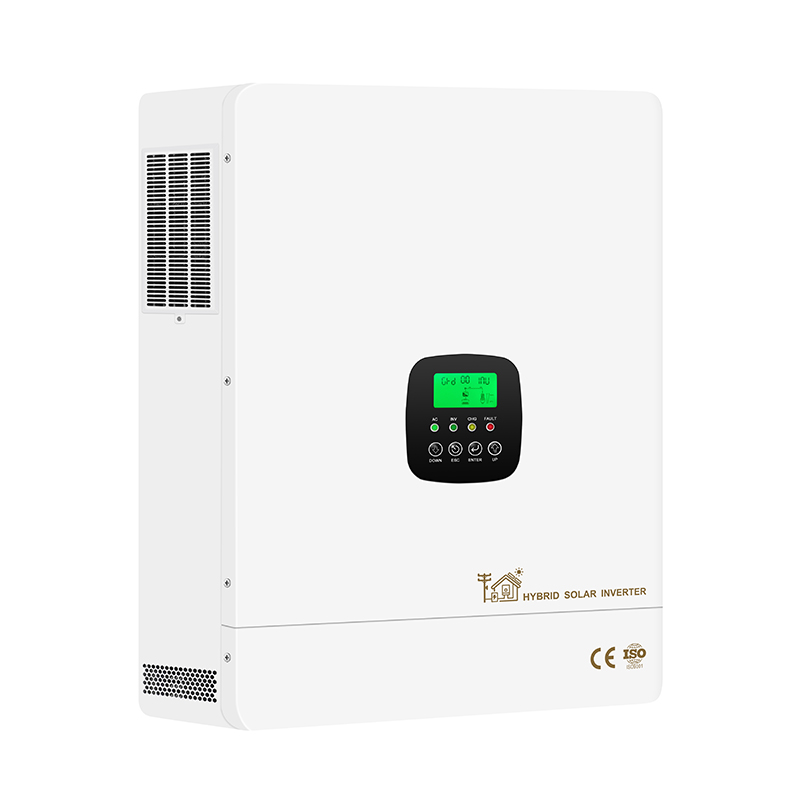

Hybrid Inverter Home Inverter 10kW Hybrid Solar Inverter 48V
1.Powerful Performance in a Minimal Footprint

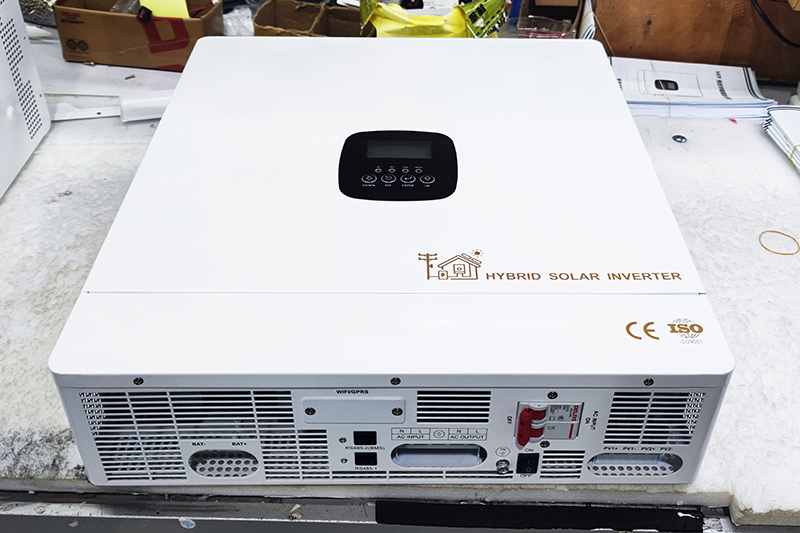

The 10kW hybrid solar inverter leverages an advanced design to deliver power in a compact, wall-mounted unit. Measuring 535*462*117mm(product size) and weighing 14.7kg(net weight), this on grid hybrid inverter offers a more flexible solution.
For homeowners, this means a clean, professional installation in a garage or utility room that saves valuable space. For commercial installers, the lightweight design allows for faster, more flexible placement, making this 10kW hybrid Solar inverter for solar energy a model of efficiency.
2.Keep Your Life & Business Running
Power outages are no longer a concern. With a transfer time of just 10 milliseconds(Typical value), the 10kW home inverter switches to off-grid mode so quickly that your lights won't even flicker. The robust hybrid solar system for home of pure sine wave output can power not only essential lights and refrigerators but also sensitive electronics like computers, servers, and medical equipment without risk of damage.
3.Total Control with 3 Smart Modes

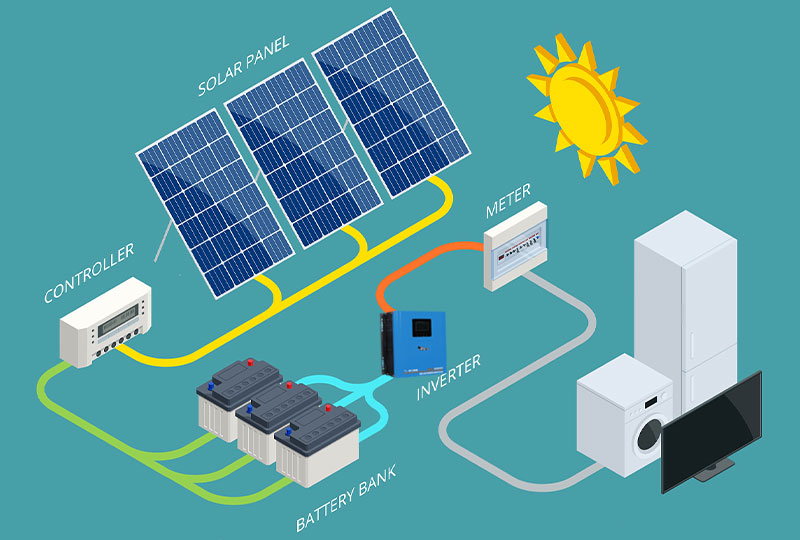

This grid tie hybrid solar inverter puts you in complete command of your energy strategy. Choose from three distinct operational modes: Grid-Connected Mode to sell excess power back to the utility, Off-Grid Mode for complete energy independence, or Hybrid Mode to intelligently blend solar, battery, and grid power.
4.More Power from Every Sunbeam
Get the absolute most out of your solar panel investment. Featuring an ultra-wide MPPT voltage range of 80VDC to 450VDC and an tracking efficiency of ≥99.9%, this grid tie home power inverter starts generating power earlier in the morning and continues later in the evening, capturing more energy even on overcast days.
5.An Investment That Grows With You
The 10kW hybrid solar inverter is built to adapt. Start your solar journey today with its battery-less operation capability, and add energy storage in the future without needing to replace the inverter.

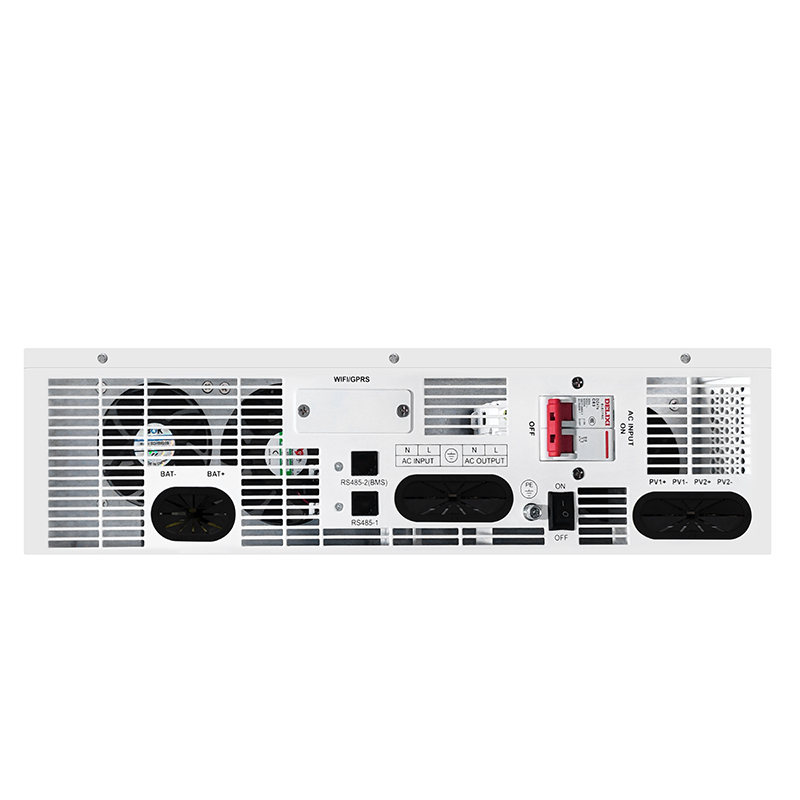

The 10kW hybrid inverter is equipped with a dedicated BMS communication port (CAN/RS485). With optional Wi-Fi/GPRS monitoring, you can track system's performance and make adjustments right from your smartphone, ensuring your energy system is not only powerful today but ready for the innovations of tomorrow.
Parameters ___ Home Power Inverter
| Specification | ||||||||||||||
| Model ： ARCV | 103248 | |||||||||||||
| PV | Max PV Input Power | 6000W*2 | ||||||||||||
| MPPT Tracking Voltage Range | 80VDC-450VDC | |||||||||||||
| Rated Voltage | 280VDC | |||||||||||||
| Max PV Input Voltage voc (at the lowest temperature) | 500VDC | |||||||||||||
| Max PV Input Current | 22A*2 | |||||||||||||
| MPPT Tracking Channels (Input Routed ) | 2 Routed | |||||||||||||
| Battery&Charging | Battery Type | Lead-acid Battery/Lithium Battery | ||||||||||||
| Custom Battery (Charging and discharging paramcters of different types of batteriescan be set through the operation board) | ||||||||||||||
| Rated Battery Voltage | 48VDC | |||||||||||||
| Battery voltage Range | 42~60VDC(default) | |||||||||||||
| Max PV Charging Current | 180A | |||||||||||||
| Max AC Charging Current | 120A | |||||||||||||
| Max Charging Current | 180A | |||||||||||||
| On-Grid Operation | ||||||||||||||
| On-Grid Output (AC) | Rated Output Power | 10.3KW | ||||||||||||
| Rated Output Voltage | 220VAC/230VAC/240VAC | |||||||||||||
| Grid Voltage Range | 187VAC~264VAC | |||||||||||||
| Rated Output Frequency | 50Hz/60Hz | |||||||||||||
| Frequency Range | 47Hz~52Hz(50Hz),57Hz~62Hz(60Hz) | |||||||||||||
| Rated Output Current | 46.7A/44.9A/42.9A | |||||||||||||
| Power Factor | ＞0.98(Rated Power) | |||||||||||||
| Off-Grid Operation | ||||||||||||||
| AC Input | Rated Input voltage | 220V /230V/240V | ||||||||||||
| Mains input voltage range | 165VAC-280VAC/ 120VAC~280VAC(Can be set) | |||||||||||||
| Rated Input Frequency | 50Hz/60Hz | |||||||||||||
| Input Frequency Range | 45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz) | |||||||||||||
| AC Output | Rated Output Power | 10.3KW | ||||||||||||
| Rated Output Voltage | 220V /230V/240V | |||||||||||||
| Output Voltage Accuracy | ±2% | |||||||||||||
| Rated Input Frequency | 50Hz/60Hz | |||||||||||||
| Output Frequency Accuracy | ±1% | |||||||||||||
| Output Wave | Pure Sine Wave | |||||||||||||
| Hybrid Operation (Complementary Mode) | ||||||||||||||
| AC Input | Rated Input voltage | 220V /230V/240V | ||||||||||||
| Mains input voltage range | 187VAC~264VAC | |||||||||||||
| Rated Input Frequency | 50Hz/60Hz | |||||||||||||
| Input Frequency Range | 47Hz~52Hz(50Hz)，57Hz-62Hz(60Hz) | |||||||||||||
| AC Output | Rated Output Power | 10.3KW | ||||||||||||
| Rated Voltage Rated | 220VAC/230VAC/240VAC | |||||||||||||
| Output Current | 46.7A/44.9A/42.9A | |||||||||||||
| Regular Parameters | ||||||||||||||
| Maximum Conversion Efficiency (Battery Discharge) | 94%(peak value) | |||||||||||||
| MPPT Tracking Efficiency | ≥99.9 | |||||||||||||
| Transfer Time | 10ms(Typical value) | |||||||||||||
| Display | LCD+LED | |||||||||||||
| Cooling Method | Cooling fan in intelligent control | |||||||||||||
| Communication | RS485/Mobile APP(WIFI Monitoring or GPRS monitoring)(Optional) | |||||||||||||
| Protection Degree | IP20 | |||||||||||||
| Installation | Wall-Mounted | |||||||||||||
| Protection Degree | Battery low voltage alarm | 44VDC (default value） | ||||||||||||
| Battery low voltage protection | 42VDC（default value） | |||||||||||||
| Anti-islanding protection | ≤2S | |||||||||||||
| overload power protection | Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode) | |||||||||||||
| Inverter output short circuit protection | Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode) | |||||||||||||
| Temperature protection | ＞90 ℃(Turn off inverter and charging) | |||||||||||||
| Environment | Operating temperature | -10℃~50℃ | ||||||||||||
| Storage temperature | -15℃~60℃ | |||||||||||||
| Noise | ≤55dB | |||||||||||||
| Elevation | 2000m（More than derating） | |||||||||||||
| Humidity | 0%~95% ,No condensation | |||||||||||||
| Dimension and Weight | ||||||||||||||
| Product Size(L*W*Hmm) | 535*462*117 | |||||||||||||
| Package Size(L*W*Hmm) | 630*557*212 | |||||||||||||
| N.W.(kg) | 14.7 | |||||||||||||
| G.W.(kg) | 16.7 | |||||||||||||
| Note: All specifications are subject to change without prior notice | ||||||||||||||
PRODUCTION LINES
OUR EXHIBITION
We are a leading innovator and manufacturer in lithium battery technology, dedicated to engineering and manufacturing high-quality LiFePO4 solar batteries and power systems. Our core business involves the complete lifecycle of product development, from initial design to final production of dependable lithium battery packs. We proudly serve diverse sectors with customized solutions for energy storage, critical backup power systems, and compatible inverters and solar panels.
Based on automated production technology, Arcvolt are able to meet our customers' product needs quickly. However, the exact lead time depends on the quantity and the season you place the order.
Usage scenario: wall-mounted batteries, rack-mounted batteries, and stacked batteries. Voltage: 48V or 51.2V batteries, low/high voltage batteries Application: Residential storage batteries, industrial and commercial energy storage batteries.
While the typical home system uses 2 or 3 batteries, the perfect number for you is a personal choice. It all comes down to what you want to power during a grid outage and for how long. Do you need to run just the essentials or your whole house?
Yes, going completely off-grid is possible, but it's a significant step beyond standard solar with battery backup. A true off-grid system requires a much larger solar array and battery bank to power your home 24/7, making it a substantial investment. You also need a reliable backup source, like a generator, for days without sun. It's important to note that in North Carolina, disconnecting a home from the utility grid can be a complex process.
We accept EXW,FOB,CFR,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Absolutely. Our in-house design team specializes in OEM and ODM projects to bring your brand's vision to life. Simply provide us with your concept, high-resolution logo, and any text or images you'd like to include. We will then create a professional design proof for your final approval before we proceed.
Certifications are a key part of our pre-production checklist. We start by confirming with you which certifications are needed. These requirements are then integrated into the project timeline to ensure completion before shipment, and are formally documented in the signed agreement.
We offer lifetime technical support, with our engineers available 24/7 to provide prompt online assistance.
Yes, most of Arcvolt's inverters are designed to be scalable, meaning your system can grow with your needs. However, it's something that requires planning. Before adding more panels, it's essential to confirm that your current inverter can handle the additional power. We always recommend discussing your future plans with a professional to ensure your initial system is future-ready.
It depends on whether you have batteries. For Solar + Battery systems: A hybrid inverter is essential. It seamlessly manages power from panels and batteries in a single unit. For Solar-Only systems: Traditional inverters (like string or microinverters) are an option. The main advantage of a hybrid inverter is that it eliminates the need for a separate charge controller, making for a cleaner and more efficient installation.
Selecting the right inverter is one of the most important decisions you'll make for your solar project. While technical specifications matter, the long-term value comes from the manufacturer. Arcvolt advise customers to look beyond the data sheet and assess the company on these five critical points: their warranty, quality control standards, customer service responsiveness, installation support, and competitive pricing.
Generally, you want the inverter's size to match your solar array's power output. So, if you're installing a 5,000-watt solar system, you'll need an inverter of at least 5,000 watts to handle the load.
Yes, samples are available upon request as part of the qualification process for bulk orders. Please reach out to a member of our customer service team to discuss your specific requirements and they will assist you with the next steps.
Think of it as your personal energy bank. During the day, it saves up all the extra, unused power your solar panels generate. Then, you can draw from that stored energy whenever you need it—at night, during a power outage, or to avoid high-cost peak hours. For homeowners, this means energy independence and peace of mind. For businesses, it's a powerful tool to slash electricity bills.
Smart inverters are central to a system's reliability. Our inverter provide a constant stream of performance data, giving you a real-time view of your entire solar array. If a problem arises, the inverter's diagnostic tools can pinpoint the exact issue, which significantly speeds up repairs. This intelligent monitoring is key to preventing small problems from becoming big ones and guarantees the consistent, reliable operation you expect.
MPPT is a crucial technology that ensures you're not wasting sunlight. Because sun conditions are always changing, there is always a single, optimal point where your solar panels operate most efficiently. MPPT is the brain that constantly scans and adjusts the system to find and stay locked onto that "maximum power point." This guarantees you are harvesting the most energy possible from your panels at any given moment.
It's a question of priorities, and the logical first step is always generation. You have to make power before you can store it. Solar panels directly reduce your utility bills by producing electricity. Batteries give you control over when you use the excess electricity you've already made. We help our customers design a system that maximizes their solar panel array first, as this delivers the biggest and fastest return on investment.
A grid-tied inverter is the standard type used to reduce your electricity bills with solar. It safely connects your solar system to the utility's grid, allowing you to seamlessly feed any surplus power you produce back to the utility. In return, you receive credits on your bill for that energy, a process known as net metering. For safety, these inverters automatically shut down during a power outage.
The exact amount of power you generate is unique to your home and depends on your system's size, your roof's orientation, and how much direct sun you get. However, to give you a real-world idea, our typical 6kW home system can produce around 30kWh of electricity on a clear, sunny day. For most households, that's more than enough to cover all of your energy needs for a full 24 hours.
