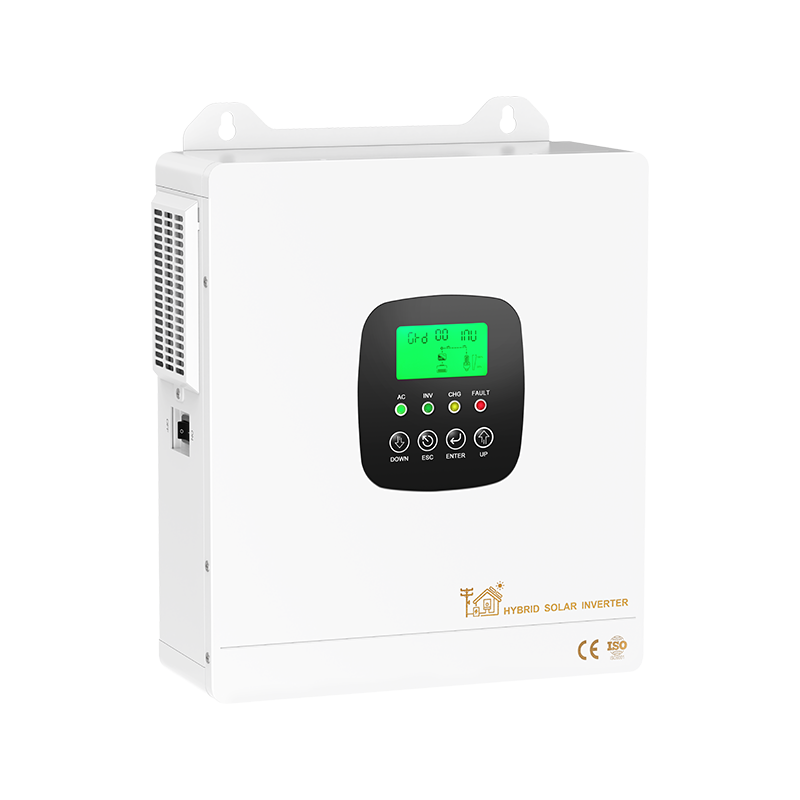

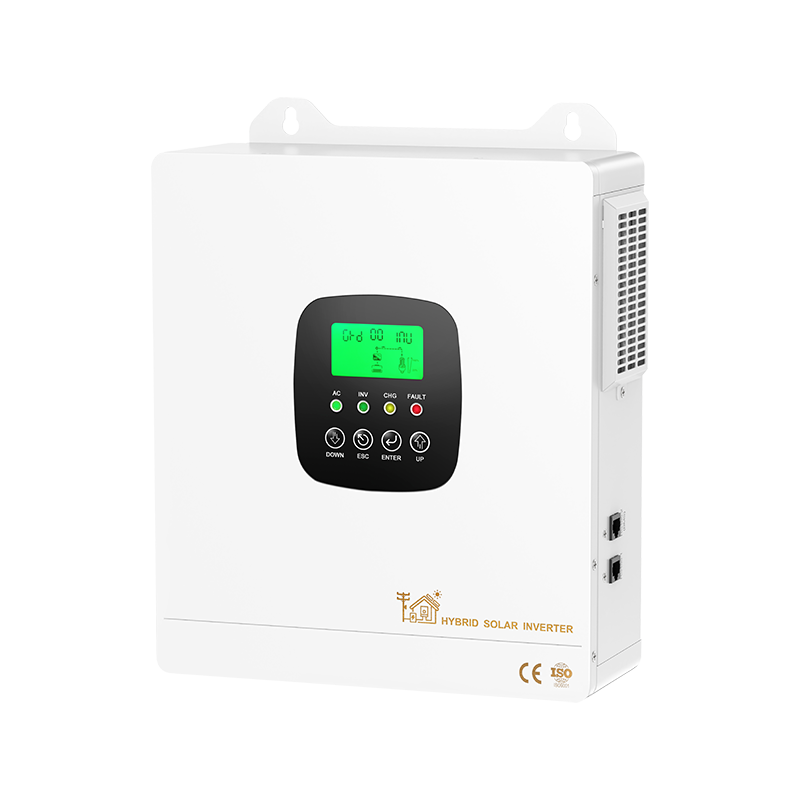

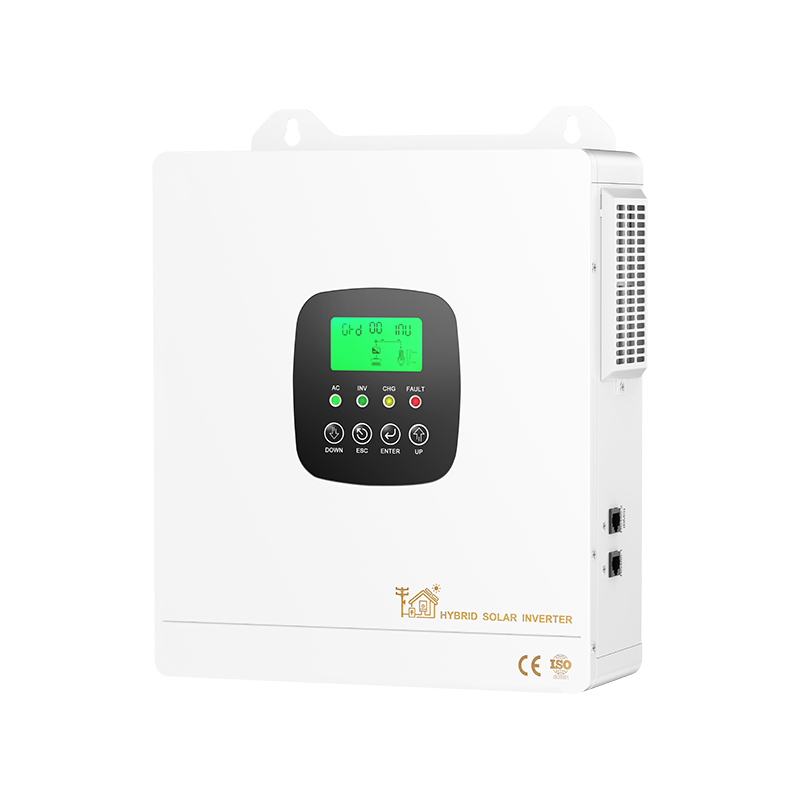

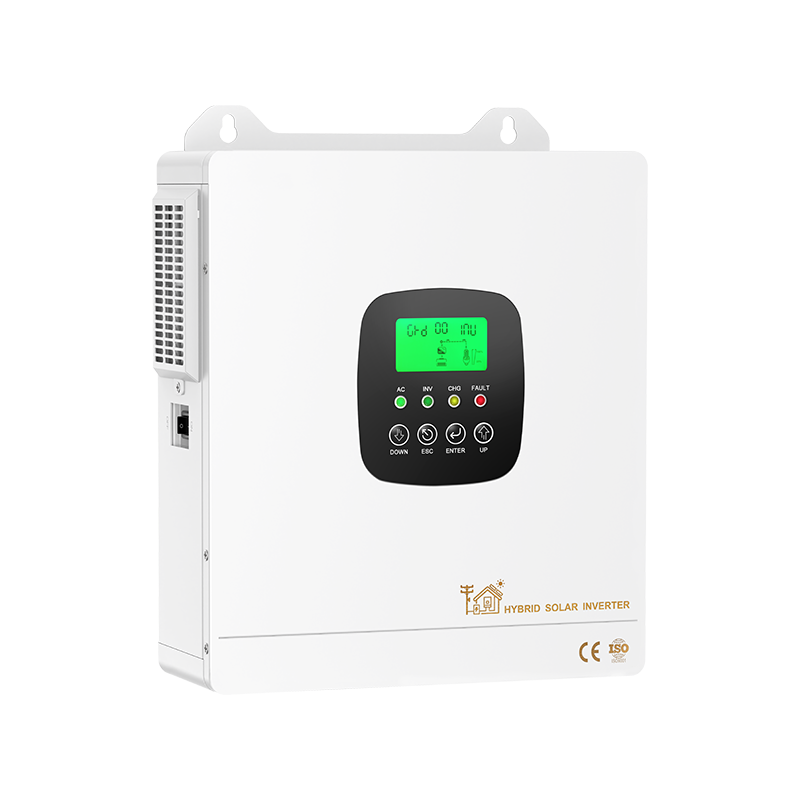

Home Inverter System: 3kW Hybrid Solar Inverter 24V

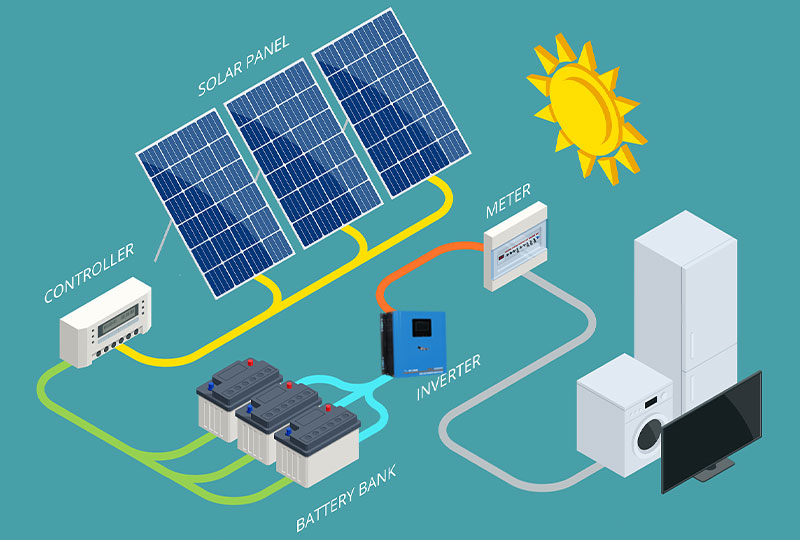

1.Home inverter system: All-in-One Power Solution
The home inverter system ARCV 33224 is an all-in-one 3.3kW hybrid solar inverter that masterfully combines the functions of a solar inverter, an advanced MPPT solar charger, and a battery charger. The solar hybrid inverter for home is engineered for reliability, making the solar inverter perfect for home energy systems, remote cabins, and small business backup power, ensuring you have stable electricity whenever you need it.
2.Flexible Working Modes
Gain true energy independence with three intelligent working modes. As a sophisticated 24V 3kW inverter for home, this 3.3kW hybrid solar inverter allows you to sell excess power back to the utility (On-Grid), operate completely independently from the public grid (Off-Grid), or blend solar, battery, and grid power for optimal savings and reliability (Hybrid). The ARCV 33224 3.3kW hybrid solar inverter also features programmable output and charging priority settings, giving you full control over your energy management strategy.
3.Superior Solar Charging Performance
At the core of this power inverter for home solar system is an efficient MPPT. With a wide PV input voltage range of 40-450VDC and a maximum PV array power of 5000W, this MPPT solar inverter can work with various solar panel configurations. The MPPT charge controller boasts an efficiency of ≥99.9%, ensuring the 3.3kW hybrid solar inverter harvests the maximum possible energy throughout the day, even in less-than-ideal weather conditions.
4.Advanced 24V Battery & Battery-less Support
Designed for a 24V solar inverter for home, this power inverter for home solar system offers broad compatibility with both traditional lead-acid and modern lithium batteries, featuring a dedicated BMS communication port for smart battery management. A standout feature is the ability to function as a Battery-less Solar Inverter. During sufficient sunlight, the inverter can directly power your appliances from the solar panels without needing a battery.
5.Reliable Pure Sine Wave Output & Protections
The 3kW hybrid solar inverter delivers 3300W of continuous, clean pure sine wave power, which is safe for all your sensitive electronics. This 24V power inverter for home is built to last, with automatic protections against battery low voltage, overload, output short circuits, and over-temperature. The LCD+LED display and optional WiFi monitoring allow you to track system status and performance with ease.
Specification
| Model | ARCV 33224 | |||||||||||||
| PV | Max PV Input Power | 5000W | ||||||||||||
| MPPT Tracking Voltage Range | 40VDC-450VDC | |||||||||||||
| Rated Voltage | 240VDC | |||||||||||||
| Max PV Input Voltage voc (at the lowest temperature) | 500VDC | |||||||||||||
| Max PV Input Current | 18A | |||||||||||||
| MPPT Tracking Channels (Input Routed ) | 1 Routed | |||||||||||||
| Battery&Charging | Battery Type | Lead-acid Battery/Lithium Battery | ||||||||||||
| Custom Battery (Charging and discharging paramcters of different types of batteriescan be set through the operation board) | ||||||||||||||
| Rated Battery Voltage | 24VDC | |||||||||||||
| Battery voltage Range | 21~30VDC(default) | |||||||||||||
| Max PV Charging Current | 120A | |||||||||||||
| Max AC Charging Current | 80A | |||||||||||||
| Max Charging Current | 120A | |||||||||||||
| On-Grid Operation | ||||||||||||||
| On-Grid Output (AC) | Rated Output Power | 3300W | ||||||||||||
| Rated Output Voltage | 220VAC/230VAC/240VAC | |||||||||||||
| Grid Voltage Range | 187VAC~264VAC | |||||||||||||
| Rated Output Frequency | 50Hz/60Hz | |||||||||||||
| Frequency Range | 47Hz~52Hz(50Hz),57Hz~62Hz(60Hz) | |||||||||||||
| Rated Output Current | 15A/14.3A/13.8A | |||||||||||||
| Power Factor | ＞0.98(Rated Power) | |||||||||||||
| Off-Grid Operation | ||||||||||||||
| AC Input | Rated Input voltage | 220V /230V/240V | ||||||||||||
| Mains input voltage range | 165VAC-280VAC/ 120VAC~280VAC(Can be set) | |||||||||||||
| Rated Input Frequency | 50Hz/60Hz | |||||||||||||
| Input Frequency Range | 45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz) | |||||||||||||
| AC Output | Rated Output Power | 3300W | ||||||||||||
| Rated Output Voltage | 220V /230V/240V | |||||||||||||
| Output Voltage Accuracy | ±2% | |||||||||||||
| Rated Input Frequency | 50Hz/60Hz | |||||||||||||
| Output Frequency Accuracy | ±1% | |||||||||||||
| Output Wave | Pure Sine Wave | |||||||||||||
| Hybrid Operation (Complementary Mode) | ||||||||||||||
| AC Input | Rated Input voltage | 220V /230V/240V | ||||||||||||
| Mains input voltage range | 187VAC~264VAC | |||||||||||||
| Rated Input Frequency | 50Hz/60Hz | |||||||||||||
| Input Frequency Range | 47Hz~52Hz(50Hz)，57Hz-62Hz(60Hz) | |||||||||||||
| AC Output | Rated Output Power | 3300W | ||||||||||||
| Rated Voltage Rated | 220VAC/230VAC/240VAC | |||||||||||||
| Output Current | 15A/14.3A/13.8A | |||||||||||||
| Regular Parameters | ||||||||||||||
| Maximum Conversion Efficiency (Battery Discharge) | 94%(peak value) | |||||||||||||
| MPPT Tracking Efficiency | ≥99.9 | |||||||||||||
| Transfer Time | 10ms(Typical value) | |||||||||||||
| Display | LCD+LED | |||||||||||||
| Cooling Method | Cooling fan in intelligent control | |||||||||||||
| Communication | RS485/Mobile APP(WIFI Monitoring or GPRS monitoring)(Optional) | |||||||||||||
| Protection Degree | IP20 | |||||||||||||
| Installation | Wall-Mounted | |||||||||||||
| Protection Degree | Battery low voltage alarm | 22VDC（default value） | ||||||||||||
| Battery low voltage protection | 21VDC（default value） | |||||||||||||
| Anti-islanding protection | ≤2S | |||||||||||||
| overload power protection | Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode) | |||||||||||||
| Inverter output short circuit protection | Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode) | |||||||||||||
| Temperature protection | ＞90 ℃(Turn off inverter and charging) | |||||||||||||
| Environment | Operating temperature | -10℃~50℃ | ||||||||||||
| Storage temperature | -15℃~60℃ | |||||||||||||
| Noise | ≤55dB | |||||||||||||
| Elevation | 2000m（More than derating） | |||||||||||||
| Humidity | 0%~95% , No condensation | |||||||||||||
| Dimension and Weight | ||||||||||||||
| Product Size(L*W*Hmm) | 325*275*102 | |||||||||||||
| Package Size(L*W*Hmm) | 400*330*167 | |||||||||||||
| N.W.(kg) | 5.5 | |||||||||||||
| G.W.(kg) | 6.5 | |||||||||||||
| Note: All specifications are subject to change without prior notice | ||||||||||||||
