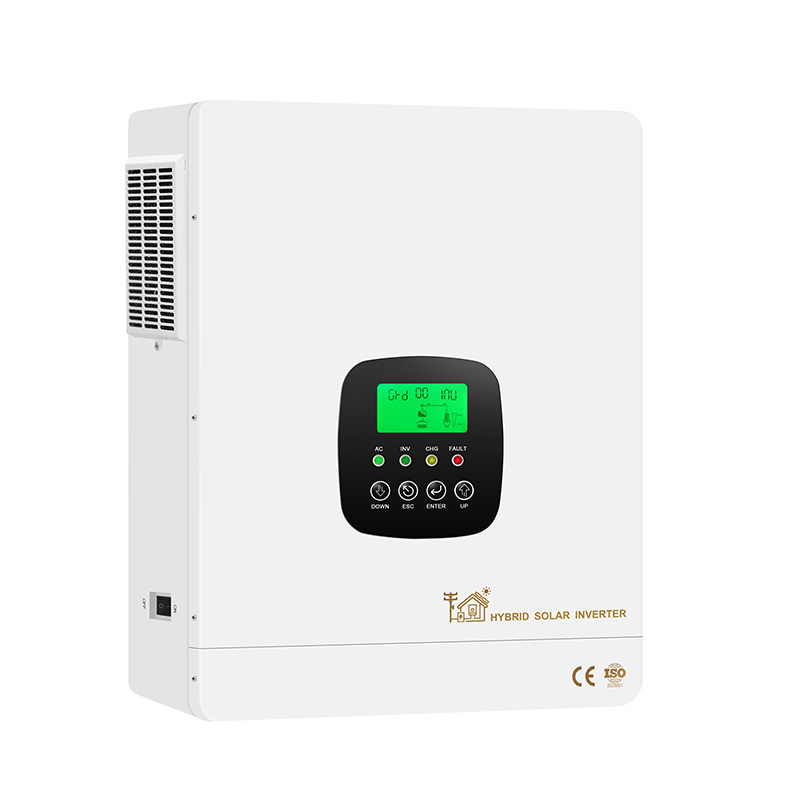

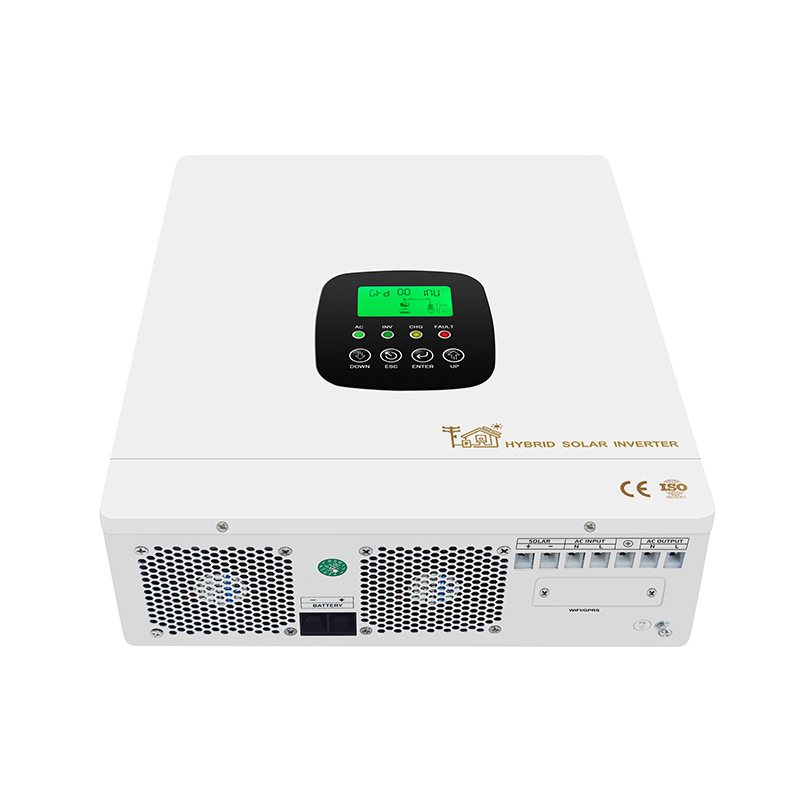

Solar Inverter For Home 6kW Hybrid Solar Inverter
1.Power Density Redefined Design
This advanced hybrid solar inverter allows for remarkable power density, resulting in a significantly smaller physical footprint and reduced net weight of 8 kg. The compact Product Size(L*W*Hmm) 390*320*112 mm simplify logistics and installation, even in space-constrained environments. Maximum conversion efficiency of up to 94%(peak value), ensuring that every possible watt generated by your solar array is captured and utilized.
2.Bidirectional Energy Flow
This household solar inverter features a sophisticated energy storage design. The 6kW hybrid inverter's powerful built-in charger delivers a maximum charging current of 120A, ensuring rapid energy storage and retrieval when needed most. The 6kW hybrid inverter can intelligently manage power in two directions.
This means both the photovoltaic (PV) array and the utility grid can be used to charge the connected 48VDC battery bank, allowing users to store low-cost grid energy during off-peak hours and deploy the stored energy when grid prices are high.
3.Advanced MPPT and Operational Flexibility: Adapt to Any Condition
The MPPT system boasts an exceptionally wide tracking voltage range of 80VDC-450VDC. With a tracking efficiency of ≥99.9%, this hybrid solar inverter ensures it captures more solar energy throughout the day, even under suboptimal light conditions. With a maximum PV input power of 7000W, this hybrid PV inverter is built to handle substantial solar inputs and perfect for your to build own home power inverter systems.
Users can easily configure the working mode via the intuitive LCD+LED interface to function as a grid-connected inverter, a completely independent off-grid inverter, or a seamless Hybrid Solar Inverter that balances both.
4.Smart Integration

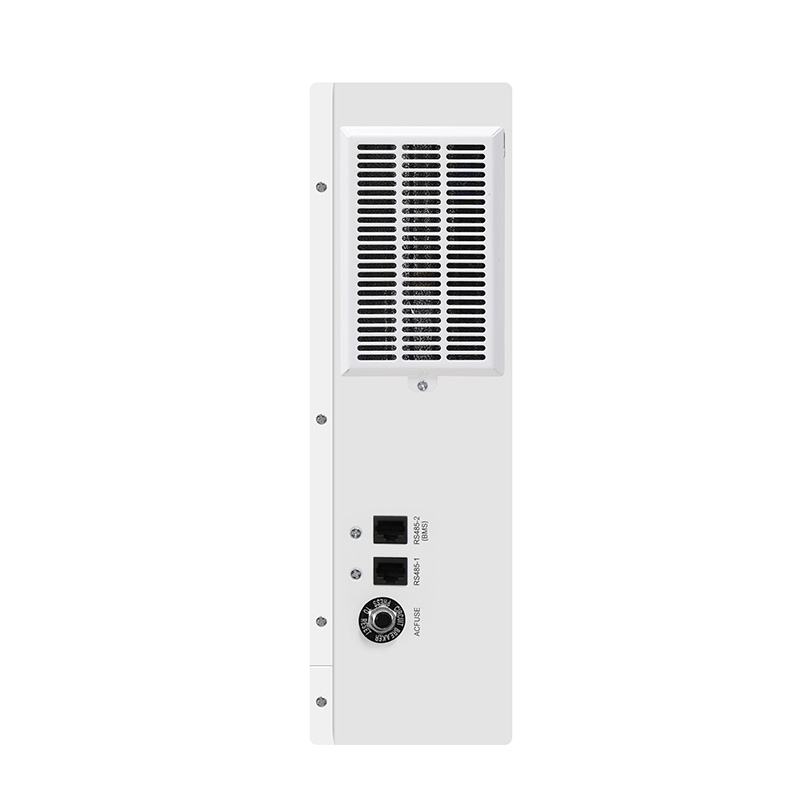

The hybrid Solar Inverter is equipped with a BMS (Battery Management System) communication function via an RS485 port, ensuring seamless integration and optimized performance with leading lithium battery brands. This intelligent communication extends battery life and maintains system safety and efficiency.
Users can set the grid-connected current, define output priority (Solar, Battery, or Utility), and configure charging priority to perfectly match site-specific requirements and energy goals through this 6kW hybrid inverter.
Parameters ___Household Solar Inverter
| Specification | Hybrid Operation (Complementary Mode) | |||||||||||||||
| PV | Max PV Input Power | 7000W | AC Input | Rated Input voltage | 220V /230V/240V | |||||||||||
| MPPT Tracking Voltage Range | 80VDC-450VDC | Mains input voltage range | 187VAC~264VAC | |||||||||||||
| Rated Voltage | 240VDC | Rated Input Frequency | 50Hz/60Hz | |||||||||||||
| Max PV Input Voltage voc (at the lowest temperature) | 500VDC | Input Frequency Range | 47Hz~52Hz(50Hz)，57Hz-62Hz(60Hz) | |||||||||||||
| AC Output | Rated Output Power | 6300W | ||||||||||||||
| Max PV Input Current | 27A | Rated Voltage Rated | 220VAC/230VAC/240VAC | |||||||||||||
| MPPT Tracking Channels (Input Routed ) | 1 Routed | Output Current | 28.6A/27.4A/26.2A | |||||||||||||
| Regular Parameters | ||||||||||||||||
| Battery&Charging | Battery Type | Lead-acid Battery/Lithium Battery | Maximum Conversion Efficiency | 94%(peak value) | ||||||||||||
| Custom Battery (Charging and discharging paramcters of different types of batteriescan be set through the operation board) | (Battery Discharge) | |||||||||||||||
| Rated Battery Voltage | 48VDC | MPPT Tracking Efficiency | ≥99.9 | |||||||||||||
| Battery voltage Range | 42~60VDC(default) | Transfer Time | 10ms(Typical value) | |||||||||||||
| Max PV Charging Current | 120A | Display | LCD+LED | |||||||||||||
| Max AC Charging Current | 80A | Cooling Method | Cooling fan in intelligent control | |||||||||||||
| Max Charging Current | 120A | Communication | RS485/Mobile APP(WIFI Monitoring or GPRS monitoring)(Optional) | |||||||||||||
| On-Grid Operation | Protection Degree | IP20 | ||||||||||||||
| On-Grid Output (AC) | Rated Output Power | 6300W | Installation | Wall-Mounted | ||||||||||||
| Rated Output Voltage | 220VAC/230VAC/240VAC | Protection Degree | Battery low voltage alarm | 44VDC (default value） | ||||||||||||
| Grid Voltage Range | 187VAC~264VAC | Battery low voltage protection | 42VDC（default value） | |||||||||||||
| Rated Output Frequency | 50Hz/60Hz | Anti-islanding protection | ≤2S | |||||||||||||
| Frequency Range | 47Hz~52Hz(50Hz),57Hz~62Hz(60Hz) | overload power protection | Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode) | |||||||||||||
| Rated Output Current | 28.6A/27.4A/26.2A | Inverter output short circuit | Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode) | |||||||||||||
| Power Factor | ＞0.98(Rated Power) | protection | ||||||||||||||
| Off-Grid Operation | Temperature protection | ＞90 ℃(Turn off inverter and charging) | ||||||||||||||
| AC Input | Rated Input voltage | 220V /230V/240V | Environment | Operating temperature | -10℃~50℃ | |||||||||||
| Mains input voltage range | 165VAC-280VAC/ 120VAC~280VAC(Can be set) | Storage temperature | -15℃~60℃ | |||||||||||||
| Rated Input Frequency | 50Hz/60Hz | Noise | ≤55dB | |||||||||||||
| Input Frequency Range | 45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz) | Elevation | 2000m（More than derating） | |||||||||||||
| AC Output | Rated Output Power | 6300W | Humidity | 0%~95% ,No condensation | ||||||||||||
| Rated Output Voltage | 220V /230V/240V | Dimension and Weight | ||||||||||||||
| Output Voltage Accuracy | ±2% | Product Size(L*W*Hmm) | 390*320*112 | |||||||||||||
| Rated Input Frequency | 50Hz/60Hz | Package Size(L*W*Hmm) | 465*375*187 | |||||||||||||
| Output Frequency Accuracy | ±1% | N.W.(kg) | 8 | |||||||||||||
| Output Wave | Pure Sine Wave | G.W.(kg) | 9.5 | |||||||||||||
| Note: All specifications are subject to change without prior notice | ||||||||||||||||
