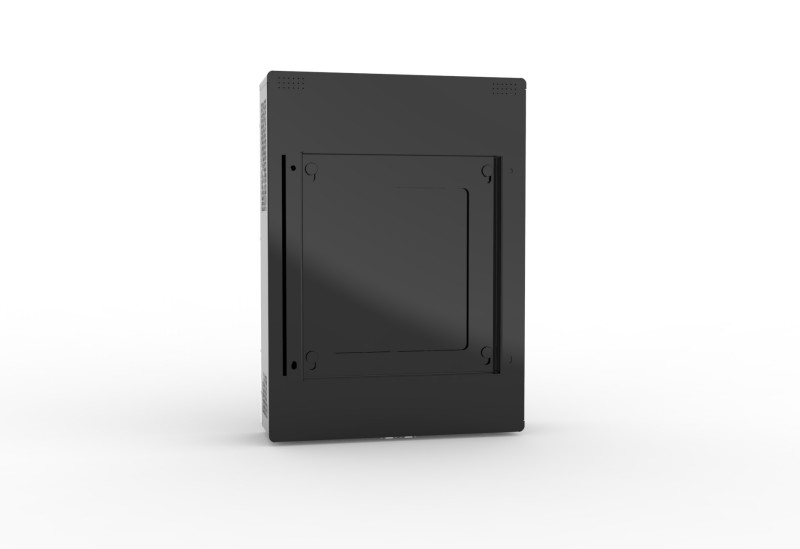

Off Grid Inverters 10kW Inverter 48V Home Solar Power Inverter
1. Unprecedented Power Output & Quality
Powering the Whole Home Inverter: The core strength of solar energy inverter (ARCV-10KC5LSUF) is its massive output capability. This premier 10kW solar energy inverter provides a continuous 10,000 watts of power and an astounding 20,000-watt peak surge capacity. Such substantial power ensures the Split phase inverter can dependably operate an entire household's electrical needs, including starting heavy-duty motor loads up to 6HP.
2. Professional-Grade Solar Harvesting with Dual MPPT
Advanced Dual MPPT Technology: Our solar power inverter (ARCV-10KC5LSUF), a superior Solar Power with Battery Storage inverter, is engineered with two independent Maximum Power Point Tracking (MPPT) channels. This configuration permits connections to two distinct solar arrays, ideal for roofs with multiple orientations or different panel models. Each MPPT channel, capable of handling up to 7,500W, optimizes its specific array autonomously, which significantly maximizes the total energy harvest in complex installations where single-MPPT Housing inverters would be less effective.
3. North American Design & Ultimate Scalability
Engineered for the U.S. Market: The powerful ARCV-10KC5LSUF Split phase inverter is built specifically for the North American grid standard. The inverter provides simultaneous 120V and 240V output from a single device. Such an integrated design is crucial for modern residences, enabling the direct powering of all household circuits and large 240V appliances, thereby eliminating the need for bulky external transformers. For expanding energy needs, up to six of these units can be paralleled.
4. Unmatched System Flexibility & Control
Intelligent Hybrid Operation: As a versatile 10kW solar energy inverter, the 10kW inverter(ARCV-10KC5LSUF) expertly manages and blends power from solar arrays, battery banks, and the utility grid or a generator. The advanced programming of the 10kW solar energy inverter permits full customization of energy flow. This control allows users to prioritize solar for direct self-consumption, bank energy for use during peak rate hours, or guarantee that critical loads remain powered at all times with a swift 10ms transfer time.
5. Robust Battery Management & Comprehensive Safety
Versatile Battery Compatibility: This high-capacity split phase inverter is engineered for flexibility, supporting an extensive range of energy storage solutions. The solar power inverter (ARCV-10KC5LSUF) is compatible with multiple 48V battery chemistries, including modern lithium-ion, traditional lead-acid, and even user-defined types. This compatibility, combined with a powerful 200A maximum mixed charging current, provides a customized approach to energy storage that perfectly aligns with specific performance requirements and budgetary goals.
Technical Parameters Table of American Split-Phase Technology(10kW Inverter)
Technical Parameters Table of American Split-Phase Technology(10kW Inverter)
Model | ARCV-10KC5LSUF |
Inverter Output | |
Rated Output | 10,000W |
MAX Peak Power | 20,000W |
Rated Output Voltage | 120V, (Single-phase) / 240V, (split-phase) |
Motor Load Capacity | 6HP |
Rated Power | 50/60Hz |
Output Voltage Waveform | Pure sine wave |
Transfer Time | 10ms |
The number of units that can be paralleled | 1-6 Units |
Overload protection | Adopting an inverse time overload protection algorithm |
Battery | |
Battery Type | Lithium-ion battery /lead-acid battery/User-defined |
Rated Battery Voltage | 48V |
Battery Voltage Range | 40~60V |
Max PV Charging Current | 200A |
Max mains/generator charging current | 120A |
Max mixed charging current | 200A |
PV Input | |
The number of MPPT channels | 2 |
Maximum input power | 7,500W+7,500W |
Maximum input current | 22A+22A |
Maximum open-circuit voltage | 500V+500V |
MPPT operating voltage range | 125～425V |
Utility/Generator Input | |
Input voltage range | 90～275V |
Input frequency range | 50/60Hz |
Bypass overload current | 63A |
Efficiency | |
MPPT tracking efficiency | 99.9% |
Max efficiency of battery inverter | 92% |
Universal | |
Dimensions | 450*620*142mm |
Weight | 27kg |
Protecting Level | IP20/IP54 |
Operating Temperature Range | -10~55 C,>45℃ Derating |
Noise | <60dB |
Heat dissipation | Intelligent air cooling |
Warranty Period | 3 Years |
Communication | |
Communication method | Wi-Fi/Bluetooth/RS 485/CAN/USB/Dry contact |
External module (optional) | 4G |
PRODUCTION LINES
OUR EXHIBITION
We are a leading innovator and manufacturer in lithium battery technology, dedicated to engineering and manufacturing high-quality LiFePO4 solar batteries and power systems. Our core business involves the complete lifecycle of product development, from initial design to final production of dependable lithium battery packs. We proudly serve diverse sectors with customized solutions for energy storage, critical backup power systems, and compatible inverters and solar panels.
Based on automated production technology, Arcvolt are able to meet our customers' product needs quickly. However, the exact lead time depends on the quantity and the season you place the order.
Usage scenario: wall-mounted batteries, rack-mounted batteries, and stacked batteries. Voltage: 48V or 51.2V batteries, low/high voltage batteries Application: Residential storage batteries, industrial and commercial energy storage batteries.
While the typical home system uses 2 or 3 batteries, the perfect number for you is a personal choice. It all comes down to what you want to power during a grid outage and for how long. Do you need to run just the essentials or your whole house?
Yes, going completely off-grid is possible, but it's a significant step beyond standard solar with battery backup. A true off-grid system requires a much larger solar array and battery bank to power your home 24/7, making it a substantial investment. You also need a reliable backup source, like a generator, for days without sun. It's important to note that in North Carolina, disconnecting a home from the utility grid can be a complex process.
We accept EXW,FOB,CFR,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Absolutely. Our in-house design team specializes in OEM and ODM projects to bring your brand's vision to life. Simply provide us with your concept, high-resolution logo, and any text or images you'd like to include. We will then create a professional design proof for your final approval before we proceed.
Certifications are a key part of our pre-production checklist. We start by confirming with you which certifications are needed. These requirements are then integrated into the project timeline to ensure completion before shipment, and are formally documented in the signed agreement.
We offer lifetime technical support, with our engineers available 24/7 to provide prompt online assistance.
Yes, most of Arcvolt's inverters are designed to be scalable, meaning your system can grow with your needs. However, it's something that requires planning. Before adding more panels, it's essential to confirm that your current inverter can handle the additional power. We always recommend discussing your future plans with a professional to ensure your initial system is future-ready.
It depends on whether you have batteries. For Solar + Battery systems: A hybrid inverter is essential. It seamlessly manages power from panels and batteries in a single unit. For Solar-Only systems: Traditional inverters (like string or microinverters) are an option. The main advantage of a hybrid inverter is that it eliminates the need for a separate charge controller, making for a cleaner and more efficient installation.
Selecting the right inverter is one of the most important decisions you'll make for your solar project. While technical specifications matter, the long-term value comes from the manufacturer. Arcvolt advise customers to look beyond the data sheet and assess the company on these five critical points: their warranty, quality control standards, customer service responsiveness, installation support, and competitive pricing.
Generally, you want the inverter's size to match your solar array's power output. So, if you're installing a 5,000-watt solar system, you'll need an inverter of at least 5,000 watts to handle the load.
Yes, samples are available upon request as part of the qualification process for bulk orders. Please reach out to a member of our customer service team to discuss your specific requirements and they will assist you with the next steps.
Think of it as your personal energy bank. During the day, it saves up all the extra, unused power your solar panels generate. Then, you can draw from that stored energy whenever you need it—at night, during a power outage, or to avoid high-cost peak hours. For homeowners, this means energy independence and peace of mind. For businesses, it's a powerful tool to slash electricity bills.
Smart inverters are central to a system's reliability. Our inverter provide a constant stream of performance data, giving you a real-time view of your entire solar array. If a problem arises, the inverter's diagnostic tools can pinpoint the exact issue, which significantly speeds up repairs. This intelligent monitoring is key to preventing small problems from becoming big ones and guarantees the consistent, reliable operation you expect.
MPPT is a crucial technology that ensures you're not wasting sunlight. Because sun conditions are always changing, there is always a single, optimal point where your solar panels operate most efficiently. MPPT is the brain that constantly scans and adjusts the system to find and stay locked onto that "maximum power point." This guarantees you are harvesting the most energy possible from your panels at any given moment.
It's a question of priorities, and the logical first step is always generation. You have to make power before you can store it. Solar panels directly reduce your utility bills by producing electricity. Batteries give you control over when you use the excess electricity you've already made. We help our customers design a system that maximizes their solar panel array first, as this delivers the biggest and fastest return on investment.
A grid-tied inverter is the standard type used to reduce your electricity bills with solar. It safely connects your solar system to the utility's grid, allowing you to seamlessly feed any surplus power you produce back to the utility. In return, you receive credits on your bill for that energy, a process known as net metering. For safety, these inverters automatically shut down during a power outage.
The exact amount of power you generate is unique to your home and depends on your system's size, your roof's orientation, and how much direct sun you get. However, to give you a real-world idea, our typical 6kW home system can produce around 30kWh of electricity on a clear, sunny day. For most households, that's more than enough to cover all of your energy needs for a full 24 hours.
