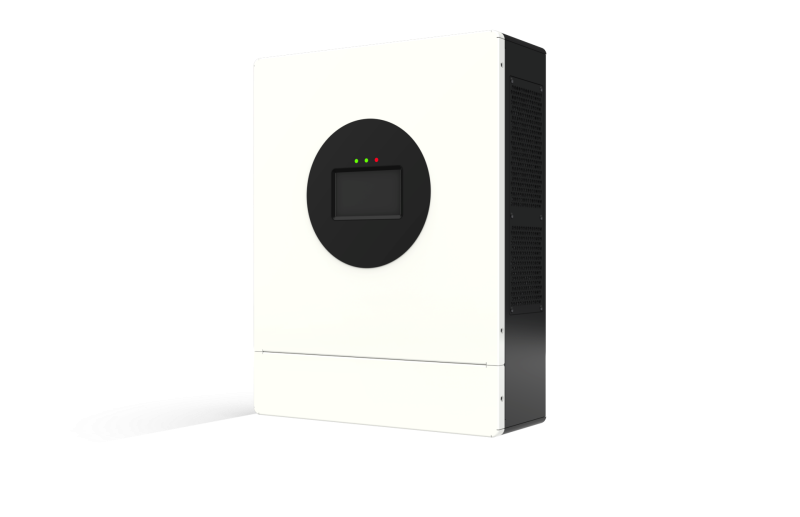

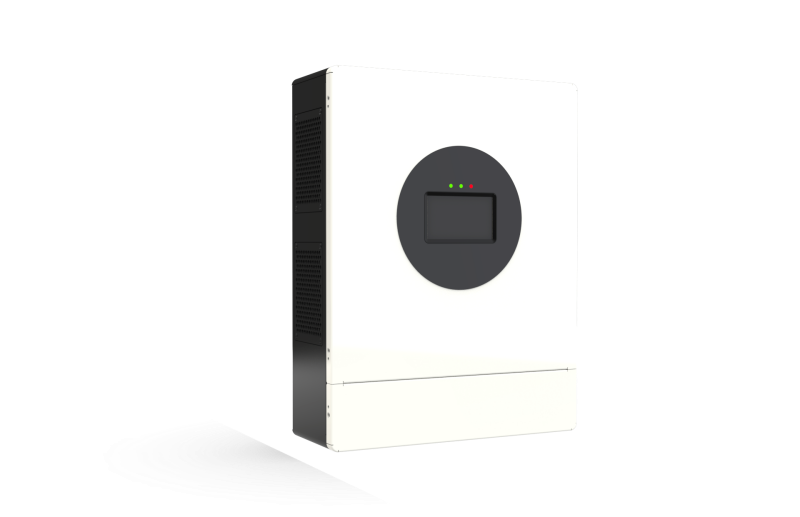

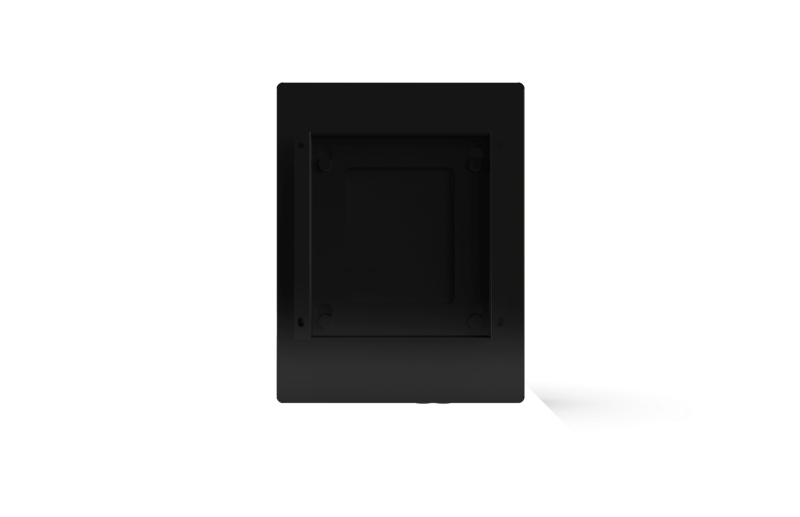

House Solar Inverter 6kW Split phase inverters 48V
1. Dominant Power Output & Quality
Exceptional Power Capacity: The ARCV-6KC6LSUF 6kW home solar power inverter delivers a formidable 6000W of continuous power and handles an incredible 12000W peak surge. This immense capability allows the house solar inverter to effortlessly start demanding motor loads up to 4.8HP, making this 6kW inverter ideal for well-equipped homes and workshops.
2. Advanced System for Total Control
Intelligent Multi-Source Management: As a top-tier home solar power inverter, the ARCV-6KC6LSUF intelligently manages power from solar, batteries, and the grid or a generator, allowing users to prioritize self-consumption and reduce electricity costs. The 6kW inverter features an automatic transfer switch that responds in just 10ms, providing a seamless, uninterruptible power supply to keep essential loads running without a flicker.
3. North American Standard Split-Phase Design
Engineered for the U.S. Market: This UL1741 certified Split phase inverter is engineered for the North American market, delivering simultaneous 120V/240V output from a single unit. This feature directly powers everything from standard outlets to large 240V appliances like central air conditioners, eliminating the need for external transformers.
Massive System Scalability: The true strength of this Power inverter for home solar system is its scalability. Connect up to six ARCV-6KC6LSUF units in parallel to expand the total output to an immense 36kW, making this solution perfect for large homes or small businesses.
4. High-Capacity Energy Harvesting & Storage
Maximize Your Solar Investment: The home solar power inverter maximizes your solar investment by supporting a massive 9000W PV array. This House solar inverter's advanced MPPT controller operates at 99.9% tracking efficiency, ensuring every possible watt is harvested from your solar panels.
Flexible Battery Compatibility: This powerful 48V Split phase inverter offers maximum storage flexibility. The home solar power inverter ARCV-6KC6LSUF is fully compatible with both modern lithium-ion (with BMS communication) and traditional 48V lead-acid battery banks, empowering you to build a system that fits your budget and performance needs.
5. Safety & Smart Connectivity
Robust Multi-Layer Protection: Built for long-term reliability, the 6kW inverter features comprehensive software and hardware protections against common electrical faults. A durable IP20/IP54-rated enclosure ensures stable operation by protecting internal components in various environments.
| Inverter Output | Utility/Generator Input | ||
| Rated Output | 6000W | Input voltage range | 90V~140V |
| MAX Peak Power | 12000W | Input frequency range | 60/55-65Hz |
| Rated Output Voltage | 120V,(Single-phase)/240V,(split-phase) | Bypass overload current | 45A |
| Motor Load Capacity | 4.8HP | Efficiency | |
| Rated Power | 60Hz | MPPTMPPT tracking efficiency | 99.90% |
| Output Voltage Waveform | (Pure sine wave) | Max efficiency of battery inverter | 93% |
| Transfer Time | (10ms(typical value). The maximum value is 20ms for single unit and 30ms for parallel operation.) | Universal | |
| The number of units that can be paralleled | 6 | Dimensions | 472*422*130mm(IP20) |
| Battery | Weight | 17.2kg(IP20) | |
| Battery Type | (Lithium-ion battery /lead-acid battery) | Protecting Level | IP20/IP54 |
| Rated Battery Voltage | 48V | Operating Temperature Range | -10~55℃ |
| Battery Voltage Range | 40~60V | Noise | ≤45dB |
| Max PV Charging Current | 120A | Heat dissipation | Intelligent air cooling |
| Max mains/generator charging current | 100A | Warranty Period | 3(Years) |
| Max mixed charging current | 120A | Communication | |
| PV Input | Communication method | RS485/CAN/WIFI/Bluetooth/4G(Optional) | |
| MPPT (The number of MPPT channels) | 1 | Certification | |
| Maximum input power | 9000W | Overview | UL1741 |
| Maximum input current | 27A | ||
| Maximum open-circuit voltage | 500V | ||
| MPPTMPPT operating voltage range | 125~425V | ||
PRODUCTION LINES
OUR EXHIBITION
We are a leading innovator and manufacturer in lithium battery technology, dedicated to engineering and manufacturing high-quality LiFePO4 solar batteries and power systems. Our core business involves the complete lifecycle of product development, from initial design to final production of dependable lithium battery packs. We proudly serve diverse sectors with customized solutions for energy storage, critical backup power systems, and compatible inverters and solar panels.
Based on automated production technology, Arcvolt are able to meet our customers' product needs quickly. However, the exact lead time depends on the quantity and the season you place the order.
Usage scenario: wall-mounted batteries, rack-mounted batteries, and stacked batteries. Voltage: 48V or 51.2V batteries, low/high voltage batteries Application: Residential storage batteries, industrial and commercial energy storage batteries.
While the typical home system uses 2 or 3 batteries, the perfect number for you is a personal choice. It all comes down to what you want to power during a grid outage and for how long. Do you need to run just the essentials or your whole house?
Yes, going completely off-grid is possible, but it's a significant step beyond standard solar with battery backup. A true off-grid system requires a much larger solar array and battery bank to power your home 24/7, making it a substantial investment. You also need a reliable backup source, like a generator, for days without sun. It's important to note that in North Carolina, disconnecting a home from the utility grid can be a complex process.
We accept EXW,FOB,CFR,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Absolutely. Our in-house design team specializes in OEM and ODM projects to bring your brand's vision to life. Simply provide us with your concept, high-resolution logo, and any text or images you'd like to include. We will then create a professional design proof for your final approval before we proceed.
Certifications are a key part of our pre-production checklist. We start by confirming with you which certifications are needed. These requirements are then integrated into the project timeline to ensure completion before shipment, and are formally documented in the signed agreement.
We offer lifetime technical support, with our engineers available 24/7 to provide prompt online assistance.
Yes, most of Arcvolt's inverters are designed to be scalable, meaning your system can grow with your needs. However, it's something that requires planning. Before adding more panels, it's essential to confirm that your current inverter can handle the additional power. We always recommend discussing your future plans with a professional to ensure your initial system is future-ready.
It depends on whether you have batteries. For Solar + Battery systems: A hybrid inverter is essential. It seamlessly manages power from panels and batteries in a single unit. For Solar-Only systems: Traditional inverters (like string or microinverters) are an option. The main advantage of a hybrid inverter is that it eliminates the need for a separate charge controller, making for a cleaner and more efficient installation.
Selecting the right inverter is one of the most important decisions you'll make for your solar project. While technical specifications matter, the long-term value comes from the manufacturer. Arcvolt advise customers to look beyond the data sheet and assess the company on these five critical points: their warranty, quality control standards, customer service responsiveness, installation support, and competitive pricing.
Generally, you want the inverter's size to match your solar array's power output. So, if you're installing a 5,000-watt solar system, you'll need an inverter of at least 5,000 watts to handle the load.
Yes, samples are available upon request as part of the qualification process for bulk orders. Please reach out to a member of our customer service team to discuss your specific requirements and they will assist you with the next steps.
Think of it as your personal energy bank. During the day, it saves up all the extra, unused power your solar panels generate. Then, you can draw from that stored energy whenever you need it—at night, during a power outage, or to avoid high-cost peak hours. For homeowners, this means energy independence and peace of mind. For businesses, it's a powerful tool to slash electricity bills.
Smart inverters are central to a system's reliability. Our inverter provide a constant stream of performance data, giving you a real-time view of your entire solar array. If a problem arises, the inverter's diagnostic tools can pinpoint the exact issue, which significantly speeds up repairs. This intelligent monitoring is key to preventing small problems from becoming big ones and guarantees the consistent, reliable operation you expect.
MPPT is a crucial technology that ensures you're not wasting sunlight. Because sun conditions are always changing, there is always a single, optimal point where your solar panels operate most efficiently. MPPT is the brain that constantly scans and adjusts the system to find and stay locked onto that "maximum power point." This guarantees you are harvesting the most energy possible from your panels at any given moment.
It's a question of priorities, and the logical first step is always generation. You have to make power before you can store it. Solar panels directly reduce your utility bills by producing electricity. Batteries give you control over when you use the excess electricity you've already made. We help our customers design a system that maximizes their solar panel array first, as this delivers the biggest and fastest return on investment.
A grid-tied inverter is the standard type used to reduce your electricity bills with solar. It safely connects your solar system to the utility's grid, allowing you to seamlessly feed any surplus power you produce back to the utility. In return, you receive credits on your bill for that energy, a process known as net metering. For safety, these inverters automatically shut down during a power outage.
The exact amount of power you generate is unique to your home and depends on your system's size, your roof's orientation, and how much direct sun you get. However, to give you a real-world idea, our typical 6kW home system can produce around 30kWh of electricity on a clear, sunny day. For most households, that's more than enough to cover all of your energy needs for a full 24 hours.
