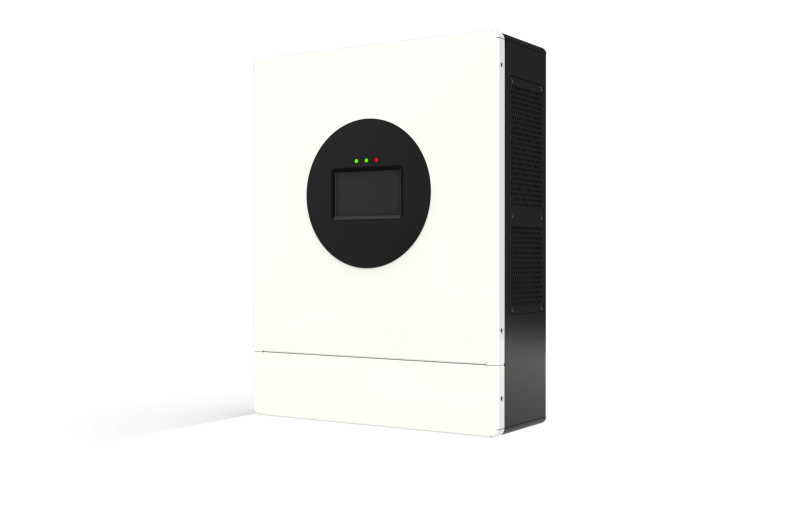

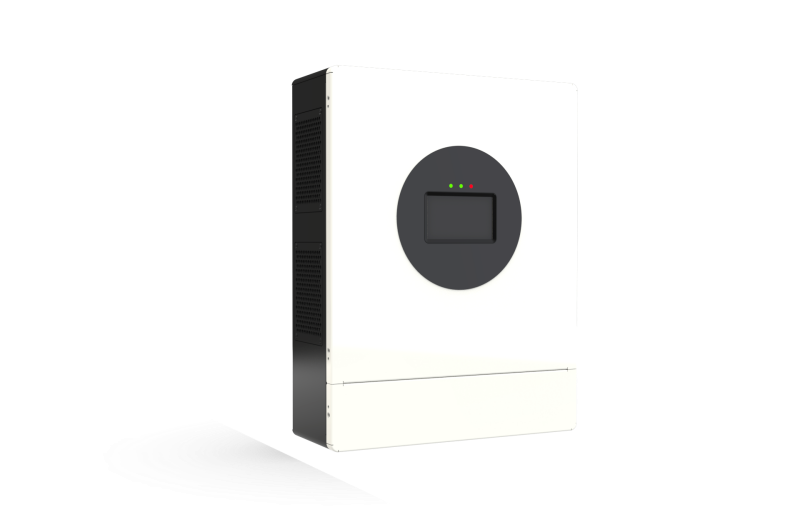

Home Solar Inverter: 5kW Inverter, 48V off grid solar inverter
1. Superior Power Output
High-Capacity Performance: The core of the ARCV-5KC6LSUF 5kW home solar inverter is its powerful output capability. This 5kW solar inverter delivers a continuous rated power of 5KVA and can handle a massive peak surge of 10000W. This impressive power makes the house inverters capable of starting demanding loads like air conditioners and pumps up to 4.8HP with ease.
2. Advanced System for Energy Independence

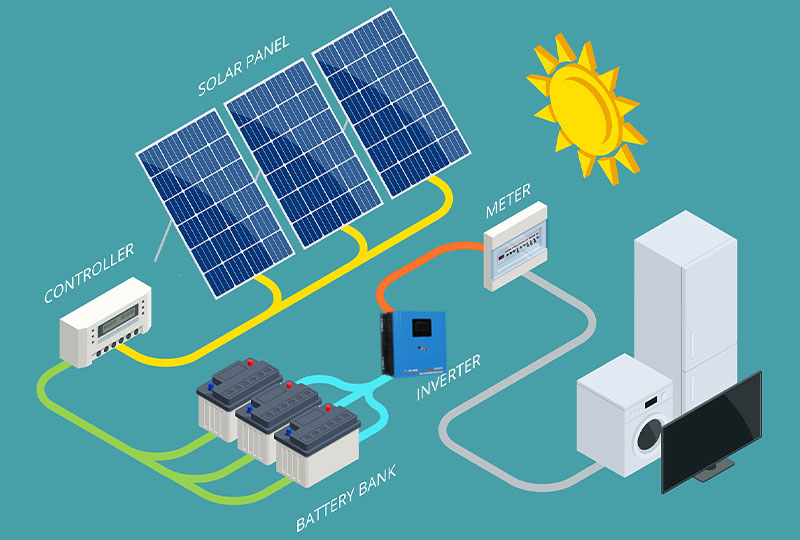

Intelligent Multi-Source Management: As a state-of-the-art 5kW inverter, the solar power inverter ARCV-5KC6LSUF seamlessly integrates multiple power sources: solar panels (PV), a battery bank, and the utility grid or a generator. This intelligent functionality allows the Home inverter system to prioritize solar power, store excess energy in batteries, and draw from the grid only when necessary, minimizing your electricity bills.
3. North American Standard Split-Phase Design
Tailored for U.S. Homes: Specifically designed for the North American market, this UL1741 certified split phase inverter provides simultaneous 120V and 240V output. This feature allows the Solar power inverter for home to power everything from standard outlets and lighting (120V) to large appliances like dryers and electric stoves (240V) without the need for an external transformer.
Scalable System Expansion: For larger energy requirements, the parallel capability of the 5kW inverter for home is a significant advantage. You can connect up to six home solar inverter (ARCV-5KC6LSUF) units together, expanding your house inverter system's total power capacity to meet any future energy needs, offering incredible scalability.
4. Versatile Energy Storage Solutions
Broad Battery Compatibility: This powerful off grid solar inverter is engineered for maximum flexibility in energy storage. The ARCV-5KC6LSUF solar panel inverter is fully compatible with both modern, high-efficiency lithium-ion and traditional, cost-effective lead-acid battery banks operating at a 48V nominal voltage. With a maximum PV charging current of 120A and a max mixed charging current of 120A, the house inverter system ensures your batteries are charged quickly and safely.
5. Robust, Safe, and Reliable Construction
Comprehensive Protection: The solar power inverter(ARCV-5KC6LSUF) features a comprehensive suite of safety protections. The 5kW solar panel inverter is housed in a durable IP20/IP54-rated enclosure, protecting the internal components from dust and water ingress in various installation environments. An intelligent air-cooling system ensures optimal performance and longevity. With multiple communication options like RS485, CAN, WIFI, and optional 4G, monitoring your off grid solar inverter system's health and performance.
Technical Parameters Table of American Split-Phase Technology
5kW Inverter
| Model | ARCV-5KC6LSUF | PV Input | |
| Inverter Output | The number of MPPT channels | 1 | |
| Rated Output | 5000W | Maximum input power | 7500W |
| MAX Peak Power | 10000W | Maximum input current | 27A |
| Rated Output Voltage | 120V, (Single-phase) / 240V, (split-phase) | Maximum open-circuit voltage | 500V |
| Motor Load Capacity | 4.8HP | MPPT operating voltage range | 125V~425V |
| Rated Power | 60Hz | Utility/GeneratorInput | |
| Output Voltage Waveform | Pure sine wave | Input voltage range | 90V~140V |
| Transfer Time | (10ms(typical value). The maximum value is 20ms for single unit and 30ms for parallel operation.) | Input frequency range | 60/55-65Hz |
| The number of units that can be paralleled | 6 | Bypass overload current | 45A |
| Battery | Efficiency | ||
| Battery Type | Lithium-ion battery /lead-acid battery | MPPT tracking efficiency | 99.90% |
| Rated Battery Voltage | 48V | Max efficiency of battery inverter | 93% |
| Battery Voltage Range | 40~60V | Universal | |
| Max PV Charging Current | 120A | Dimensions | 472*422*130mm(IP20) |
| Max mains/generator charging current | 100A | Weight | 17.2kg(IP20) |
| Max mixed charging current | 120A | Protecting Level | IP20/IP54 |
| Max efficiency of battery inverter | 93% | Operating Temperature Range | -10~55℃ |
| Communication | Noise | ≤45dB | |
| Communication method | RS485/CAN/WIFI/Bluetooth/4G(Optional) | Heat dissipation | Intelligent air cooling |
| Certification | Warranty Period | 3Years | |
| Overview | UL1741 | ||
PRODUCTION LINES
OUR EXHIBITION
We are a leading innovator and manufacturer in lithium battery technology, dedicated to engineering and manufacturing high-quality LiFePO4 solar batteries and power systems. Our core business involves the complete lifecycle of product development, from initial design to final production of dependable lithium battery packs. We proudly serve diverse sectors with customized solutions for energy storage, critical backup power systems, and compatible inverters and solar panels.
Based on automated production technology, Arcvolt are able to meet our customers' product needs quickly. However, the exact lead time depends on the quantity and the season you place the order.
Usage scenario: wall-mounted batteries, rack-mounted batteries, and stacked batteries. Voltage: 48V or 51.2V batteries, low/high voltage batteries Application: Residential storage batteries, industrial and commercial energy storage batteries.
While the typical home system uses 2 or 3 batteries, the perfect number for you is a personal choice. It all comes down to what you want to power during a grid outage and for how long. Do you need to run just the essentials or your whole house?
Yes, going completely off-grid is possible, but it's a significant step beyond standard solar with battery backup. A true off-grid system requires a much larger solar array and battery bank to power your home 24/7, making it a substantial investment. You also need a reliable backup source, like a generator, for days without sun. It's important to note that in North Carolina, disconnecting a home from the utility grid can be a complex process.
We accept EXW,FOB,CFR,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Absolutely. Our in-house design team specializes in OEM and ODM projects to bring your brand's vision to life. Simply provide us with your concept, high-resolution logo, and any text or images you'd like to include. We will then create a professional design proof for your final approval before we proceed.
Certifications are a key part of our pre-production checklist. We start by confirming with you which certifications are needed. These requirements are then integrated into the project timeline to ensure completion before shipment, and are formally documented in the signed agreement.
We offer lifetime technical support, with our engineers available 24/7 to provide prompt online assistance.
Yes, most of Arcvolt's inverters are designed to be scalable, meaning your system can grow with your needs. However, it's something that requires planning. Before adding more panels, it's essential to confirm that your current inverter can handle the additional power. We always recommend discussing your future plans with a professional to ensure your initial system is future-ready.
It depends on whether you have batteries. For Solar + Battery systems: A hybrid inverter is essential. It seamlessly manages power from panels and batteries in a single unit. For Solar-Only systems: Traditional inverters (like string or microinverters) are an option. The main advantage of a hybrid inverter is that it eliminates the need for a separate charge controller, making for a cleaner and more efficient installation.
Selecting the right inverter is one of the most important decisions you'll make for your solar project. While technical specifications matter, the long-term value comes from the manufacturer. Arcvolt advise customers to look beyond the data sheet and assess the company on these five critical points: their warranty, quality control standards, customer service responsiveness, installation support, and competitive pricing.
Generally, you want the inverter's size to match your solar array's power output. So, if you're installing a 5,000-watt solar system, you'll need an inverter of at least 5,000 watts to handle the load.
Yes, samples are available upon request as part of the qualification process for bulk orders. Please reach out to a member of our customer service team to discuss your specific requirements and they will assist you with the next steps.
Think of it as your personal energy bank. During the day, it saves up all the extra, unused power your solar panels generate. Then, you can draw from that stored energy whenever you need it—at night, during a power outage, or to avoid high-cost peak hours. For homeowners, this means energy independence and peace of mind. For businesses, it's a powerful tool to slash electricity bills.
Smart inverters are central to a system's reliability. Our inverter provide a constant stream of performance data, giving you a real-time view of your entire solar array. If a problem arises, the inverter's diagnostic tools can pinpoint the exact issue, which significantly speeds up repairs. This intelligent monitoring is key to preventing small problems from becoming big ones and guarantees the consistent, reliable operation you expect.
MPPT is a crucial technology that ensures you're not wasting sunlight. Because sun conditions are always changing, there is always a single, optimal point where your solar panels operate most efficiently. MPPT is the brain that constantly scans and adjusts the system to find and stay locked onto that "maximum power point." This guarantees you are harvesting the most energy possible from your panels at any given moment.
It's a question of priorities, and the logical first step is always generation. You have to make power before you can store it. Solar panels directly reduce your utility bills by producing electricity. Batteries give you control over when you use the excess electricity you've already made. We help our customers design a system that maximizes their solar panel array first, as this delivers the biggest and fastest return on investment.
A grid-tied inverter is the standard type used to reduce your electricity bills with solar. It safely connects your solar system to the utility's grid, allowing you to seamlessly feed any surplus power you produce back to the utility. In return, you receive credits on your bill for that energy, a process known as net metering. For safety, these inverters automatically shut down during a power outage.
The exact amount of power you generate is unique to your home and depends on your system's size, your roof's orientation, and how much direct sun you get. However, to give you a real-world idea, our typical 6kW home system can produce around 30kWh of electricity on a clear, sunny day. For most households, that's more than enough to cover all of your energy needs for a full 24 hours.
