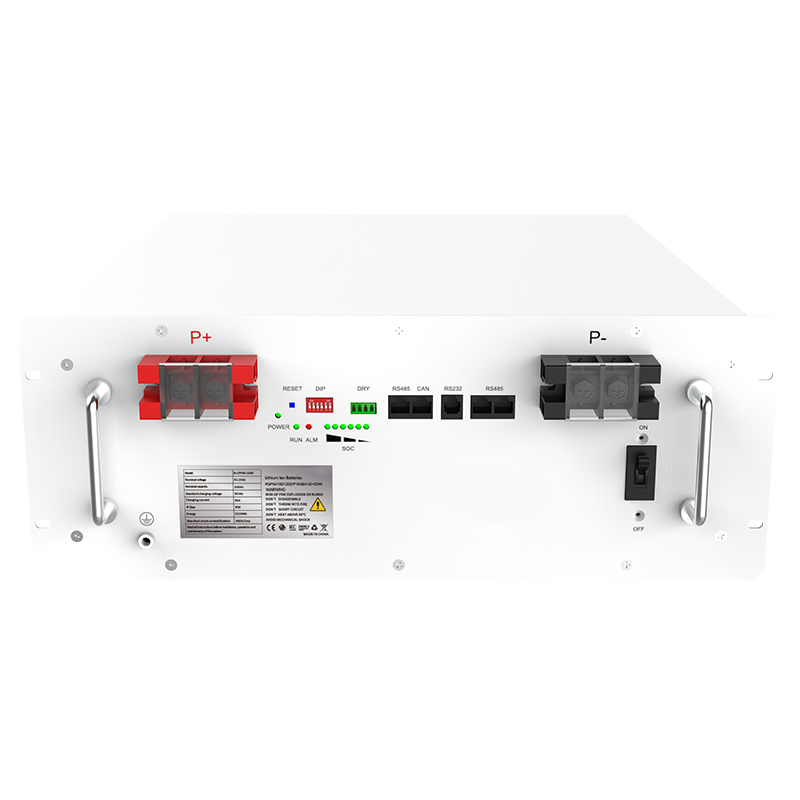

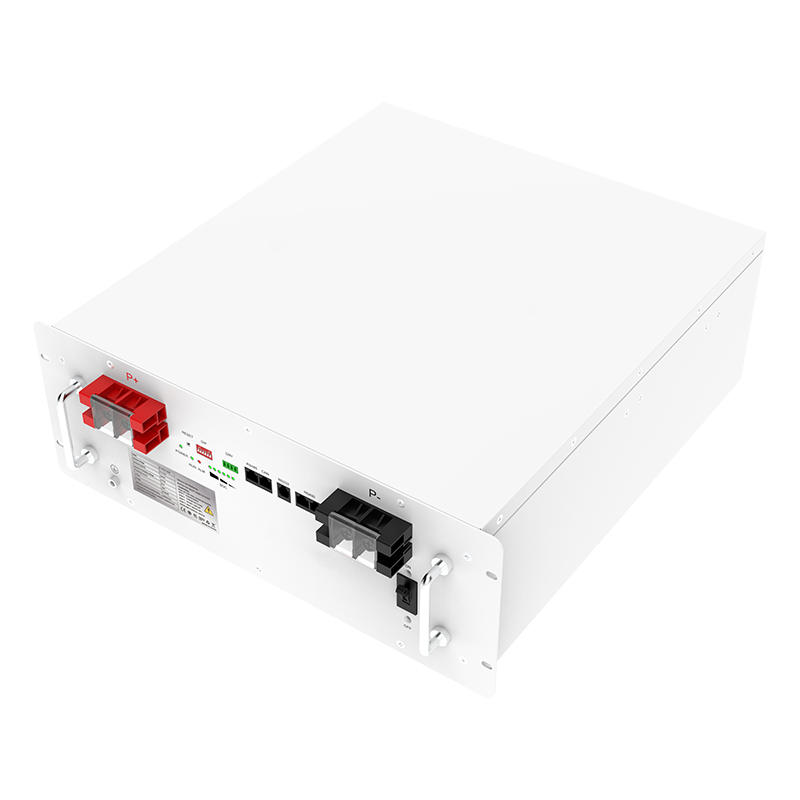

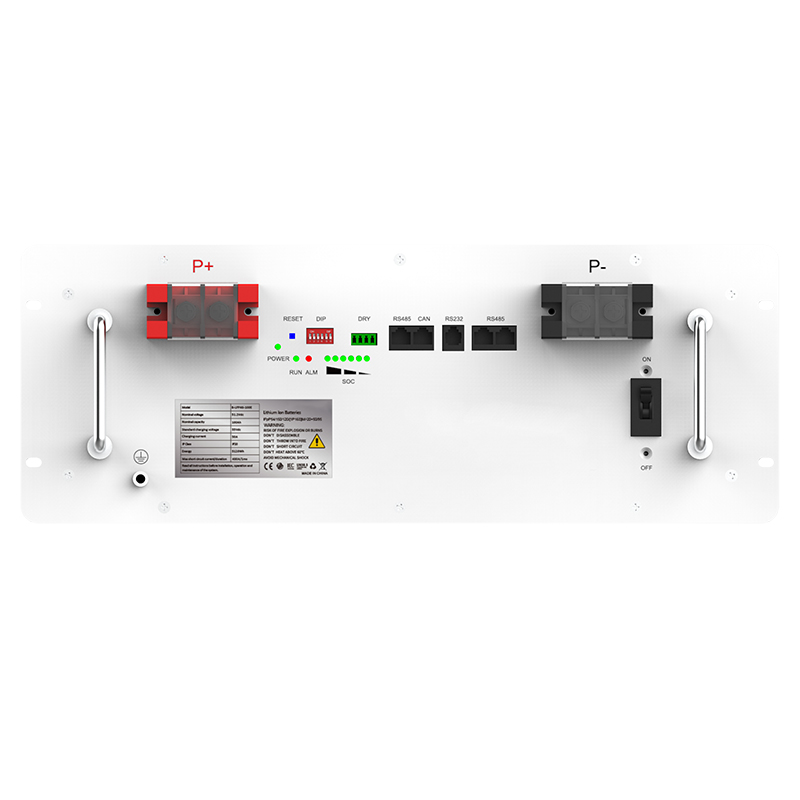

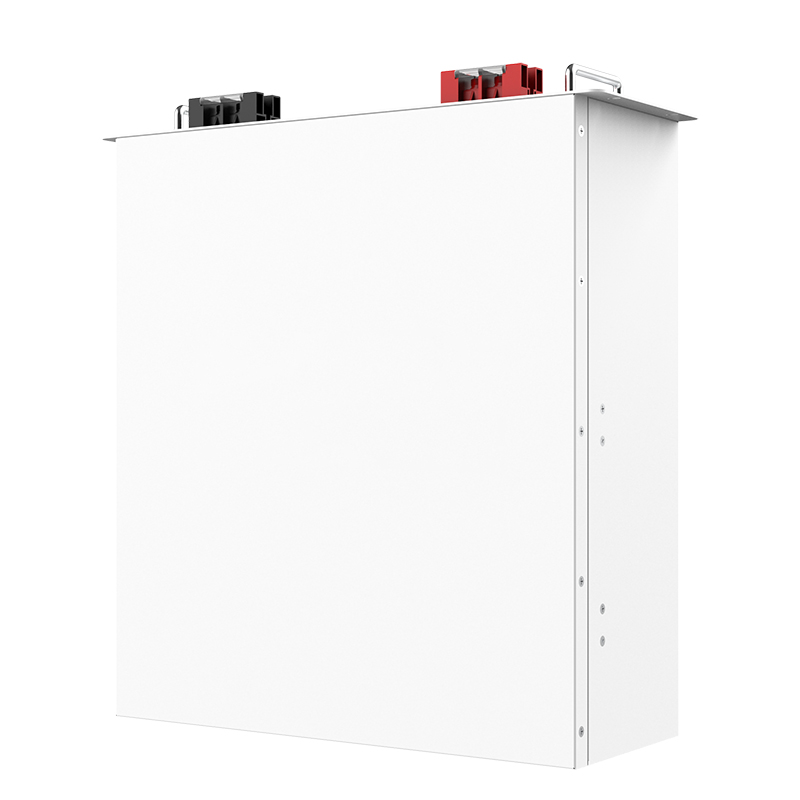

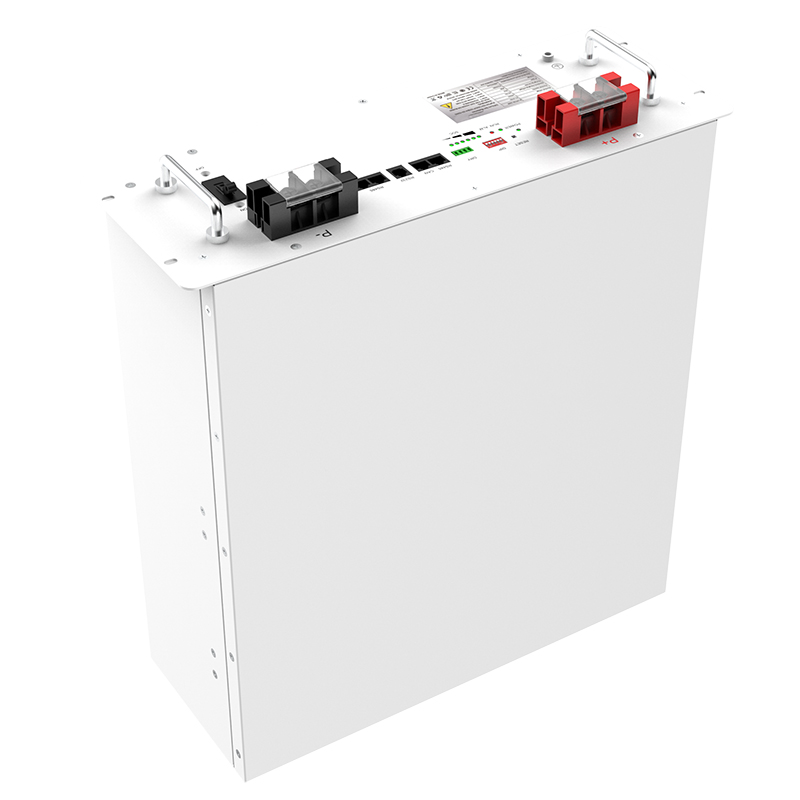

The ARCV-LFP48-100E is a high-performance stackable energy storage battery designed for residential, commercial, and industrial energy storage solutions. With a nominal voltage of 51.2V and a capacity of 5.12kWh, this battery utilizes a deep cycle prismatic LiFePO4 cell and advanced battery management systems (BMS). The modular, lightweight design ensures scalability, making it ideal for telecom base stations, commercial setups, and residential solar applications. Thanks to its efficient 99% energy conversion rate and low self-discharge rate, it provides reliable, long-lasting power storage.
KEY FEATURES
High Efficiency – 99% efficiency ensures maximum energy retention and long operational life.
Scalable Design – Modular design allows for easy expansion, suitable for various applications like home energy storage, industrial storage, and telecom installations.
Durability and Safety – Built with LiFePO4 chemistry and steel casing, this battery is engineered for long-term reliability with a robust design (IP22 rated for protection against dust and water).
Wide Temperature Range – Operates in extreme temperatures from -20°C to 60°C, ensuring reliable performance in various climates.
Advanced Battery Management System (BMS) – Offers smart monitoring and protection to enhance battery life and safety.
Fast Discharge Rates – Supports high discharge rates with a maximum continuous discharge rate of 5.12 kW, making it ideal for both high and moderate load applications.
Certified & Compliant – Certified by CEC, UL1973/CE, and ROHS 2.0, ensuring compliance with international standards for quality and safety.
Technical Specifications
| ARCV-LFP48-100E | |||
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | ||
| Nominal Voltage | 51.2V (16S1P) | Dimensions (L x W x H) | About 495*483*177 MM |
| Nominal Capacity | 100 AH | Weight | About 46 KG |
| Energy | 5120 Wh | Case Material | Steel |
| Efficiency | 99% | Cell Type | Prismatic |
| Self Discharge | ＜1% per Month | Chemistry | LiFePO4 |
| DISCHARGE SPECIFICATIONS | IP level | IP22 | |
| Max. Continuous Discharge Current | 100 A | CHARGE SPECIFICATIONS | |
| Peak Discharge Current | 100 A | Recommended Charge Current | 50 A |
| Standard Discharge Current | 50 A | Maximum Charge Current | 95 A |
| Voltage At End Of Discharge | 43.2 V | Recommended Charge Voltage | 56.2 V |
| Maximum Continuous Discharge Rate | 5.12 kW | Charge mode | CC/CV |
| TEMPERATURE SPECIFICATIONS | COMPLIANCE SPECIFICATIONS | ||
| Discharge Temperature | (-20~60℃) | Certifications | CEC, UL1973/CE, ROHS 2.0/IEC62619 |
| Charge Temperature | (0~55℃) | Shipping Certification | UN38.3 |
| Storage Temperature | (-20~55℃) | Shipping Classification | UN3480，CLASS9 |
FAQs
Q1: What is the ideal application for the ARCV-LFP48-100E battery?
A1: The ARCV-LFP48-100E battery is perfect for residential, commercial, and industrial energy storage solutions, including solar energy systems, off-grid applications, and telecom base stations.
Q2: How long does the battery last?
A2: With its high efficiency of 99% and low self-discharge rate of less than 1% per month, the ARCV-LFP48-100E is designed for long-term use, with many years of dependable performance.
Q3: What is the operating temperature range for this battery?
A3: The battery is designed to operate in a temperature range from -20°C to 60°C, with charge and storage temperatures between 0°C and 55°C, ensuring versatility in various environmental conditions.
Q4: How does the BMS (Battery Management System) enhance the battery’s performance?
A4: The advanced BMS helps monitor and protect the battery, ensuring optimal performance, safety, and longevity by controlling the charge/discharge cycles and preventing overvoltage or undervoltage situations.
Q5: Is the ARCV-LFP48-100E battery stackable?
A5: Yes, the B-LFP48-100E features a modular design that allows for stacking, making it scalable for a range of applications from residential to industrial energy storage needs.
Q6: What certifications does the ARCV-LFP48-100E battery have?
A6: The battery complies with CEC, UL1973/CE, ROHS 2.0, IEC62619 certifications, ensuring high safety and quality standards. It is also UN38.3 and UN3480 certified for safe shipping.
