PRODUCT OVERVIEW

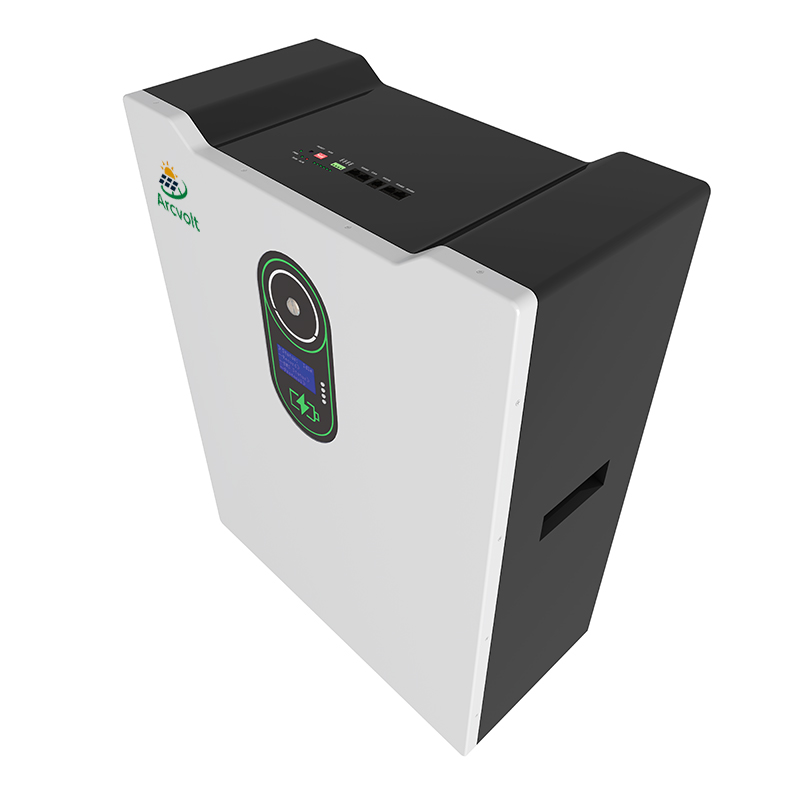

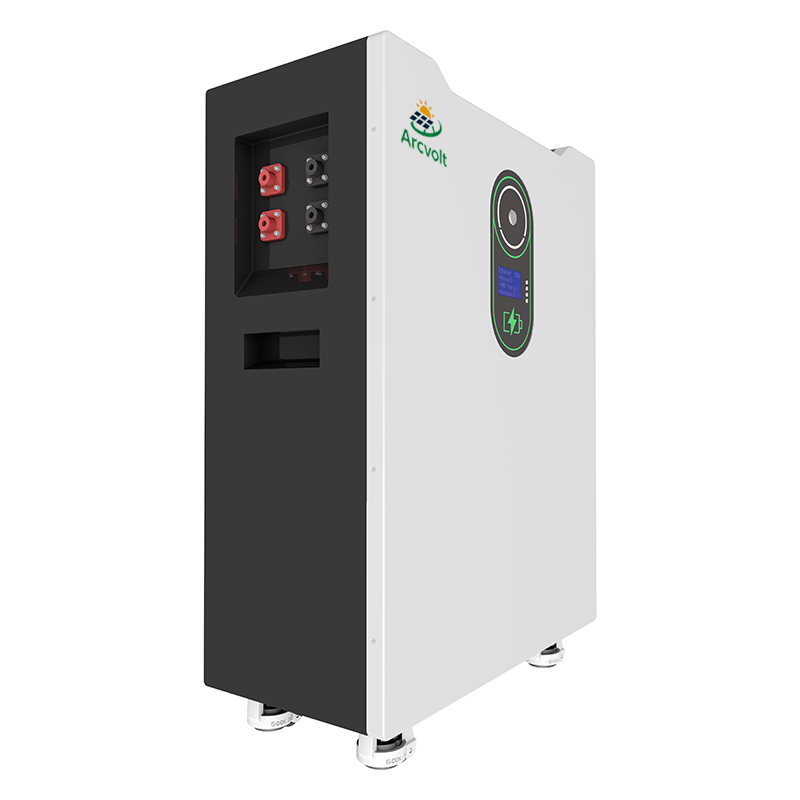

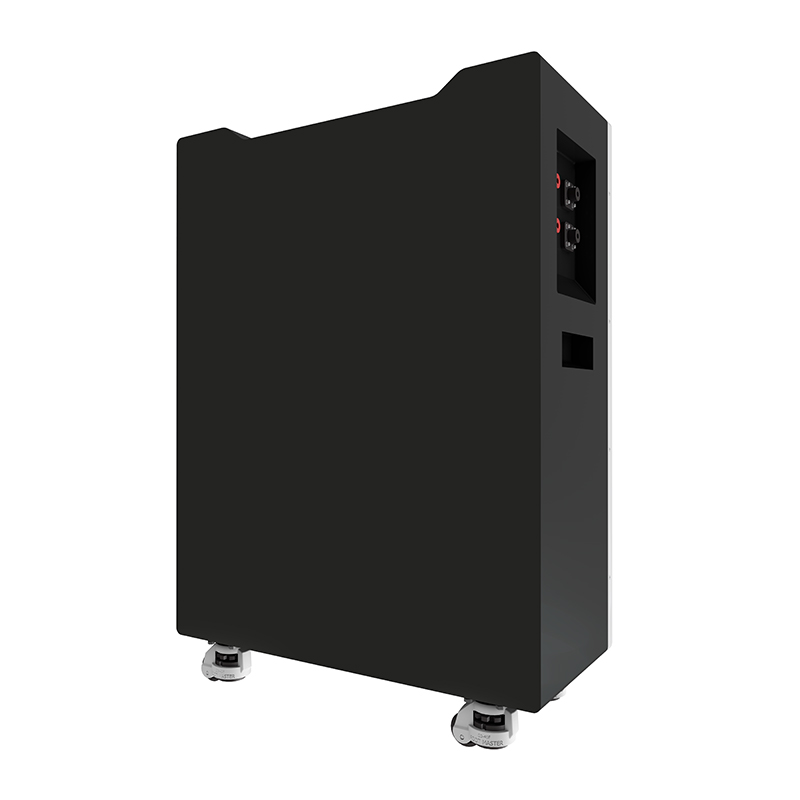

The ArcVolty floor-standing low voltage battery series delivers a reliable and flexible energy storage solution for homes, small businesses, and off-grid systems. Built with advanced LiFePO4 cells, this low voltage battery provides excellent safety, long cycle life, and outstanding efficiency for modern energy storage systems (ESS) and BESS applications.
The system runs at 51.2V and offers capacity options of 100Ah, 200Ah, and 280Ah—ideal for users who need a scalable home battery storage solution or a stable backup power system. With a compact metal shell, integrated BMS, LCD monitoring screen, and mobility wheels, this floor-standing battery supports quick installation and effortless operation in various environments.
ArcVolty designed this unit to work smoothly with leading inverter brands such as Growatt, GoodWe, Deye, LuxPower, and SRNE, giving installers and users maximum compatibility for hybrid and off-grid scenarios. Whether you want to build a residential ESS, stabilize daily solar energy usage, or expand storage for commercial loads, this robust low voltage LiFePO4 battery brings dependable performance with real long-term value.
KEY FEATURES

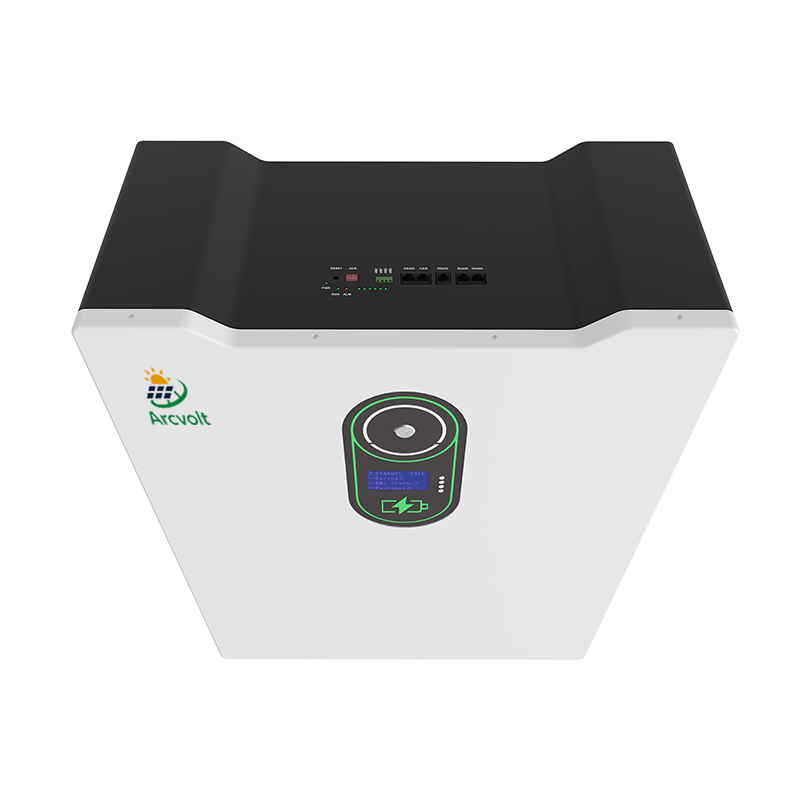

Real-time LCD Monitoring
The integrated LCD allows users to check energy storage status, SOC, system operation, and fault alerts in real time. The clear interface helps optimize load usage and track battery performance.
Grade-A LiFePO4 Battery Cells
Each model uses high-quality LiFePO4 cells known for excellent thermal stability, deep cycle capability, and long lifespan. The battery maintains ≥6000 cycles and ≥96% efficiency, making it ideal for long-term household or commercial ESS usage.
Durable Metal Shell with Enhanced Protection
The SPCC metal casing offers outstanding strength, water resistance, and explosion-proof performance. It protects internal components from impact, humidity (65±20%RH), and wide temperature variations.
External Main Switch for Safety & Energy Savings
A convenient main power switch reduces standby consumption while improving operational safety. Users can isolate the battery instantly during installation or maintenance.

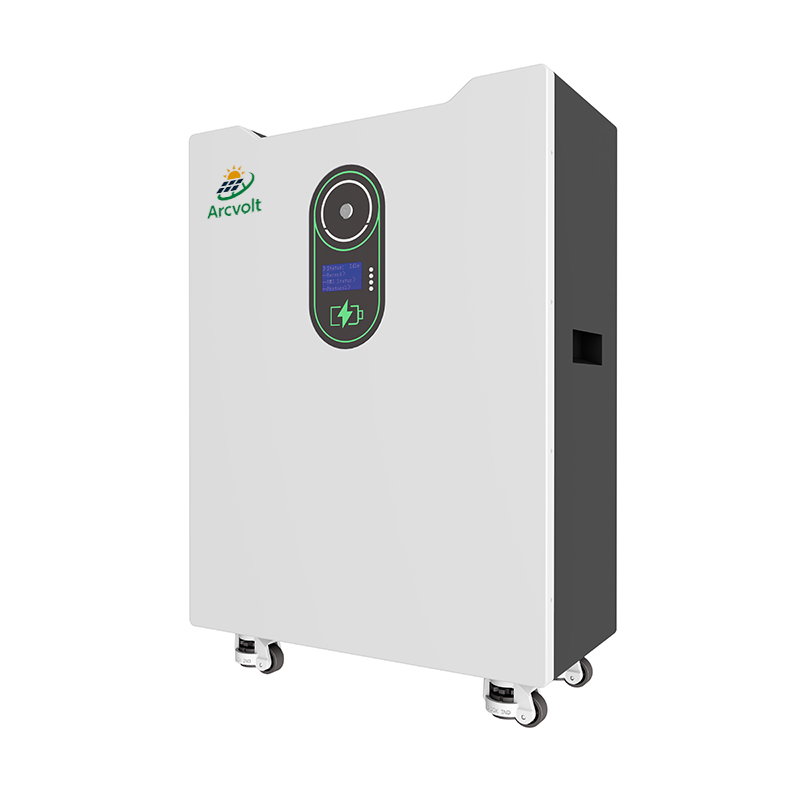

Easy Mobility with Reinforced Bottom Wheels
The floor-standing design includes durable mobility wheels, allowing installers to move the unit easily across different rooms, utility areas, or commercial sites.
Intelligent BMS Built Inside
The integrated BMS includes protections for over-voltage, over-current, over-load, over-temperature, and short-circuit events. It ensures stable performance with continuous discharge currents up to 100A and peak discharge at 200A (3S).
Wide Load Compatibility

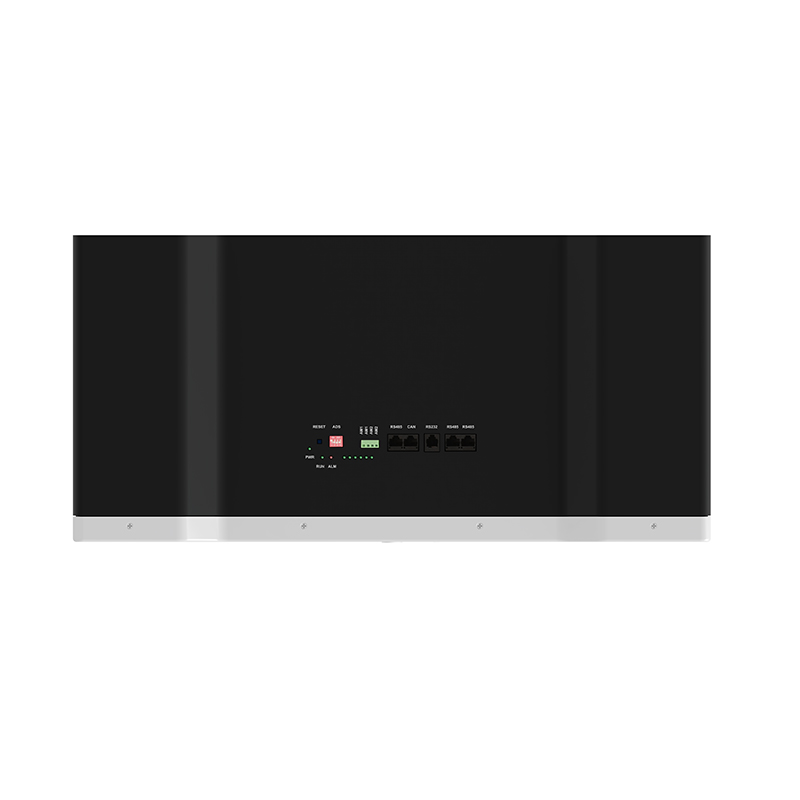

With a 51.2V nominal voltage and multiple communication protocols (RS485/CAN), the battery connects smoothly to hybrid, off-grid, and inverter-charger systems. It covers a broad load range and supports various residential and commercial applications.
Parallel Expansion Up to 15 Units
Users can scale storage capacity easily by paralleling up to 15 modules, making the system adaptable to large homes, commercial operations, and solar-plus-storage projects.
Technical Specifications
| Model | M16S100BL-F | M16S200BL-F | M16S280BL-V | |
| Basic Characteristics | Nominal Voltage | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 100Ah | 200Ah | 280Ah | |
| Efficency | ≥96% | ≥96% | ≥96% | |
| lnner Resistance | 50mΩ | 50mΩ | 50mΩ | |
| Cell Type | LiFePO4 | LiFePO4 | LiFePO4 | |
| Charging Characteristics | Charge Voltage | 58.4V | 58.4V | 58.4V |
| Standard Charging Current | 20A | 40A | 50A | |
| Max.Continuous Charging Current | 100A | 100A | 100A | |
| Discharge Characteristics | Standard Discharge Current | 20A | 40A | 50A |
| Continuous Discharge Current | 100A | 100A | 100A | |
| Peak Discharge Current | 200A(3S) | 200A(3S) | 200A(3S) | |
| Discharge Cut-off Voltage | 42V | 42V | 42V | |
| Environmental Requirements | Charge Temperature Range | 0~60°C | 0~60°C | 0~60°C |
| Discharge Temperature Range | -20°C~65°C | -20°C~65°C | -20°C~65°C | |
| Storage Temperature Range | -5~40°C | -5~40°C | -5~40°C | |
| Storaqe Humidity | 65±20％HR | 65±20％HR | 65±20％HR | |
| Mechanical Characteristics | Size(LxWxH) | 580×450×183mm | 580×450×183mm | 580×450×183mm |
| Package Size (L×W×H) | 670×540×285mm | 750×910×400mm | 750×910×495mm | |
| Shell Material | SPCC | SPCC | SPCC | |
| Net Weight | 44kg | 87kg | 113kg | |
| Gross Weight | 46kg | 102kg | 128kg | |
| Package Method | 1pcs per carton | 1pcs per carton | 1pcs per carton | |
| Others Characteristics | Cycle Life | ≥6000 times | ≥6000 times | ≥6000 times |
| Self Discharge | 2% per month | 2% per month | 2% per month | |
| SOC Indication | LED Light& LCD Screen | LED Light& LCD Screen | LED Light& LCD Screen | |
| Communication Protocol | RS485/CAN | RS485/CAN | RS485/CAN | |
| Matching Inverter | Growatt, Goodwe, Deye, Luxpower, SRNE etc | |||
We are a leading innovator and manufacturer in lithium battery technology, dedicated to engineering and manufacturing high-quality LiFePO4 solar batteries and power systems. Our core business involves the complete lifecycle of product development, from initial design to final production of dependable lithium battery packs. We proudly serve diverse sectors with customized solutions for energy storage, critical backup power systems, and compatible inverters and solar panels.
Based on automated production technology, Arcvolt are able to meet our customers' product needs quickly. However, the exact lead time depends on the quantity and the season you place the order.
Usage scenario: wall-mounted batteries, rack-mounted batteries, and stacked batteries. Voltage: 48V or 51.2V batteries, low/high voltage batteries Application: Residential storage batteries, industrial and commercial energy storage batteries.
While the typical home system uses 2 or 3 batteries, the perfect number for you is a personal choice. It all comes down to what you want to power during a grid outage and for how long. Do you need to run just the essentials or your whole house?
Yes, going completely off-grid is possible, but it's a significant step beyond standard solar with battery backup. A true off-grid system requires a much larger solar array and battery bank to power your home 24/7, making it a substantial investment. You also need a reliable backup source, like a generator, for days without sun. It's important to note that in North Carolina, disconnecting a home from the utility grid can be a complex process.
We accept EXW,FOB,CFR,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Absolutely. Our in-house design team specializes in OEM and ODM projects to bring your brand's vision to life. Simply provide us with your concept, high-resolution logo, and any text or images you'd like to include. We will then create a professional design proof for your final approval before we proceed.
Certifications are a key part of our pre-production checklist. We start by confirming with you which certifications are needed. These requirements are then integrated into the project timeline to ensure completion before shipment, and are formally documented in the signed agreement.
We offer lifetime technical support, with our engineers available 24/7 to provide prompt online assistance.
Yes, most of Arcvolt's inverters are designed to be scalable, meaning your system can grow with your needs. However, it's something that requires planning. Before adding more panels, it's essential to confirm that your current inverter can handle the additional power. We always recommend discussing your future plans with a professional to ensure your initial system is future-ready.
It depends on whether you have batteries. For Solar + Battery systems: A hybrid inverter is essential. It seamlessly manages power from panels and batteries in a single unit. For Solar-Only systems: Traditional inverters (like string or microinverters) are an option. The main advantage of a hybrid inverter is that it eliminates the need for a separate charge controller, making for a cleaner and more efficient installation.
Selecting the right inverter is one of the most important decisions you'll make for your solar project. While technical specifications matter, the long-term value comes from the manufacturer. Arcvolt advise customers to look beyond the data sheet and assess the company on these five critical points: their warranty, quality control standards, customer service responsiveness, installation support, and competitive pricing.
Generally, you want the inverter's size to match your solar array's power output. So, if you're installing a 5,000-watt solar system, you'll need an inverter of at least 5,000 watts to handle the load.
Yes, samples are available upon request as part of the qualification process for bulk orders. Please reach out to a member of our customer service team to discuss your specific requirements and they will assist you with the next steps.
Think of it as your personal energy bank. During the day, it saves up all the extra, unused power your solar panels generate. Then, you can draw from that stored energy whenever you need it—at night, during a power outage, or to avoid high-cost peak hours. For homeowners, this means energy independence and peace of mind. For businesses, it's a powerful tool to slash electricity bills.
Smart inverters are central to a system's reliability. Our inverter provide a constant stream of performance data, giving you a real-time view of your entire solar array. If a problem arises, the inverter's diagnostic tools can pinpoint the exact issue, which significantly speeds up repairs. This intelligent monitoring is key to preventing small problems from becoming big ones and guarantees the consistent, reliable operation you expect.
MPPT is a crucial technology that ensures you're not wasting sunlight. Because sun conditions are always changing, there is always a single, optimal point where your solar panels operate most efficiently. MPPT is the brain that constantly scans and adjusts the system to find and stay locked onto that "maximum power point." This guarantees you are harvesting the most energy possible from your panels at any given moment.
It's a question of priorities, and the logical first step is always generation. You have to make power before you can store it. Solar panels directly reduce your utility bills by producing electricity. Batteries give you control over when you use the excess electricity you've already made. We help our customers design a system that maximizes their solar panel array first, as this delivers the biggest and fastest return on investment.
A grid-tied inverter is the standard type used to reduce your electricity bills with solar. It safely connects your solar system to the utility's grid, allowing you to seamlessly feed any surplus power you produce back to the utility. In return, you receive credits on your bill for that energy, a process known as net metering. For safety, these inverters automatically shut down during a power outage.
The exact amount of power you generate is unique to your home and depends on your system's size, your roof's orientation, and how much direct sun you get. However, to give you a real-world idea, our typical 6kW home system can produce around 30kWh of electricity on a clear, sunny day. For most households, that's more than enough to cover all of your energy needs for a full 24 hours.
