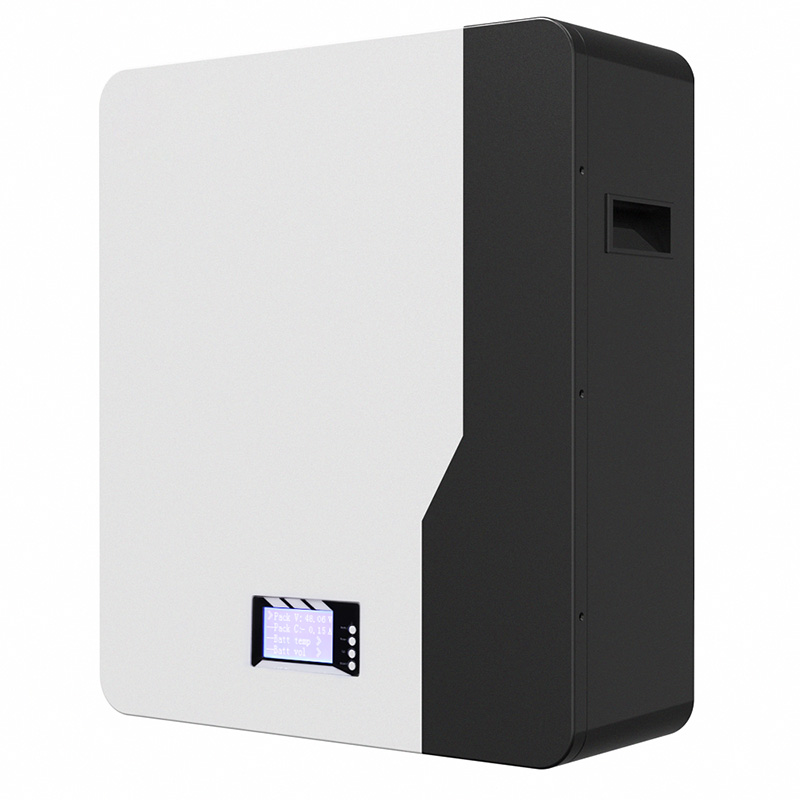

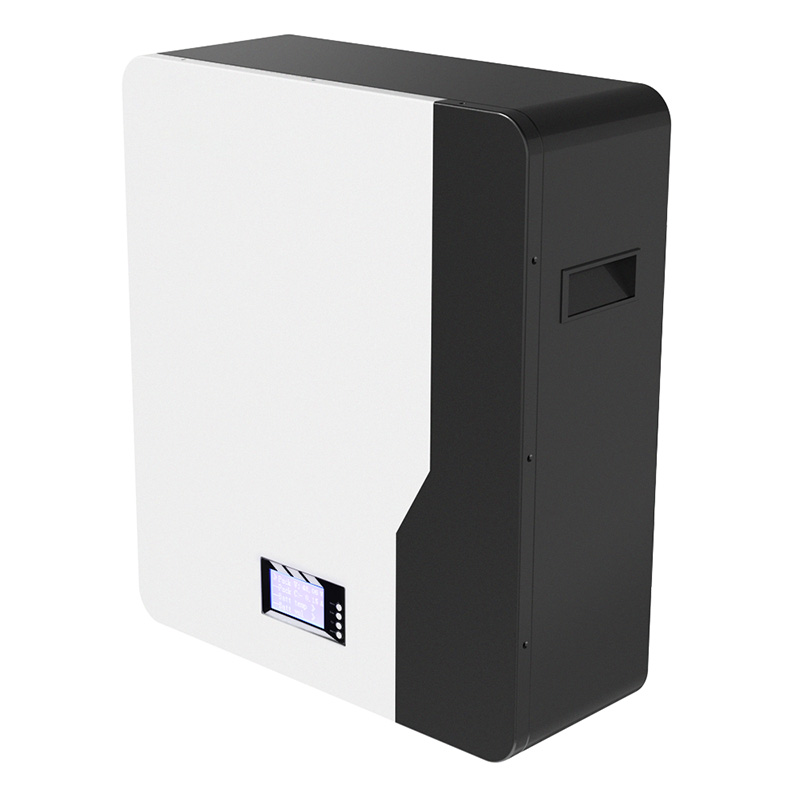

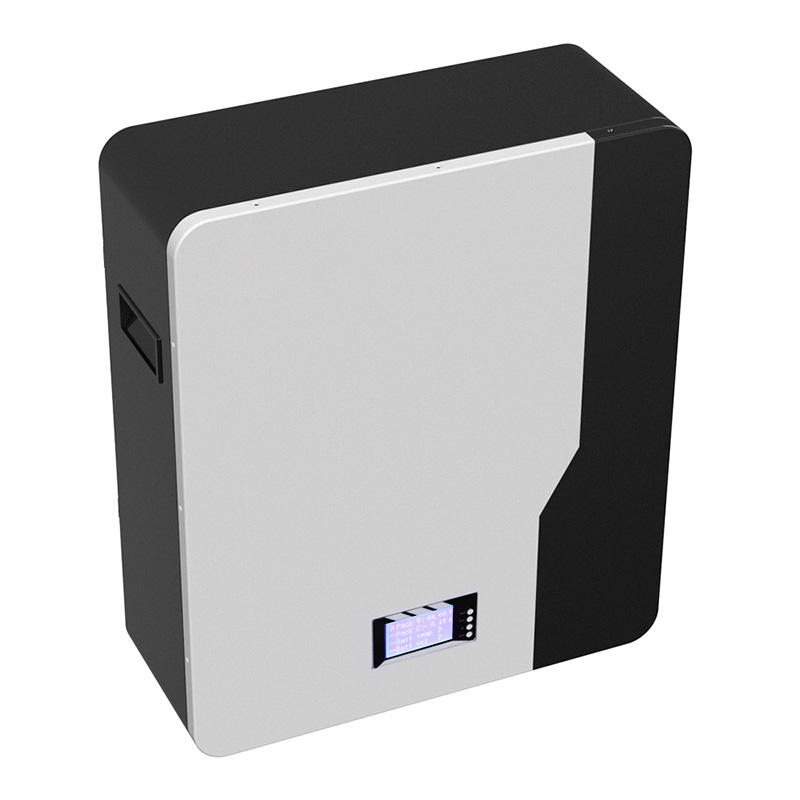

The wall Mounted Battery(ARCV51.2V100-W) stands as a premier energy solution, meticulously engineered to serve as the heart of a resilient home battery backup system. The low voltage battery maintains a consistent 51.2 V nominal voltage, ensuring stable and reliable output for electronics and major appliances alike. This powerful solar battery storage packs a substantial 5.12 kWh of nominal energy, supported by a 100 Ah nominal capacity, creating a deep reservoir of power for all your residential or off-grid applications.
2.The Advanced LiFePO4 Core: Dependable Service
The advanced LiFePO₄ battery inside ARCV51.2V100-W guarantee ≥6,000 deep cycles, 2 % self-discharge per month and ≥96 % round-trip efficiency, ensuring its dependable service with minimal capacity loss, making the battery an ideal choice for emergency backup or seasonal properties.
This high efficiency maximizes your energy self-sufficiency, leading to significant reductions in your electricity bills and a more sustainable energy footprint for your home or business.
Perfect for daily solar self-consumption, commercial, or industrial application—set it and forget it for years.
3.A Safer, User-Friendly Package with Integrated Protection
Safety and usability are fundamental principles in the design of the ARCV51.2V100-W. Integrated within the unit is a sophisticated Battery Management System (BMS).
This BMS provides active, real-time protection against over-voltage, over-load, and over-temperature conditions, safeguarding both the battery and your property.
The enclosure is designed with smooth, rounded edges to prevent accidental injury from collisions. An external main switch is included to completely cut power consumption, enhancing safety during installation or system maintenance.
4.Flexible and Scalable Design for Effortless Installation
The wall mounted Battery(ARCV51.2V100-W) provides outstanding installation flexibility, designed to adapt to a wide array of spaces and evolving power demands.

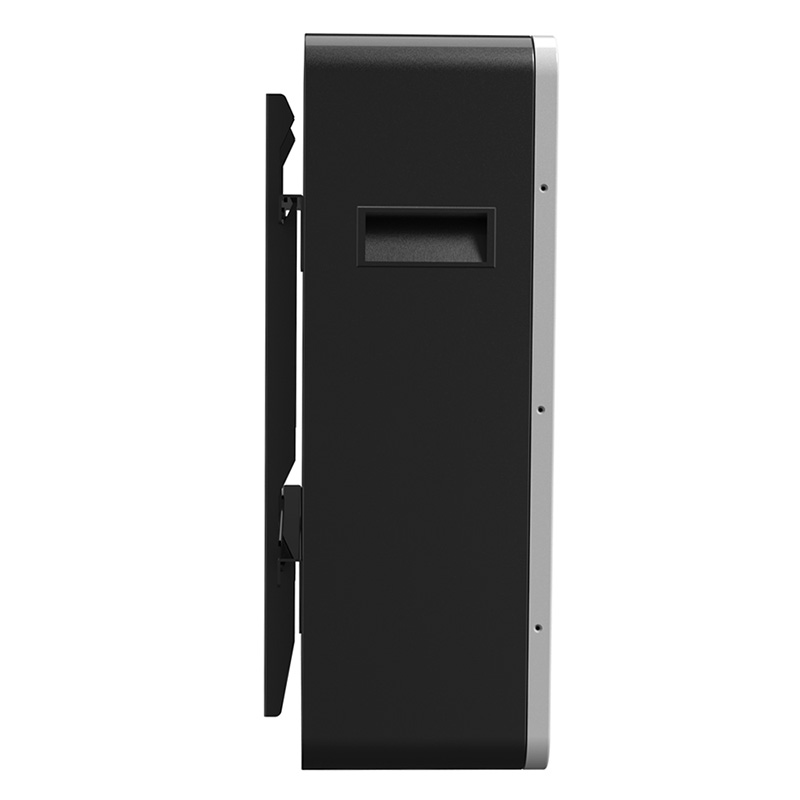

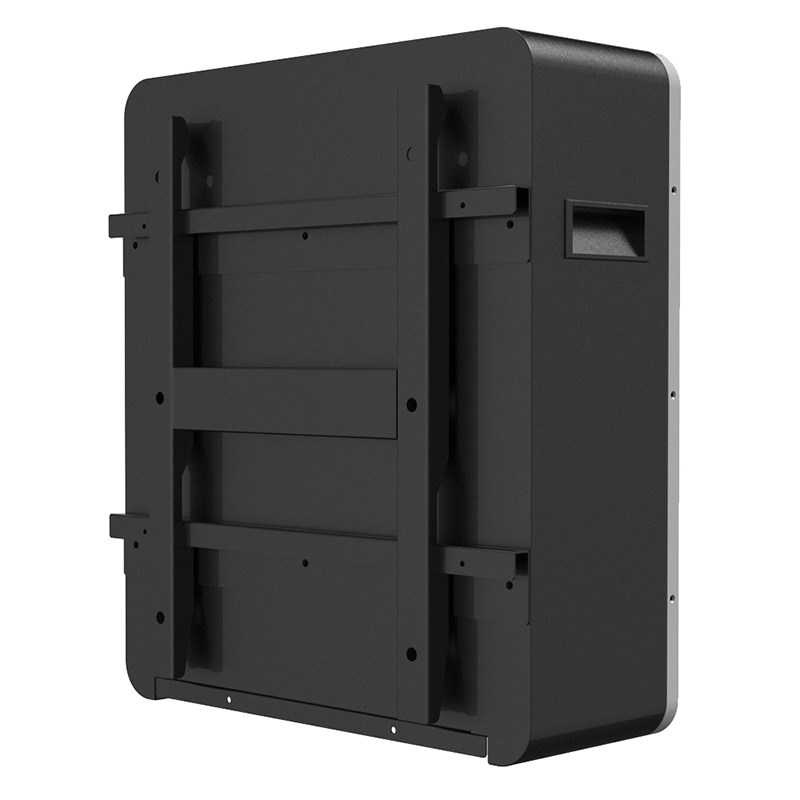

Included the battery with robust wall mount brackets, enabling a secure, space-saving installation. Its compact 445 × 170 × 560 mm(L*W*H) footprint at 43 kg net weight fits garages, balconies or utility rooms.
You can connect up to 15 modules in parallel to expand your solar battery storage. Whether you are creating a small home battery backup system for an apartment or designing a comprehensive micro-grid for a large property, the ARCV51.2V100-W offers a simple, modular, and cost-effective pathway to meet your growing energy needs.
5.Real-Time Smart Monitoring and All-Climate Operation

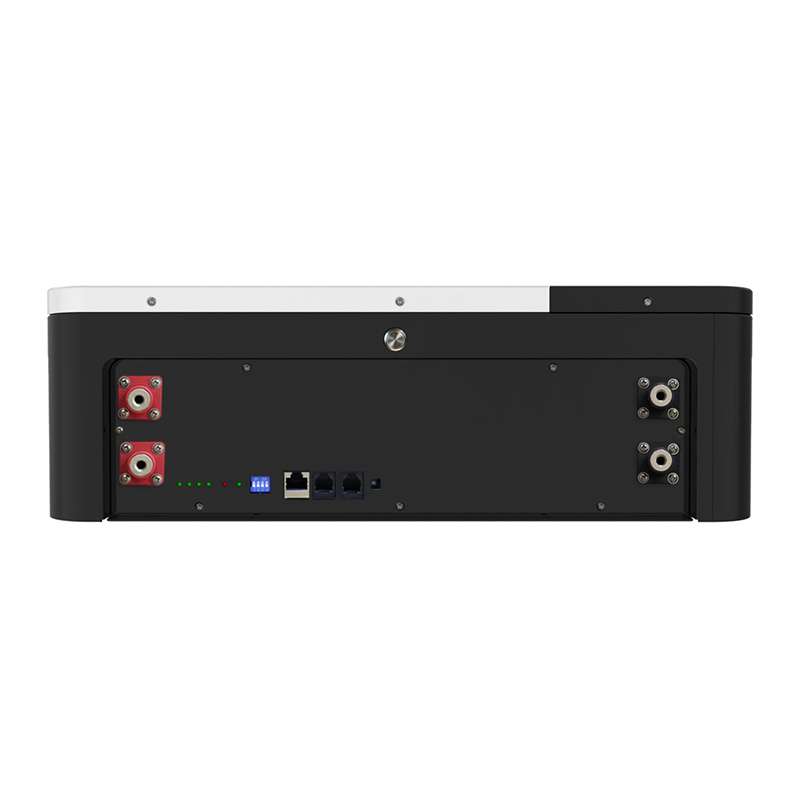

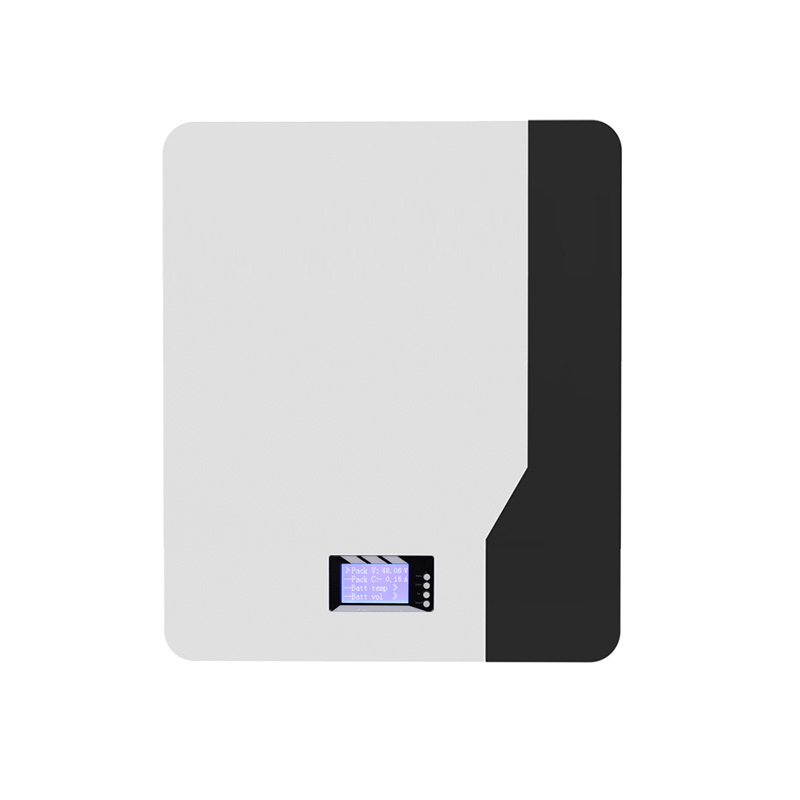

Equipped with both RS485 and CAN communication protocols, the front features a clear and intuitive LED light and LCD screen, allowing for quick and easy monitoring.
This low voltage battery is engineered to perform reliably across diverse climates and conditions. The ARCV51.2V100-W has a wide operational temperature range, supporting charging from 0°C to 60°C and discharging from -10°C to 65°C.
This robust engineering ensures your solar battery storage system will function dependably whether you are, providing consistent power everywhere you do business.
Parameters __Home Battery Backup System(LiFePO4 Battery)
| Parameters __Home Battery Backup System(LiFePO4 Battery) | |||
| Model | ARCV 51.2V100-W | Model | ARCV 51.2V100-W |
| Nominal Voltage | 51.2V | Discharge Temperature Range | -10°C~65°C |
| Nominal Capacity | 100Ah | Storage Temperature Range | -5~40°C |
| Efficency | ≥96% | Storaqe Humidity | 65±20％HR |
| lnner Resistance | 10mQ | Size(L*W*H) | 445*170*560mm |
| Cell Type | LiFePO4 | Package Size (L*W*H) | 632*512*255mm |
| Charge Voltage | 58.4V | Shell Material | SPCC |
| Standard Charging Current | 20A | Net Weight | 43kg |
| Max.Continuous Charging Current | 100A | Gross Weight | 45kg |
| Standard Discharge Current | 20A | Package Method | 1pcs per carton |
| Continuous Discharge Current | 100A | Cycle Life | ≥6000 times |
| Peak Discharge Current | 200A(3S) | Self Discharge | 2% per month |
| Discharge Cut-off Voltage | 42V | SOC Indication | LED Light& LCD Screen |
| Charge Temperature Range | 0~60°C | Communication Protocol | RS485/CAN |
PRODUCTION LINES
OUR EXHIBITION
We are a leading innovator and manufacturer in lithium battery technology, dedicated to engineering and manufacturing high-quality LiFePO4 solar batteries and power systems. Our core business involves the complete lifecycle of product development, from initial design to final production of dependable lithium battery packs. We proudly serve diverse sectors with customized solutions for energy storage, critical backup power systems, and compatible inverters and solar panels.
Based on automated production technology, Arcvolt are able to meet our customers' product needs quickly. However, the exact lead time depends on the quantity and the season you place the order.
Usage scenario: wall-mounted batteries, rack-mounted batteries, and stacked batteries. Voltage: 48V or 51.2V batteries, low/high voltage batteries Application: Residential storage batteries, industrial and commercial energy storage batteries.
While the typical home system uses 2 or 3 batteries, the perfect number for you is a personal choice. It all comes down to what you want to power during a grid outage and for how long. Do you need to run just the essentials or your whole house?
Yes, going completely off-grid is possible, but it's a significant step beyond standard solar with battery backup. A true off-grid system requires a much larger solar array and battery bank to power your home 24/7, making it a substantial investment. You also need a reliable backup source, like a generator, for days without sun. It's important to note that in North Carolina, disconnecting a home from the utility grid can be a complex process.
We accept EXW,FOB,CFR,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Absolutely. Our in-house design team specializes in OEM and ODM projects to bring your brand's vision to life. Simply provide us with your concept, high-resolution logo, and any text or images you'd like to include. We will then create a professional design proof for your final approval before we proceed.
Certifications are a key part of our pre-production checklist. We start by confirming with you which certifications are needed. These requirements are then integrated into the project timeline to ensure completion before shipment, and are formally documented in the signed agreement.
We offer lifetime technical support, with our engineers available 24/7 to provide prompt online assistance.
Yes, most of Arcvolt's inverters are designed to be scalable, meaning your system can grow with your needs. However, it's something that requires planning. Before adding more panels, it's essential to confirm that your current inverter can handle the additional power. We always recommend discussing your future plans with a professional to ensure your initial system is future-ready.
It depends on whether you have batteries. For Solar + Battery systems: A hybrid inverter is essential. It seamlessly manages power from panels and batteries in a single unit. For Solar-Only systems: Traditional inverters (like string or microinverters) are an option. The main advantage of a hybrid inverter is that it eliminates the need for a separate charge controller, making for a cleaner and more efficient installation.
Selecting the right inverter is one of the most important decisions you'll make for your solar project. While technical specifications matter, the long-term value comes from the manufacturer. Arcvolt advise customers to look beyond the data sheet and assess the company on these five critical points: their warranty, quality control standards, customer service responsiveness, installation support, and competitive pricing.
Generally, you want the inverter's size to match your solar array's power output. So, if you're installing a 5,000-watt solar system, you'll need an inverter of at least 5,000 watts to handle the load.
Yes, samples are available upon request as part of the qualification process for bulk orders. Please reach out to a member of our customer service team to discuss your specific requirements and they will assist you with the next steps.
Think of it as your personal energy bank. During the day, it saves up all the extra, unused power your solar panels generate. Then, you can draw from that stored energy whenever you need it—at night, during a power outage, or to avoid high-cost peak hours. For homeowners, this means energy independence and peace of mind. For businesses, it's a powerful tool to slash electricity bills.
Smart inverters are central to a system's reliability. Our inverter provide a constant stream of performance data, giving you a real-time view of your entire solar array. If a problem arises, the inverter's diagnostic tools can pinpoint the exact issue, which significantly speeds up repairs. This intelligent monitoring is key to preventing small problems from becoming big ones and guarantees the consistent, reliable operation you expect.
MPPT is a crucial technology that ensures you're not wasting sunlight. Because sun conditions are always changing, there is always a single, optimal point where your solar panels operate most efficiently. MPPT is the brain that constantly scans and adjusts the system to find and stay locked onto that "maximum power point." This guarantees you are harvesting the most energy possible from your panels at any given moment.
It's a question of priorities, and the logical first step is always generation. You have to make power before you can store it. Solar panels directly reduce your utility bills by producing electricity. Batteries give you control over when you use the excess electricity you've already made. We help our customers design a system that maximizes their solar panel array first, as this delivers the biggest and fastest return on investment.
A grid-tied inverter is the standard type used to reduce your electricity bills with solar. It safely connects your solar system to the utility's grid, allowing you to seamlessly feed any surplus power you produce back to the utility. In return, you receive credits on your bill for that energy, a process known as net metering. For safety, these inverters automatically shut down during a power outage.
The exact amount of power you generate is unique to your home and depends on your system's size, your roof's orientation, and how much direct sun you get. However, to give you a real-world idea, our typical 6kW home system can produce around 30kWh of electricity on a clear, sunny day. For most households, that's more than enough to cover all of your energy needs for a full 24 hours.
